Principle of CAD/CAM/CAD
by Kunwoo Lee

Hardcover: 640 pages
Publisher: Prentice Hall;
1st edition (January 20, 1999)
ISBN: 0201380366

If you do not have MALAB on your computer, download the package from Carnegie Mellon’s Computing Service’s web page

Virtual Reality Modeling Language 2

   Introduction:  http://en.wikipedia.org/wiki/VRML

Viewing VRML files

• Internet Explore with the cortona VRML plug-in  (Windows only)

• Other plug-ins and viewers (for Mac and Linux)

Sample VRML2 (or VRML97) Objects

• Sample file from PS1 "canvas.wrl."

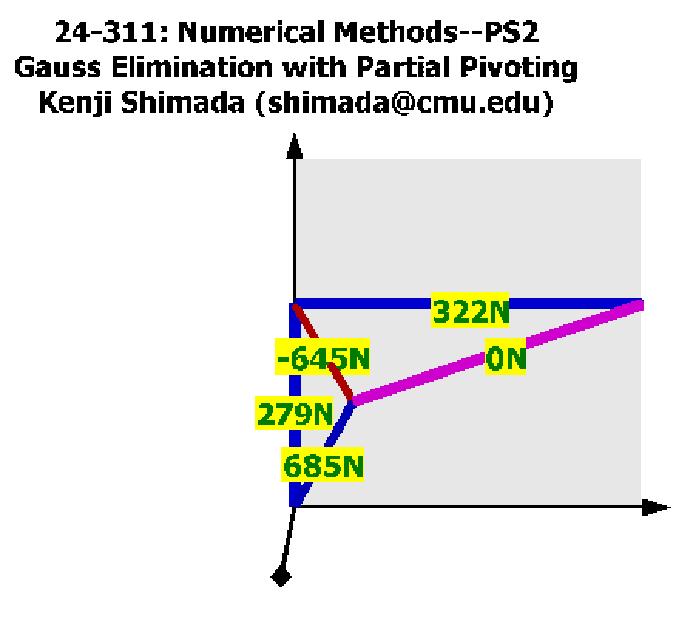

• More sample files from Problem Sets (click on the pictures below)




• Fun objects:   Bus  |  Coffee Maker  |  Snowman

Printing out VRML image on Windows and Unix/X-Window

Windows users can print out your VRML image in the following way:

• make the viewer window active (by clicking on anywhere on the viewer window)

• type [Alt]+[PrintScreen] -- this will capture the screen image to the clipboard

• paste the image on the clipboard into a Word document, PowerPoint, or any image/graphics editors -- this can be done by [Ctrl]+[v], or by the "paste" command under the "edit" menu.

Unix/X-Window users can use the "xv" command to capture a screen image.

VRML2 (or VRML97) Language Specification

• Language specification: http://www.web3d.org/x3d/specifications/vrml/ISO-IEC-14772-VRML97/

More VRML2 (or VRML97) Information

• Web3D Consortium http://www.web3d.org/x3d/vrml/
