About the Moldable Mask

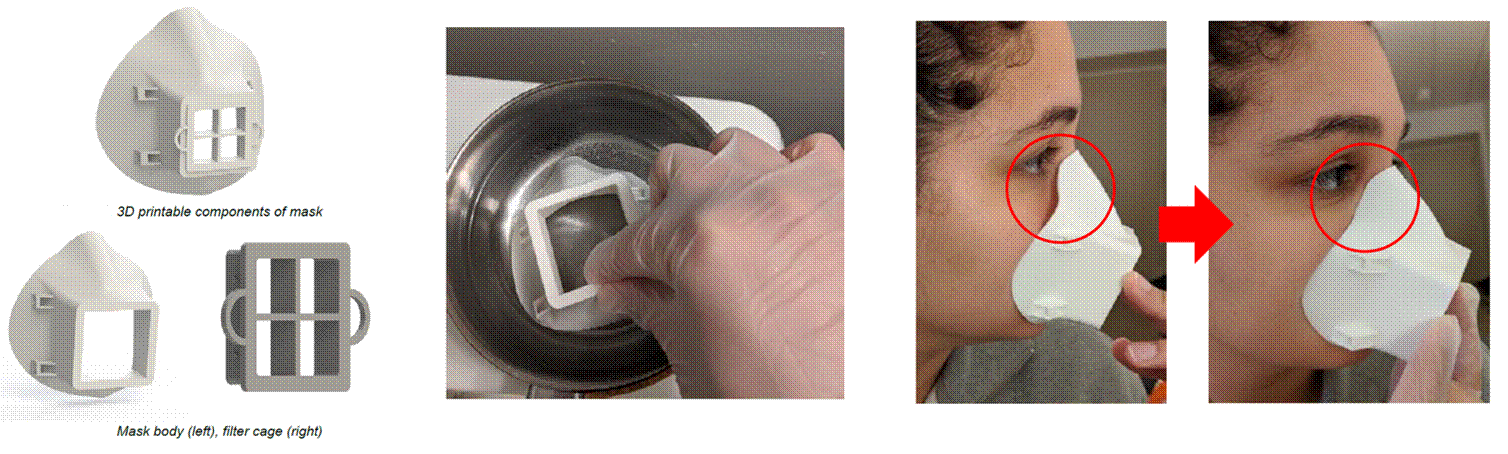

The Moldable Mask is a 3D printable mask that can be molded to the user’s face using hot water. It is intended for use during the COVID-19 pandemic in cases where there is a shortage of personal protective equipment (PPE) such as N95 respirator masks or surgical masks.



The Moldable Mask was developed by a Ph.D. student, Erica Martelly, and her academic advisor, Professor Kenji Shimada, at Carnegie Mellon University in April 2020. The mask design was submitted to AmericaMakes’ Mask Design Challenge and was selected as one of the top two designs. Two students, Charles Li and Alana Toy, joined the team in May 2020 to further improve the design.





Download Mask STL File

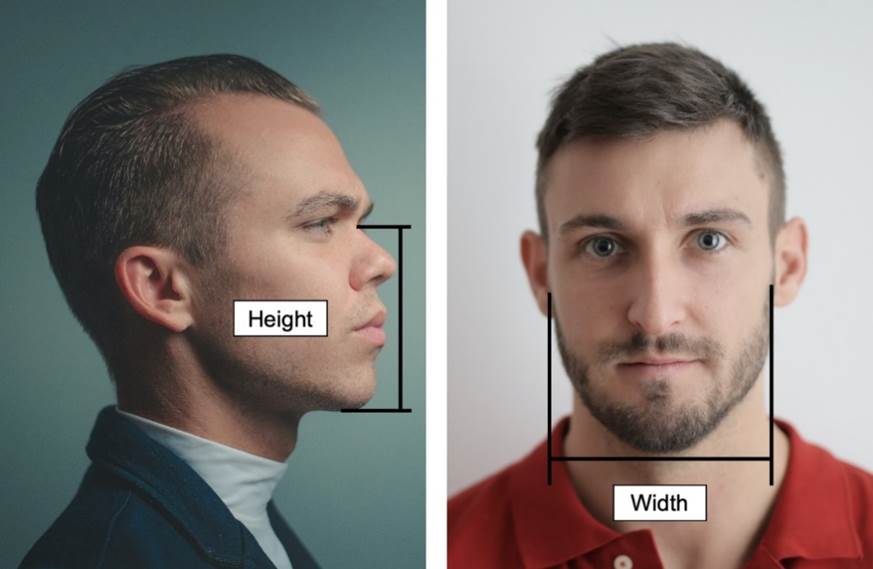

Start by measuring your face to determine the appropriate size. Measure the height of your face by finding the distance from the bridge of your nose (between your eyes) to the bottom of your chin. Measure the width of your face by finding the points on each side of your face where your jaw begins. You can find this by opening and closing your mouth and finding the movement point. Measurements do not have to be perfectly accurate.



A person looking at the camera

Description automatically generated



Once you have your face measurements, use the chart below to determine which size is best for you. The filter cage is the same for all masks.





Width (mm)

Height (mm)

Shorter than 110mm

Narrower than 135mm

Wider than 135mm

Small

Small - Wide

110mm – 120mm

Narrower than 140mm

Wider than 140mm

Medium

Medium - Wide

Taller than 120mm

Narrower than 145mm

Larger than 145mm

Large

Large - Wide



You may also download all the STL files as a single zip file (9.4MB): Download all the mask STL files.





Download Filter Cage STL File

Download Filter cage STL file.

(The filter cage is same for all the mask sizes: Small, Small-Wide, Medium, Medium-Wide, Large, Large-Wide).



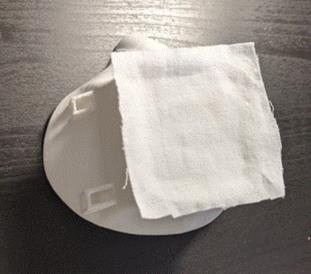

A picture containing indoor, sitting, small, white

Description automatically generated  A picture containing indoor, table, sitting, white

Description automatically generated  A picture containing indoor, white, small, sitting

Description automatically generated





Assembly Instructions

Download Assembly Instructions

Please read the instructions carefully prior to the usage of the Moldable Mask.  The instructions include:
(1) Appropriate usage criteria

(2) Device overview

(3) Manufacturing instructions

(4) Point of Care Assembly and Cleaning Instructions

(5) Appendix A: Recommended Disinfectants and Sterilization Methods

(6) Appendix B: Recommended Materials

(7) Appendix C: Materials in Direct Contact with Skin





Printing the Moldable Masks



If you do not have access to a 3D printer and would like to have some masks printed and shipped to you, please contact:



Matt White

Application/Sales Engineer

Email: matt.white A picture containing drawing

Description automatically generated americanadditive.com

American Additive Manufacturing

www.americanadditive.com





LEGAL DISCLAIMER:



This is NOT an FDA approved device. Please see the FDA guidance here.



The information presented here is intended to assist the general public during the current global pandemic related to COVID-19 and the related nationwide shortage of personal protective equipment.  This mask design is not intended to replace standard protective equipment such as N-95 masks or surgical masks when that equipment is available. The use of these 3D printed masks has not been fully tested and has not been approved by federal or state authorities.  Carnegie Mellon University, Erica Martelly, Charles Li, Alana Toy, Dr. Kenji Shimada or anyone associated with the Moldable Mask do not assume any liability and make no representations, warranties, or guarantees regarding the safety, efficacy, or appropriate use of these masks in any particular situation. Each individual should test their mask prior to relying on them for protection. Use of this information for any purpose is at the maker’s and user’s own risk.
