Problem 6 : Pro/Engineer, ANSYS and Pro/Manufacturing

Problem

The problem consists of three main parts.
The first step is to model the pedal crank using Pro/Engineer. Then import the file to be analyzed in ANSYS. Then use Pro/Manufacturing for machining the model.

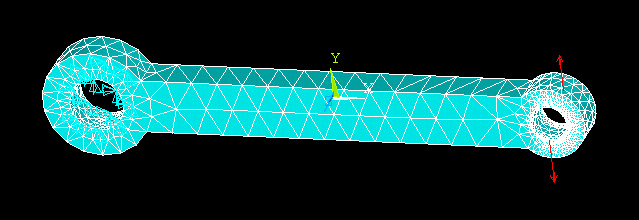

Once the model is finished, the model is imported into a .stl file, which is readible by ANSYS. The tutorial will guide through steps needed for importing external files into ANSYS workspace and analyze stress and strain elements after loads are applied.
