Stress
analysis of truss_structure_final
Author: Nicholas Selman, Richard Pantaleo, Jason Calaiaro
Company: RNJ Solutions
Date: 5.7.2007
1. Introduction
2. File Information
3. Materials
4. Load & Restraint Information
5. Study Property
6. Contact
7. Stress Results
8. Strain Results
9. Displacement Results
10. Deformation Results
11. Design Check Results
12. Appendix
1. Introduction
Summarize the FEM analysis on truss_structure_final
Note:
Do not base your design
decisions solely on the data presented in this report. Use this information in
conjunction with experimental data and practical experience. Field testing is
mandatory to validate your final design. COSMOSWorks
helps you reduce your time-to-market by reducing but not eliminating field
tests.
2. File Information
|
Model name: |
truss_structure_final |
|
Model location: |
C:\Users\Nick\Documents\CMU\2006-2007\Stress Analysis\Design Project\truss_structure_final.SLDPRT |
|
Results location: |
C:\Program Files\SolidWorks\COSMOS\work |
|
Study name: |
Study 2 (-Default-) |
3. Materials
|
No. |
Part Name |
Material |
Mass |
Volume |
|
1 |
truss_structure_final |
0.317661 kg |
0.000117652 m^3 |
4.
Load & Restraint Information
|
Restraint |
||
|
Restraint-1 <truss_structure_final> |
on 4 Edge(s) fixed. |
|
|
Description: |
|
|
|
Load |
||
|
Force-1 <truss_structure_final> |
on 1 Edge(s) apply force 1 lb normal to reference plane with respect to selected reference Edge< 1 > using uniform distribution |
Sequential Loading |
|
Description: |
|
|
5. Study Property
|
Mesh Information |
|
|
Mesh Type: |
Solid mesh |
|
Mesher Used: |
Standard |
|
Automatic Transition: |
Off |
|
Smooth Surface: |
On |
|
Jacobian Check: |
4 Points |
|
Element Size: |
0.19297 in |
|
Tolerance: |
0.0096487 in |
|
Quality: |
High |
|
Number of elements: |
39508 |
|
Number of nodes: |
89382 |
|
Solver Information |
|
|
Quality: |
High |
|
Solver Type: |
FFEPlus |
|
Option: |
Include Thermal Effects |
|
Thermal Option: |
Input Temperature |
|
Thermal Option: |
Reference Temperature at zero strain: 298 Kelvin |
6. Contact
Contact state: Touching faces - Bonded

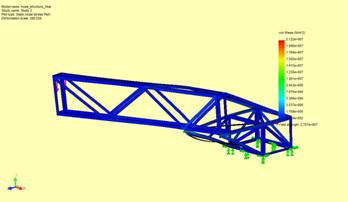

7. Stress Results
|
Name |
Type |
Min |
Location |
Max |
Location |
||||||||||
|
Plot1 |
VON: von Mises stress |
|
|
|
|
|
truss_structure_final-Study 2-Stress-Plot1 |
||
|
JPEG |
||
|

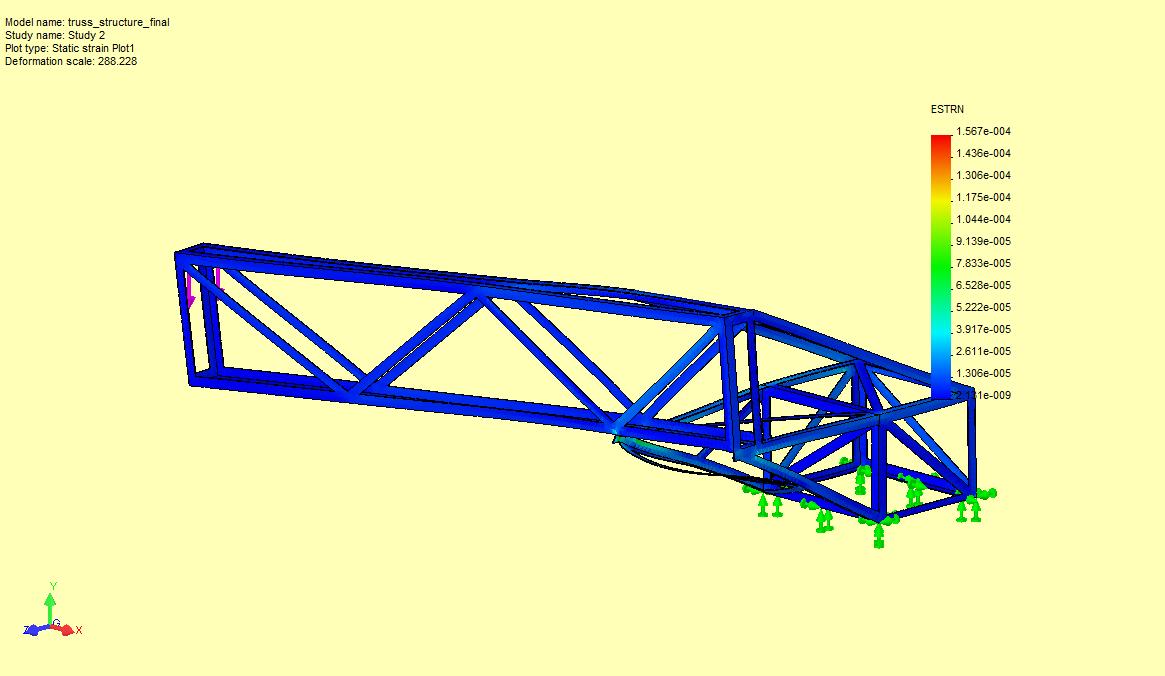

8. Strain Results
|
Name |
Type |
Min |
Location |
Max |
Location |
||||||||||
|
Plot1 |
ESTRN: Equivalent strain |
|
|
|
|
|
truss_structure_final-Study 2-Strain-Plot1 |
||
|
JPEG |
||
|

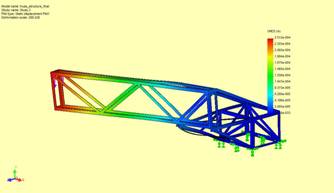

9. Displacement
Results
|
Name |
Type |
Min |
Location |
Max |
Location |
||||||||||
|
Plot1 |
URES: Resultant displacement |
|
|
|
|
|
truss_structure_final-Study 2-Displacement-Plot1 |
||
|
JPEG |
||
|

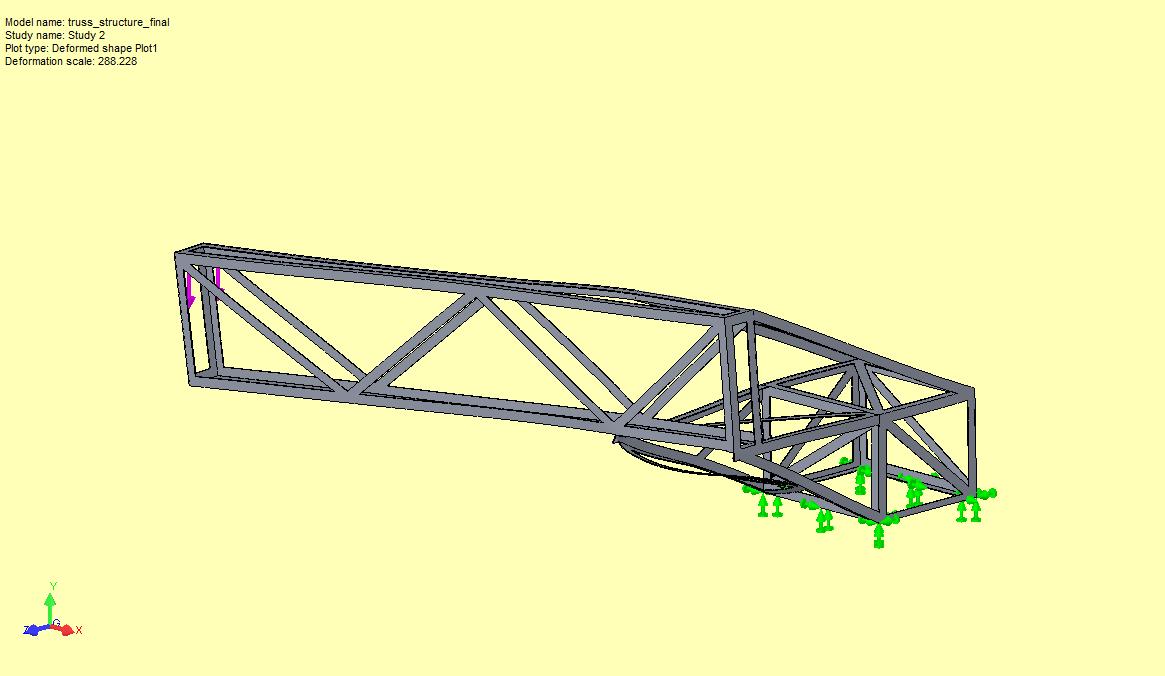

10. Deformation
Results
|
Plot No. |
Scale Factor |
|
1 |
288.23 |
|
truss_structure_final-Study 2-Deformation-Plot1 |
||
|
JPEG |
||
|

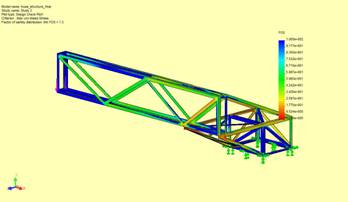

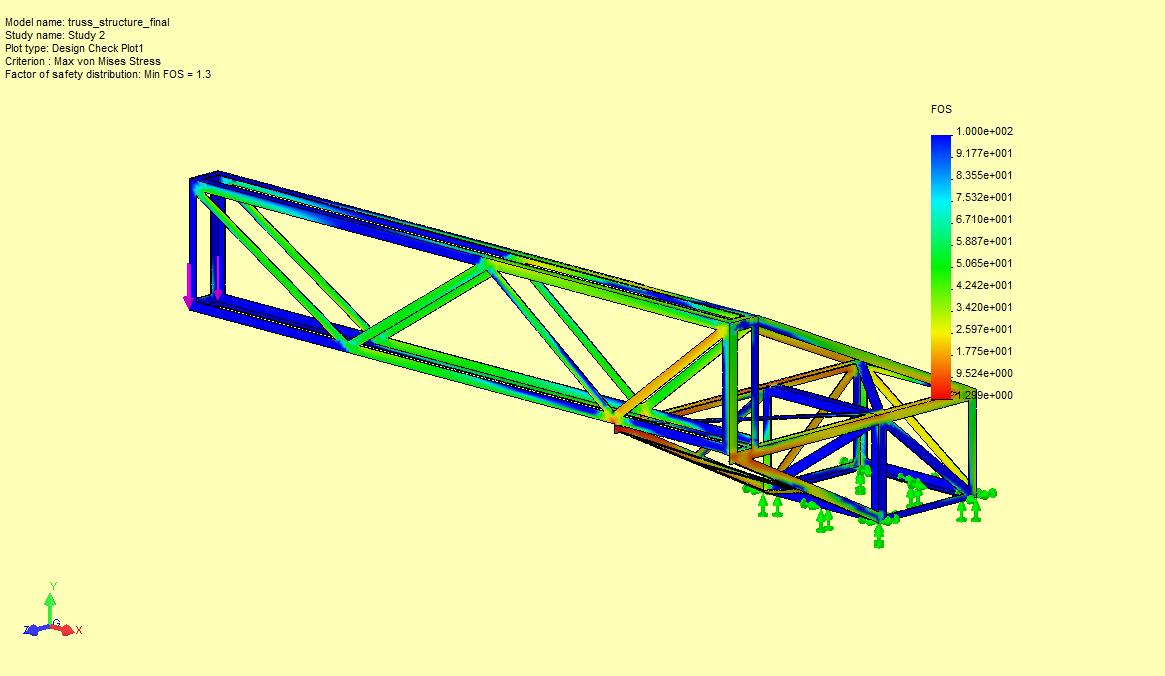

11. Design
Check Results
|
truss_structure_final-Study 2-Design Check-Plot1 |
||
|
JPEG |
||
|
12. Appendix
|
Material name: |
|
|
Description: |
|
|
Material Source: |
Library files |
|
Material Library Name: |
cosmos materials |
|
Material Model Type: |
Linear Elastic Isotropic |
|
Property Name |
Value |
Units |
Value Type |
|
Elastic modulus |
6.9e+010 |
N/m^2 |
Constant |
|
Poisson's ratio |
0.33 |
NA |
Constant |
|
Shear modulus |
2.7e+010 |
N/m^2 |
Constant |
|
Mass density |
2700 |
kg/m^3 |
Constant |
|
Tensile strength |
6.8936e+007 |
N/m^2 |
Constant |
|
Yield strength |
2.7574e+007 |
N/m^2 |
Constant |
|
Thermal expansion coefficient |
2.4e-005 |
/Kelvin |
Constant |
|
Thermal conductivity |
200 |
W/(m.K) |
Constant |
|
Specific heat |
900 |
J/(kg.K) |
Constant |
|
Hardening factor (0.0-1.0; 0.0=isotropic; 1.0=kinematic) |
0.85 |
NA |
Constant |
