Static quark potential and its excitations
in 4-dimensional SU(3) gauge theory
Run A
RUN PARAMETERS
| Improved anisotropic action |
| beta | 3.0 |
| input anisotropy a_s / a_t | 3.0 |
| input u_t | 1.0000 |
| input u_s | 0.8410 |
| |
| Individual term couplings: |
| spatial plaquette | 3.3318 |
| temporal plaquette | 16.9668 |
| spatial 2x1 rectangle | -0.2355 |
| 2s x 1t rectangle | -1.4993 |
| 2t x 1s rectangle | 0.0000 |
|
| lattice size | (15 x 15 x 15) x 45 |
| scale setting a_s a_t sigma | 0.02827(65) |
| inverse scale 1/(a_s a_t sigma) | 35.38(81) |
| anisotropy renormalization Z_xi | 0.943(10) |
| Configuration updating parameters: |
| number of bins | 225 |
| number of measurements per bin | 1 |
| number of updates between measurements | 15 |
| number of Cabibbo-Marinari sweeps per update | 1 |
| number of over-relaxation sweeps (all links) per update | 7 |
| number of over-relaxation sweeps (spatial links) per update | 0 |
| |
| Link smearing parameters: |
| alpha (staple weight) | 0.22 |
| number of levels | 24 |
| Thermal averaging of temporal links: |
| number of Cabibbo-Marinari hits | 40 |
|
| Correlator information: |
| Maximum time separation measured | 15 |
| Spatial-translation increment | 1 |
| Temporal-translation increment | 3 |
| Number of optimized operators retained | 1 |
| Optimized on time slices | 1/ 0 |
| |
| Number of operators before fuzzing: |
| A1g | 1 |
| B1u | 1 |
| B2u | 1 |
| Eu | 1 |
|
RAW RESULTS
(in terms of temporal lattice spacing)
| R |
A1g |
Eu |
| (1,0,0) |
0.147242(49) |
0.4880(30) |
| (2,0,0) |
0.22428(15) |
0.4794(29) |
| (3,0,0) |
0.26883(23) |
0.4792(29) |
| (4,0,0) |
0.30358(37) |
0.4843(27) |

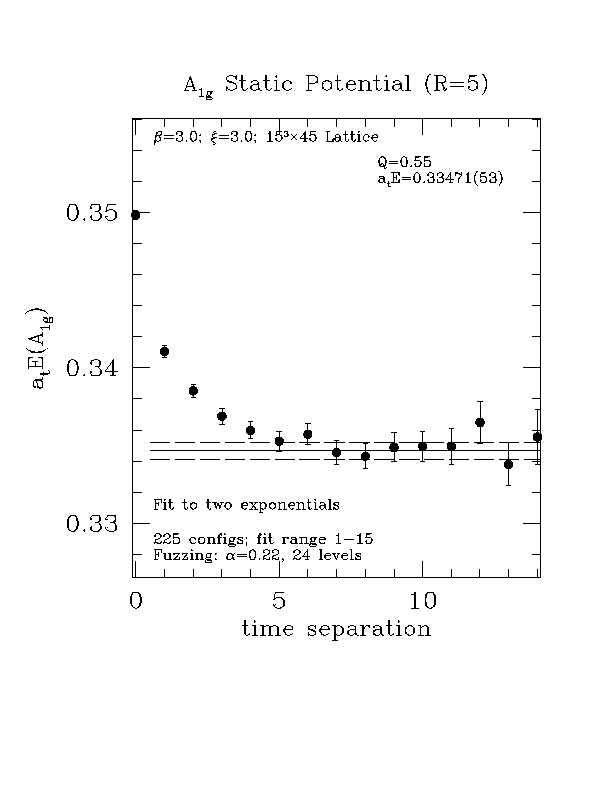

| (5,0,0) |
0.33471(53) |
0.4942(24) |

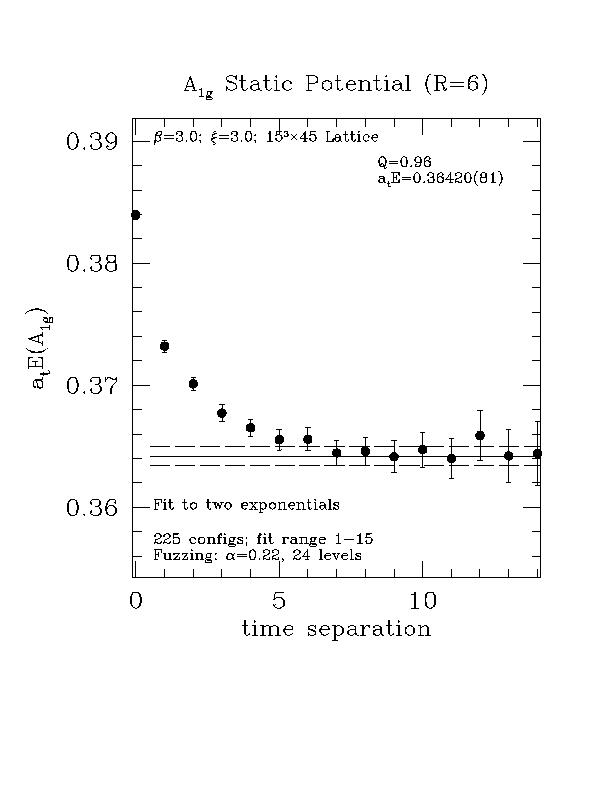

| (6,0,0) |
0.36420(81) |
0.5083(26) |
| (7,0,0) |
0.3933(11) |
0.5236(24) |

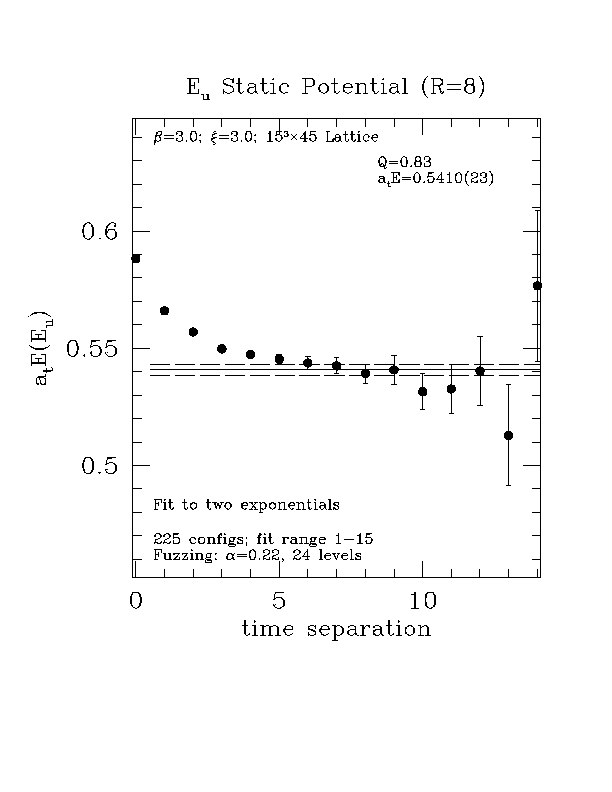

| (8,0,0) |
0.4218(16) |
0.5410(23) |
| (9,0,0) |
0.4502(22) |
0.5584(31) |
| (10,0,0) |
0.4794(24) |
0.5781(36) |
| |
| R |
A1g |
B1u |
B2u |
| (1,1,0) |
0.190902(88) |
0.4827(27) |
0.4829(31) |

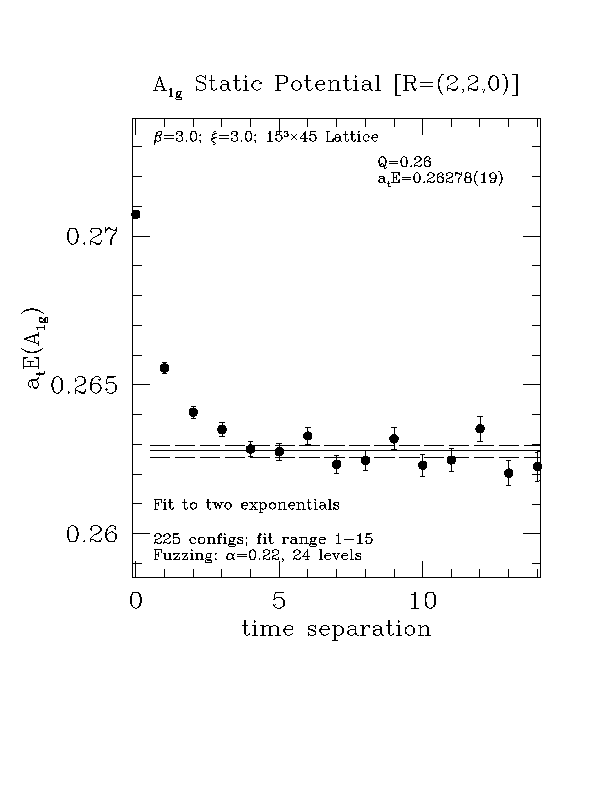

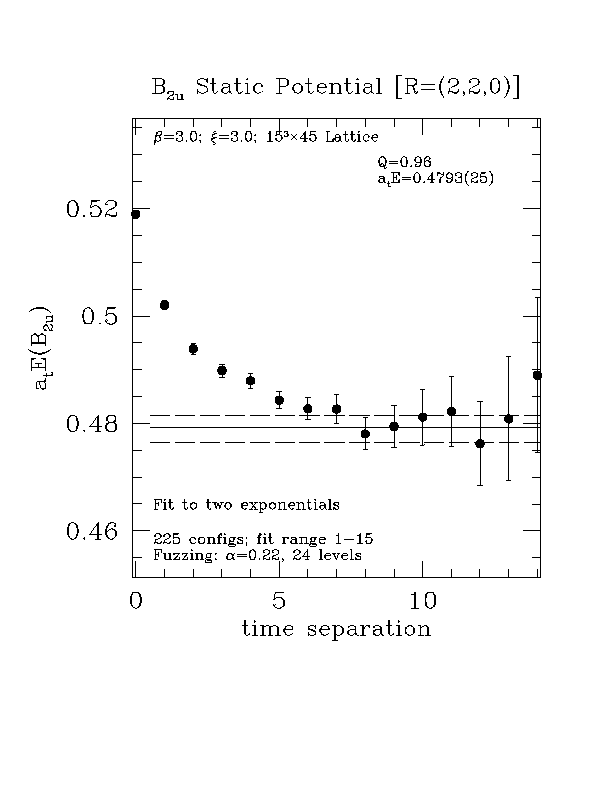

| (2,2,0) |
0.26278(19) |
0.4784(29) |
0.4793(25) |
| (3,3,0) |
0.31195(38) |
0.4880(20) |
0.4863(25) |
| (4,4,0) |
0.35493(64) |
0.5040(19) |
0.5037(18) |

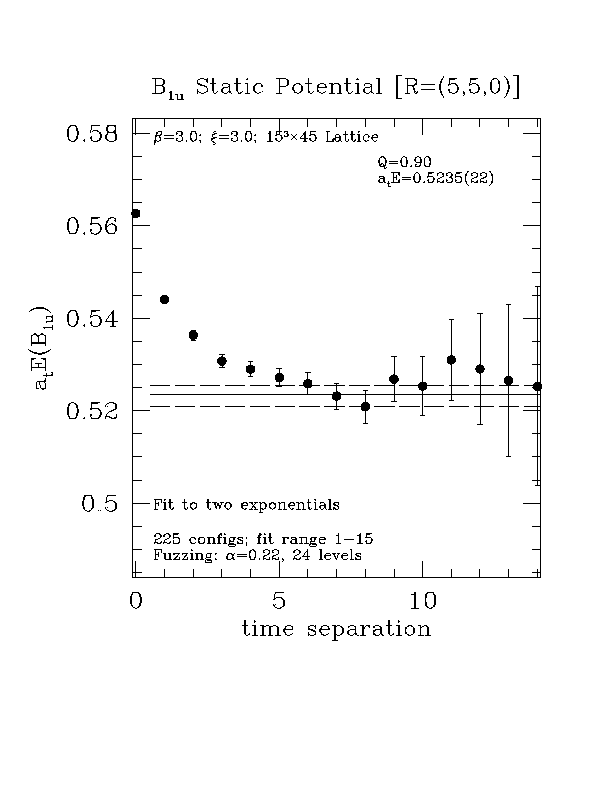

| (5,5,0) |
0.3956(11) |
0.5235(22) |
0.5244(18) |

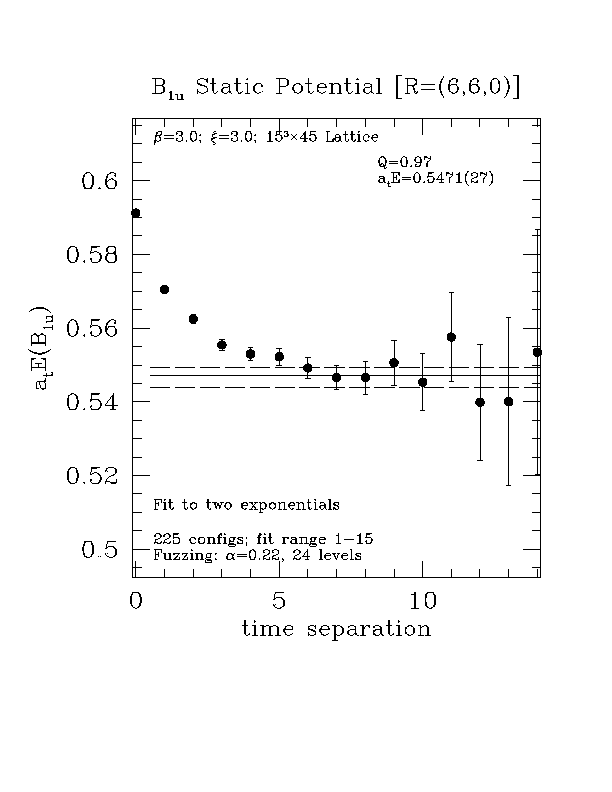

| (6,6,0) |
0.4355(14) |
0.5471(27) |
0.5499(21) |
| (7,7,0) |
0.4756(20) |
0.5742(31) |
0.5781(25) |
|
RAW GAP (above A1g) RESULTS
(in terms of temporal lattice spacing)
| R |
Eu |
| (1,0,0) |
0.3409(33) |
| (2,0,0) |
0.2554(34) |
| (3,0,0) |
0.2110(20) |
| (4,0,0) |
0.1811(23) |
| (5,0,0) |
0.1602(18) |
| (6,0,0) |
0.1442(19) |
| (7,0,0) |
0.1303(23) |

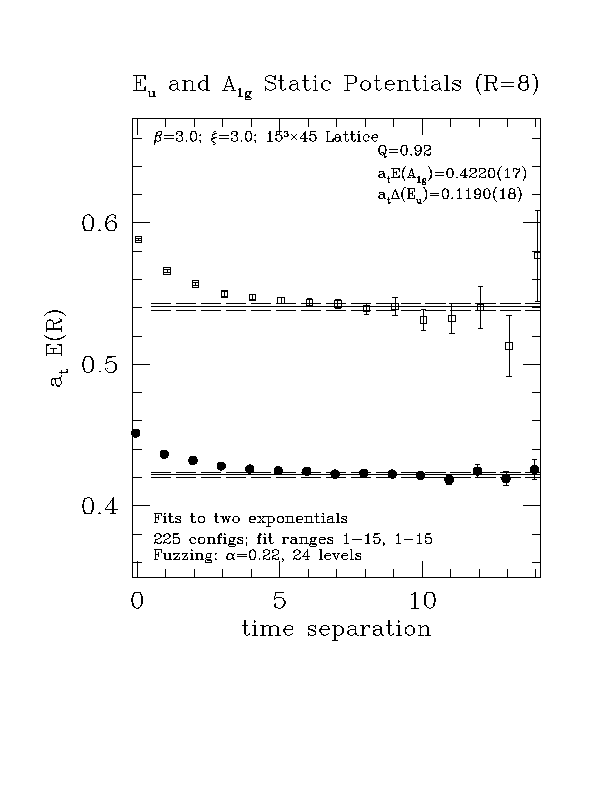

| (8,0,0) |
0.1190(18) |
| (9,0,0) |
0.1074(28) |
| (10,0,0) |
0.0977(37) |
| |
| R |
B1u |
B2u |
| (1,1,0) |
0.2916(27) |
0.2917(33) |
| (2,2,0) |
0.2161(27) |
0.2164(24) |
| (3,3,0) |
0.1764(19) |
0.1741(21) |
| (4,4,0) |
0.1489(15) |
0.1488(15) |
| (5,5,0) |
0.1281(17) |
0.1288(13) |
| (6,6,0) |
0.1112(25) |
0.1145(21) |
| (7,7,0) |
0.0978(29) |
0.1027(26) |
|

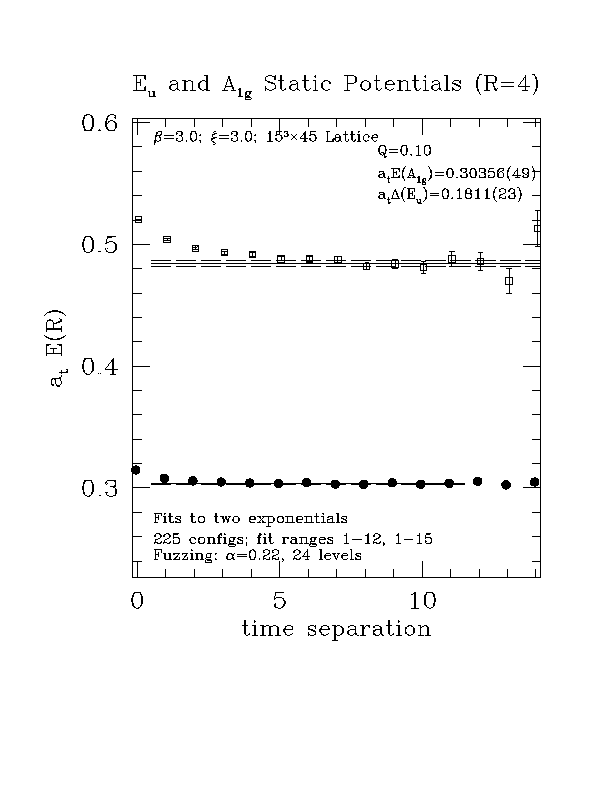

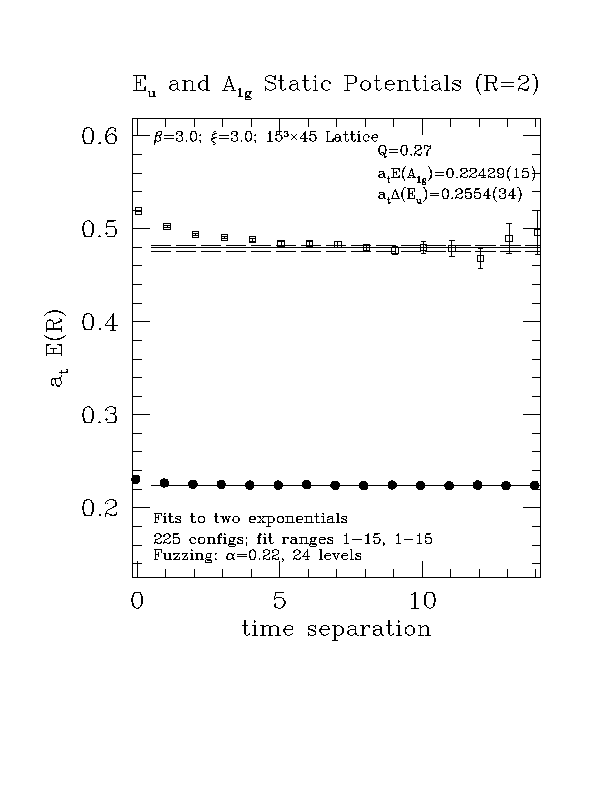

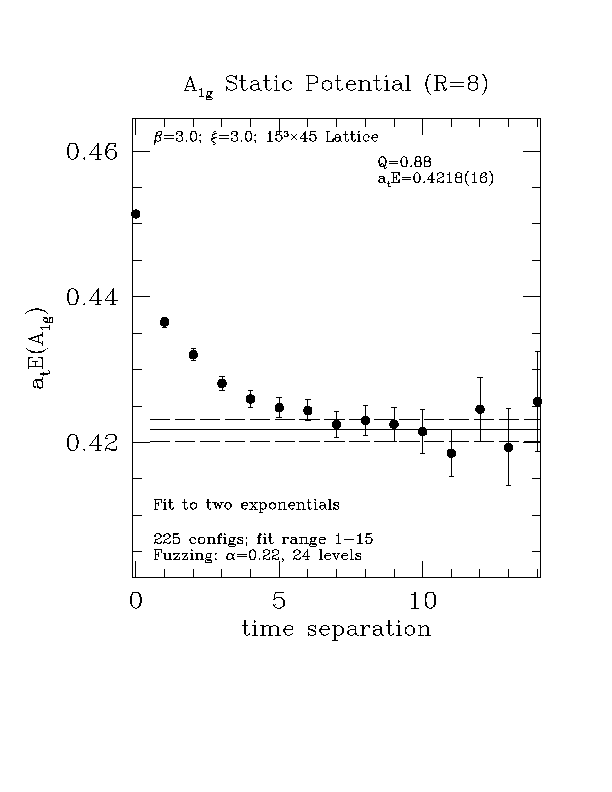

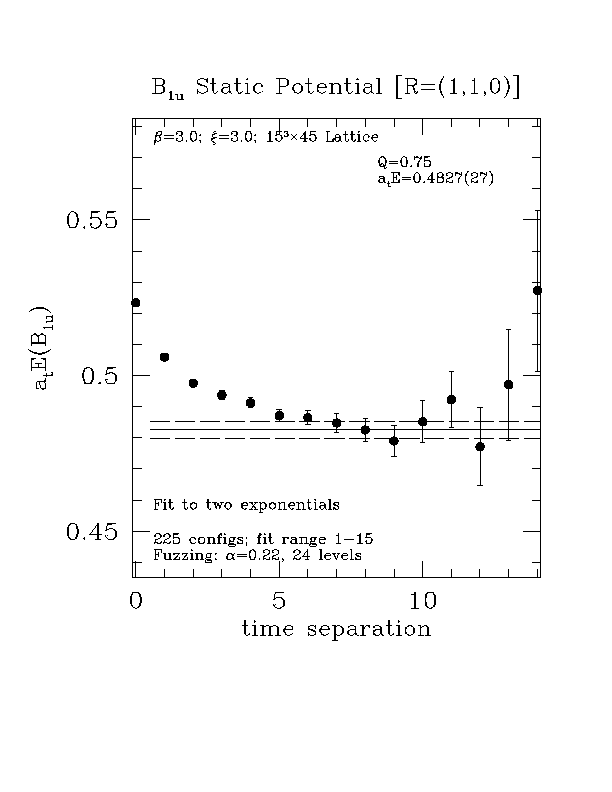

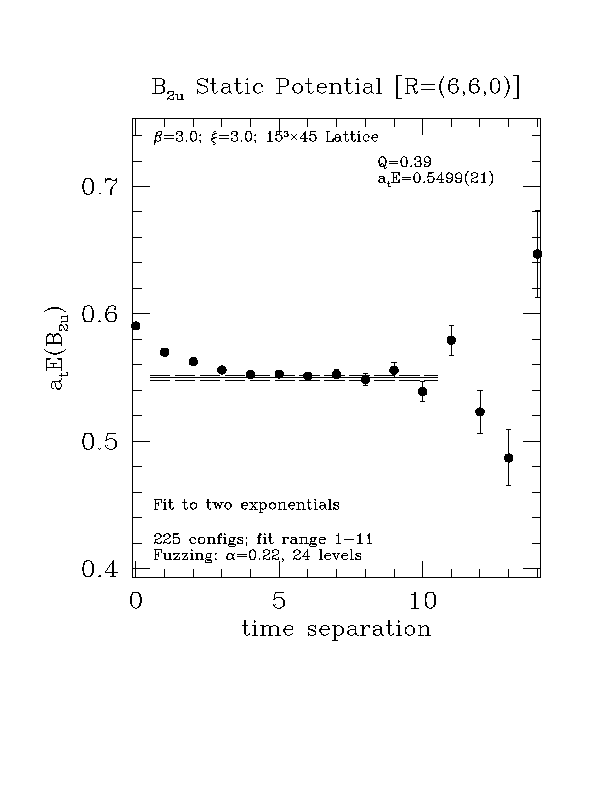

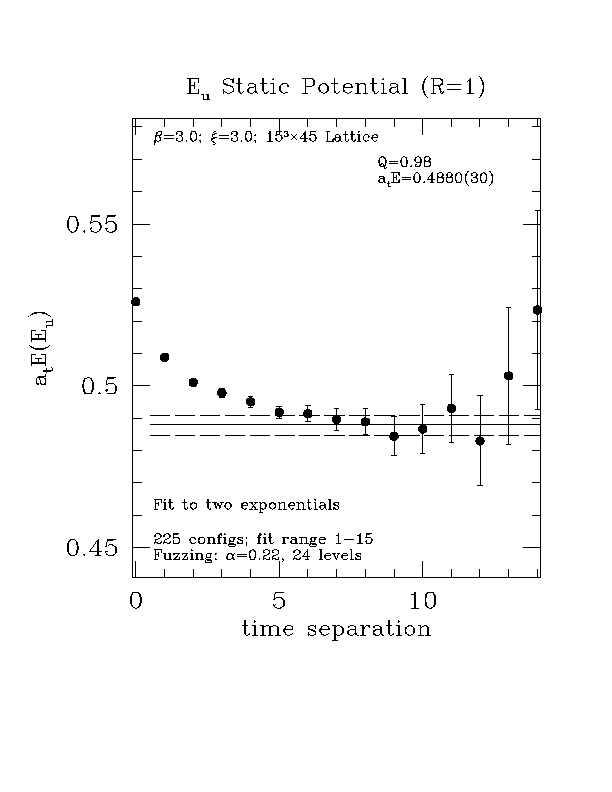

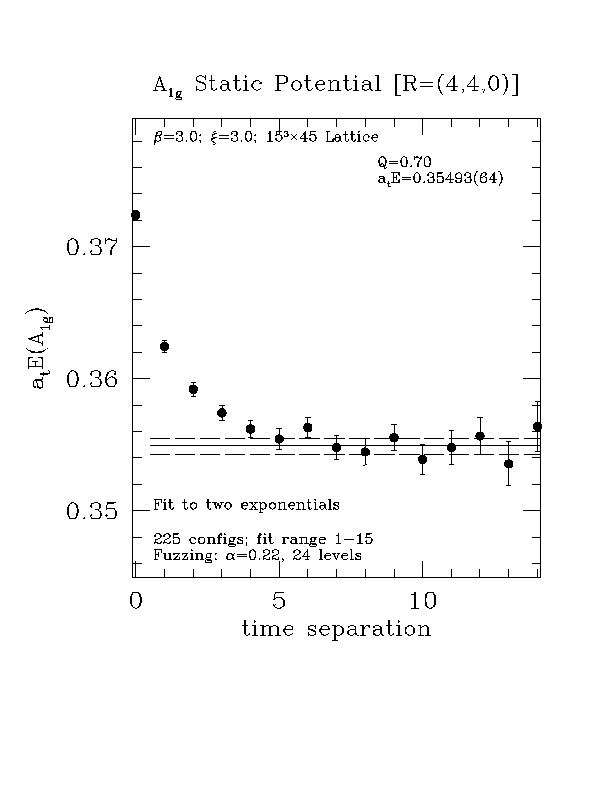

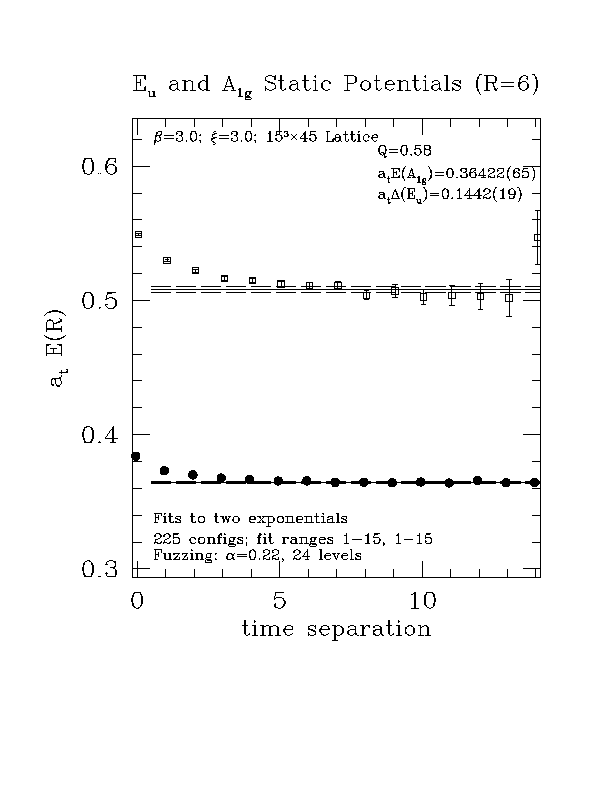

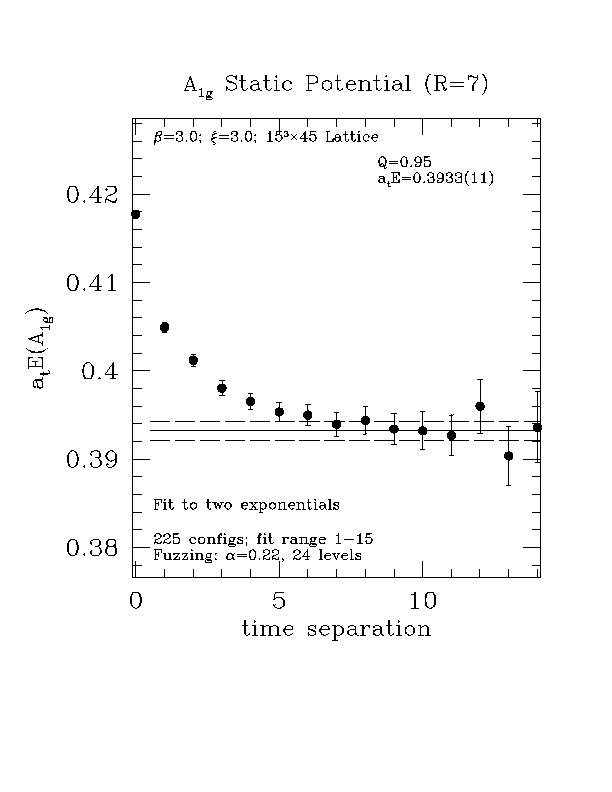

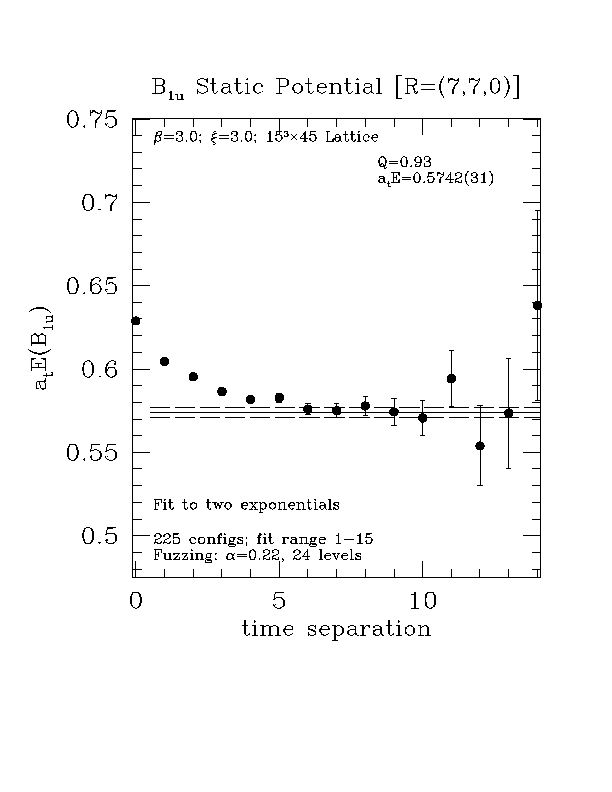

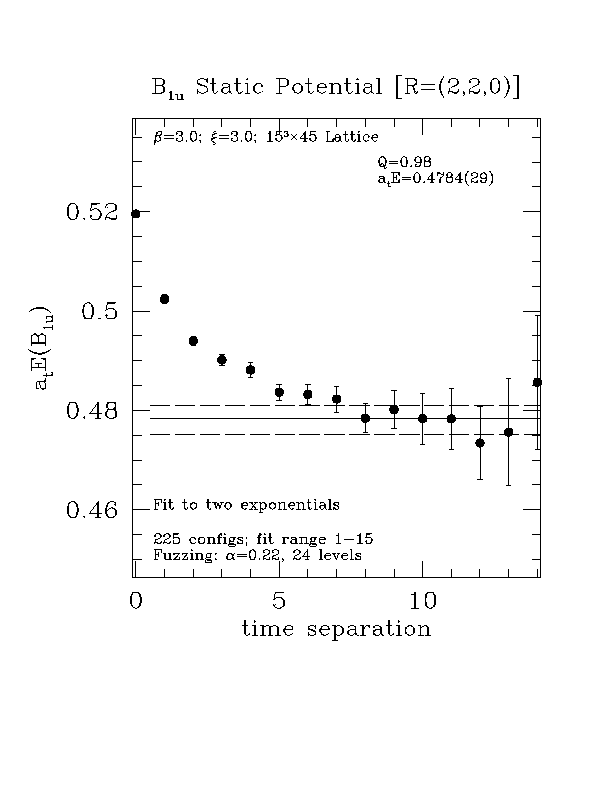

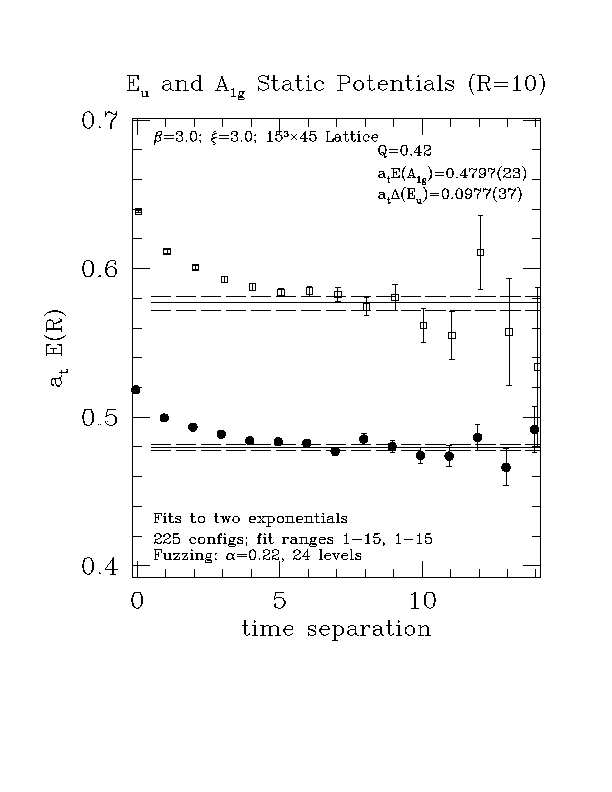

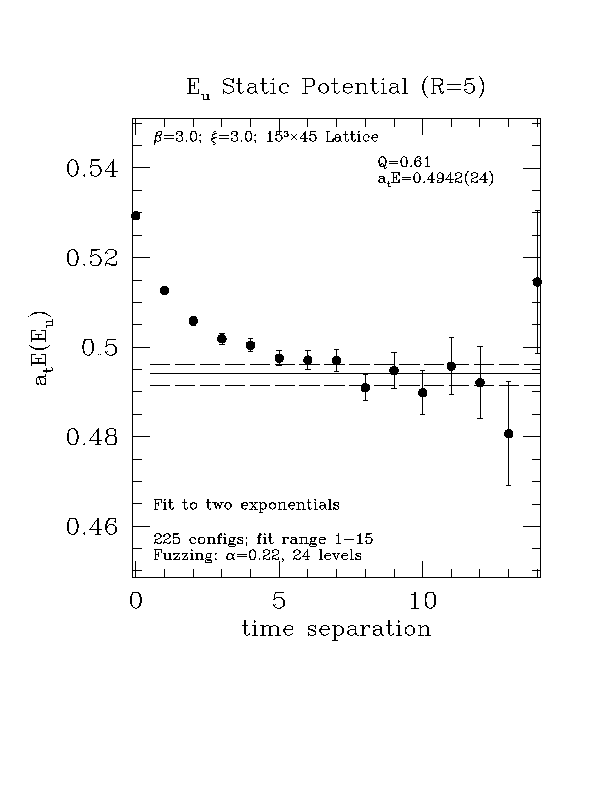

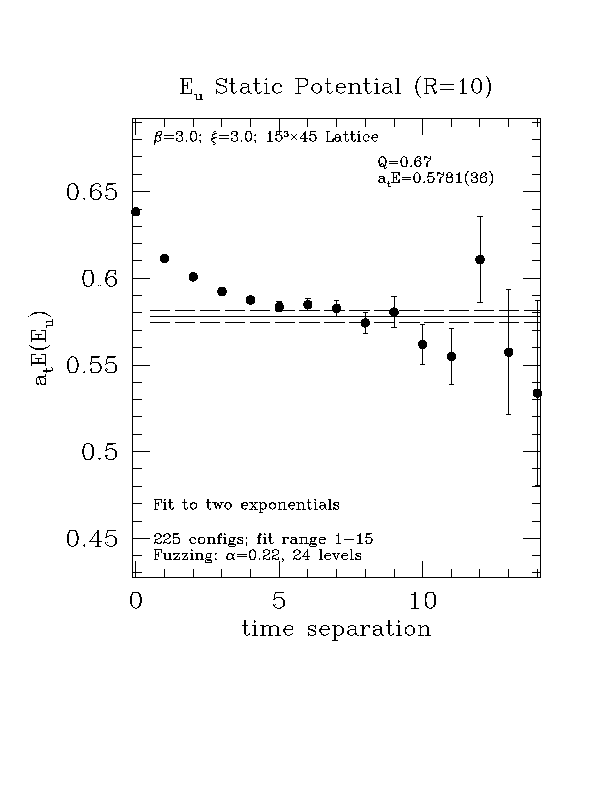

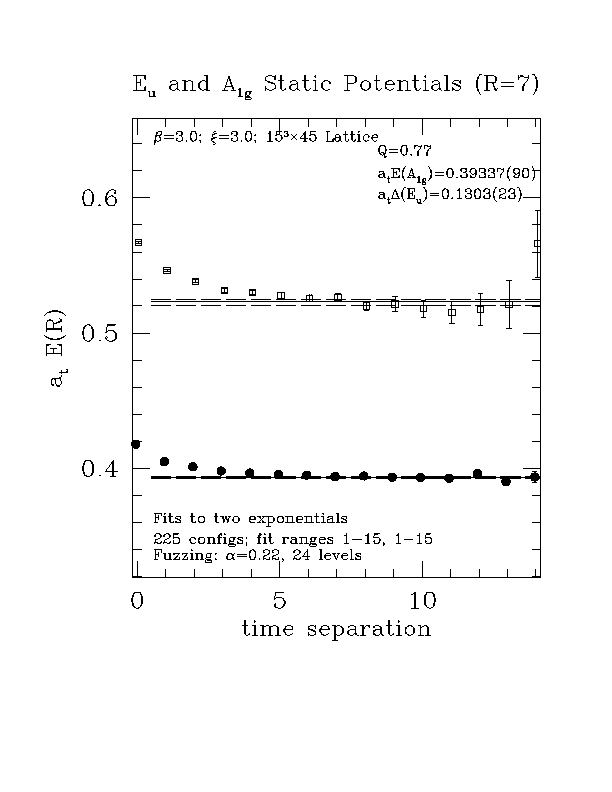

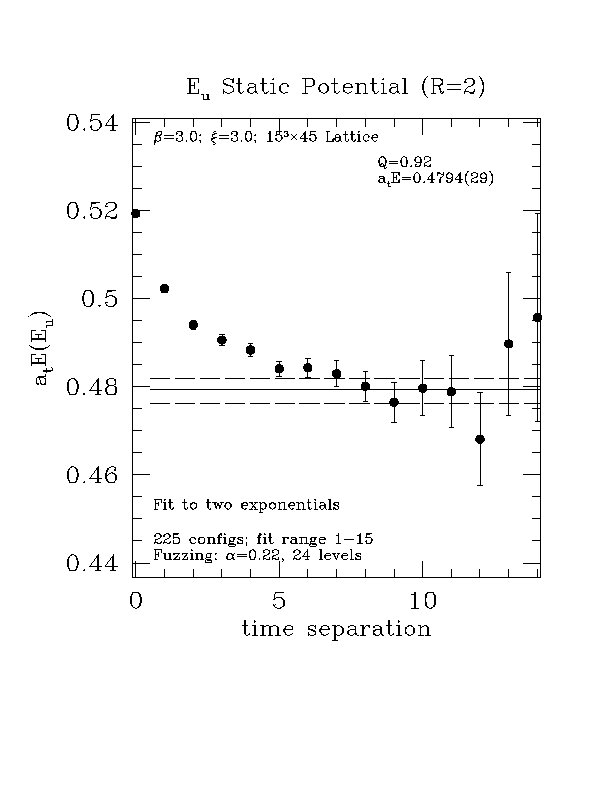

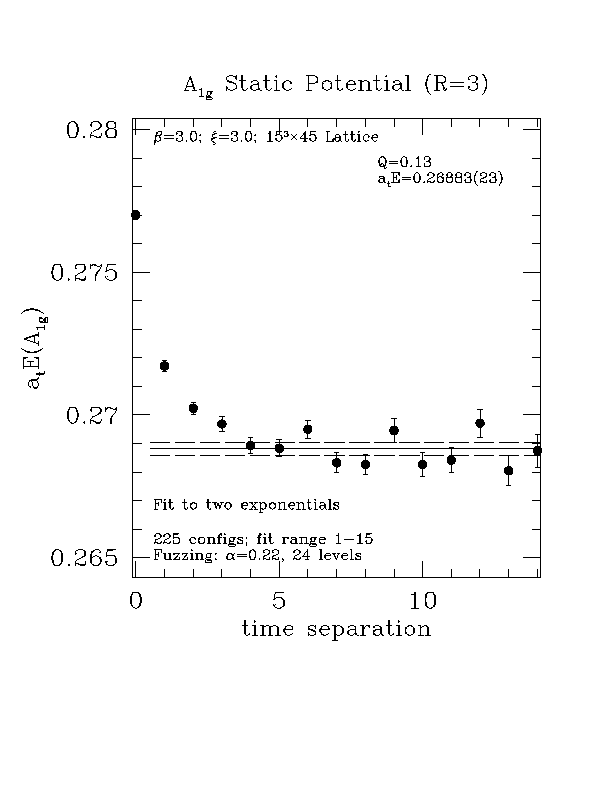

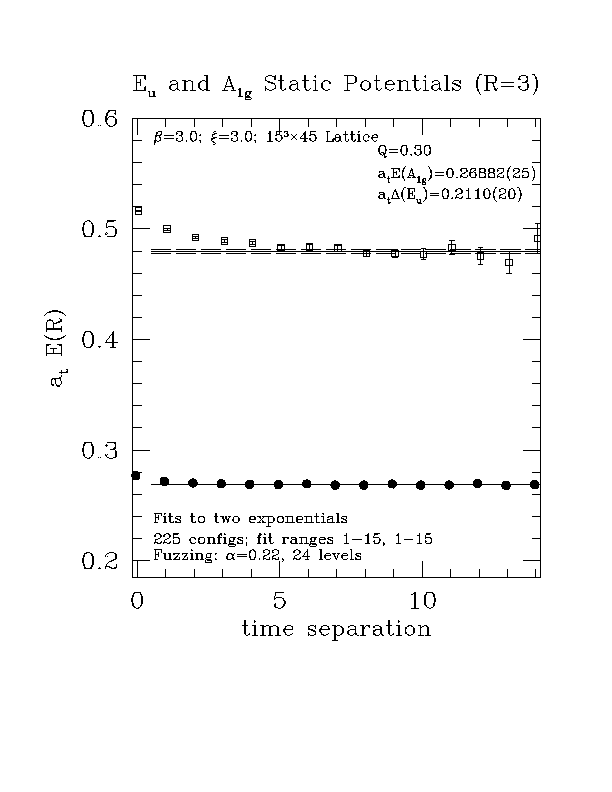

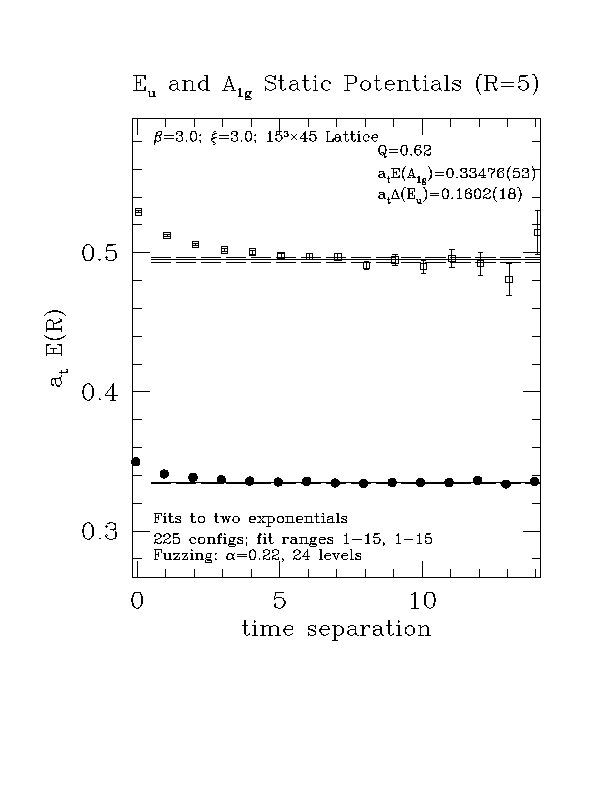

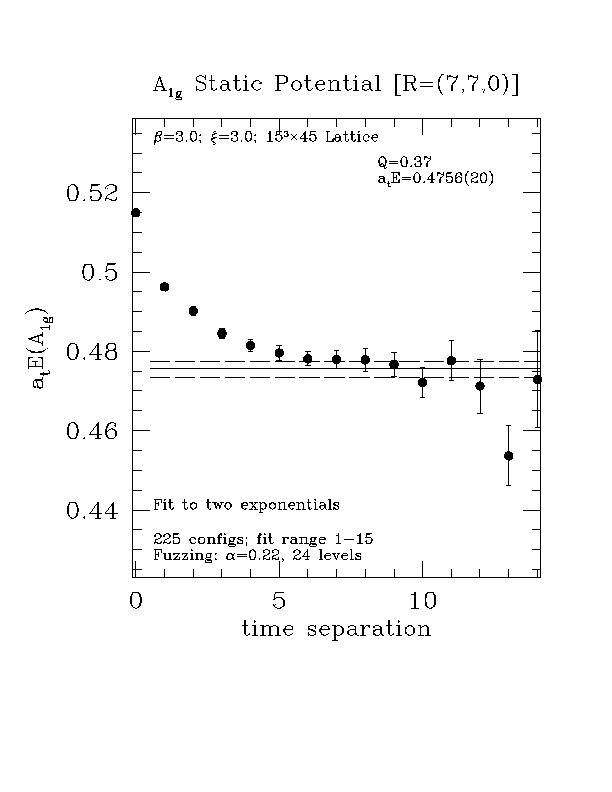

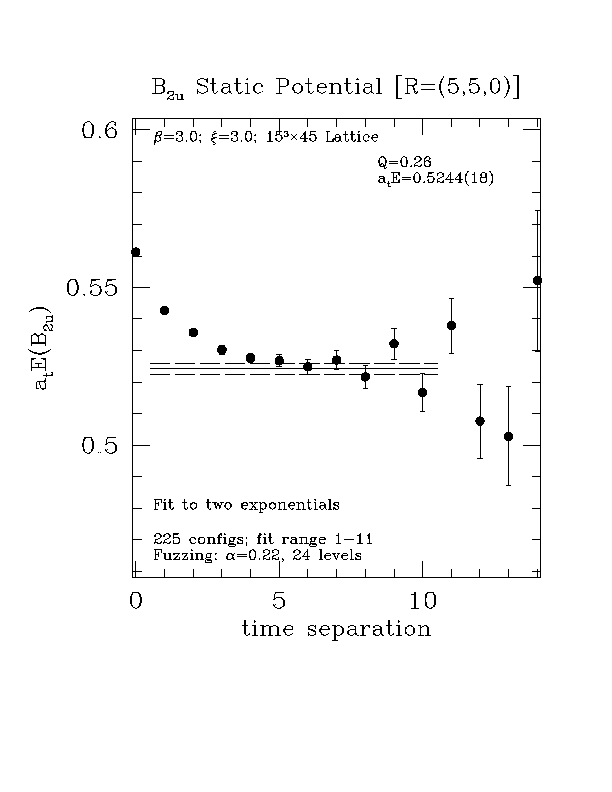

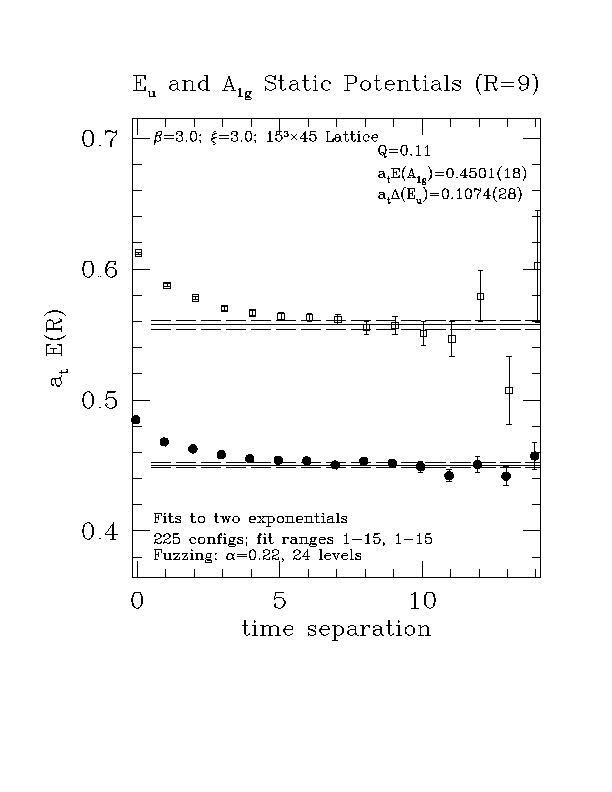

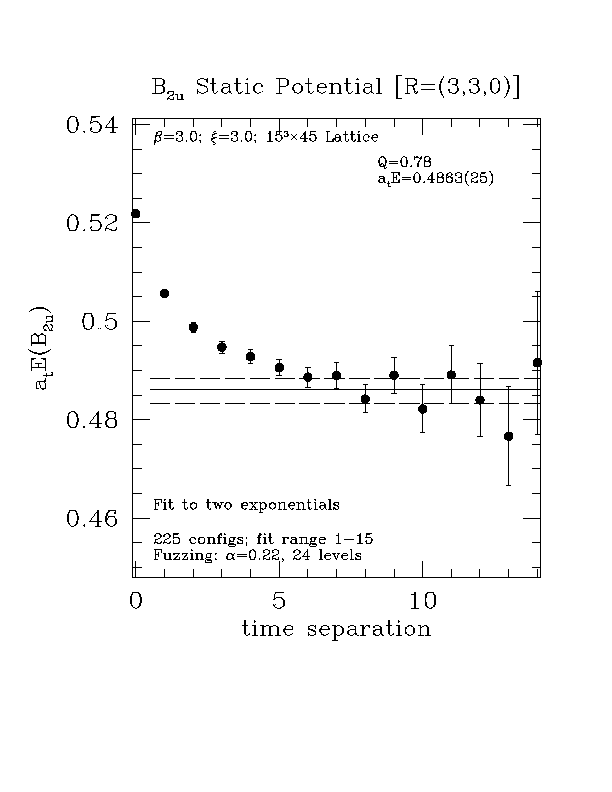

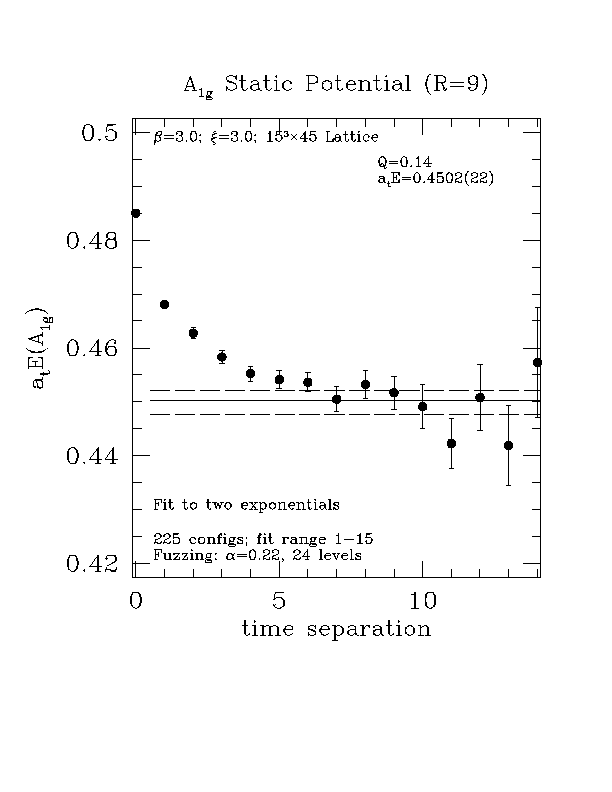

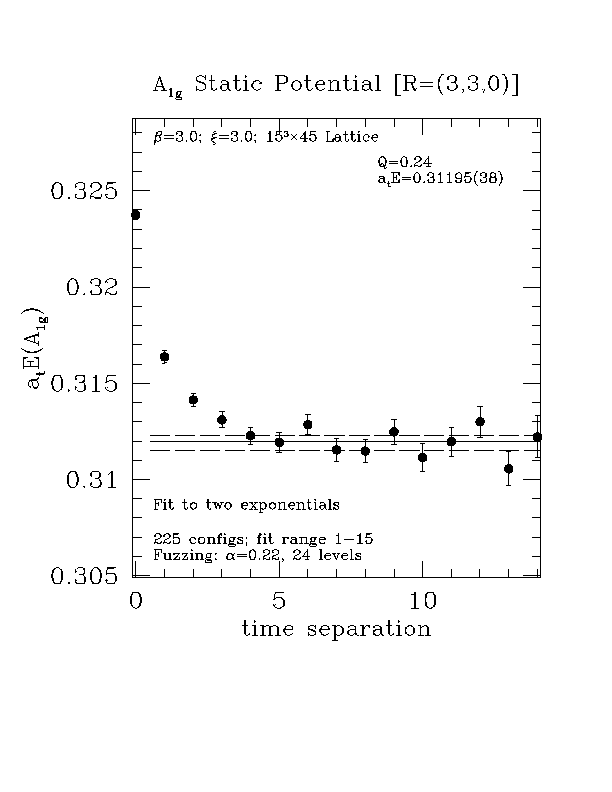

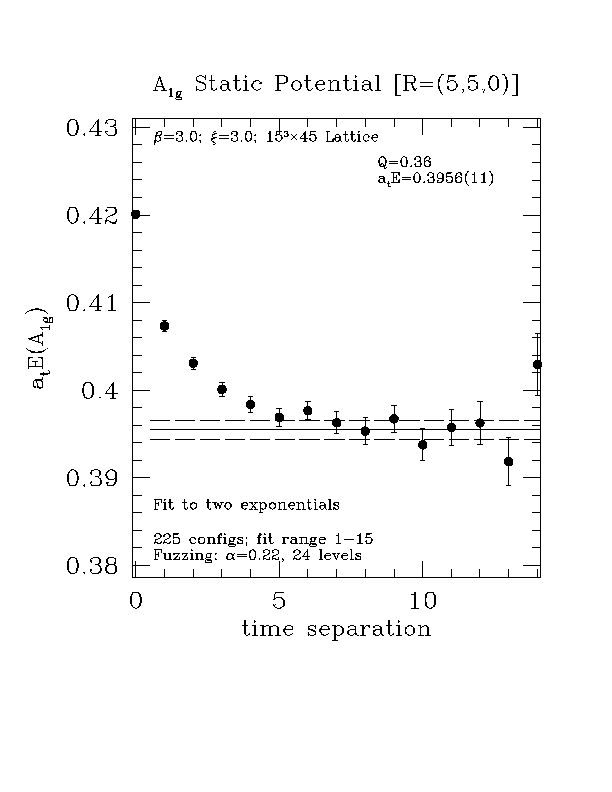

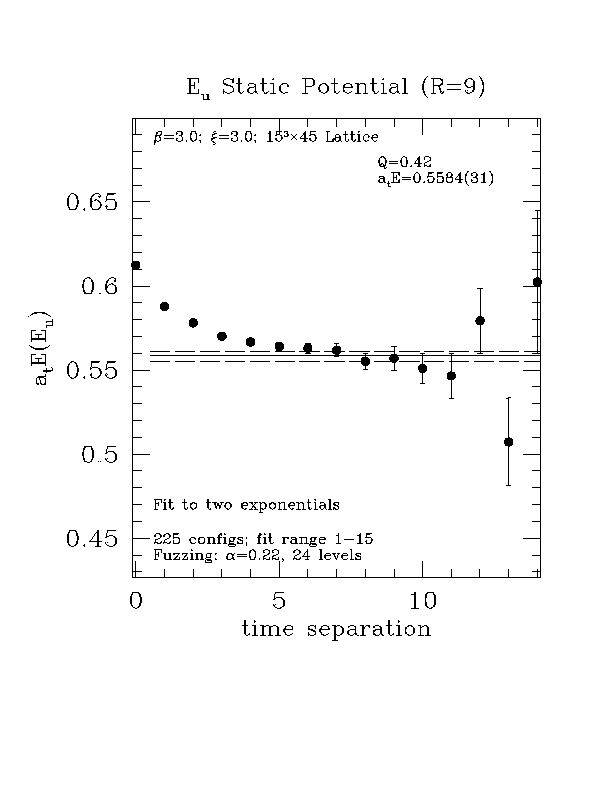

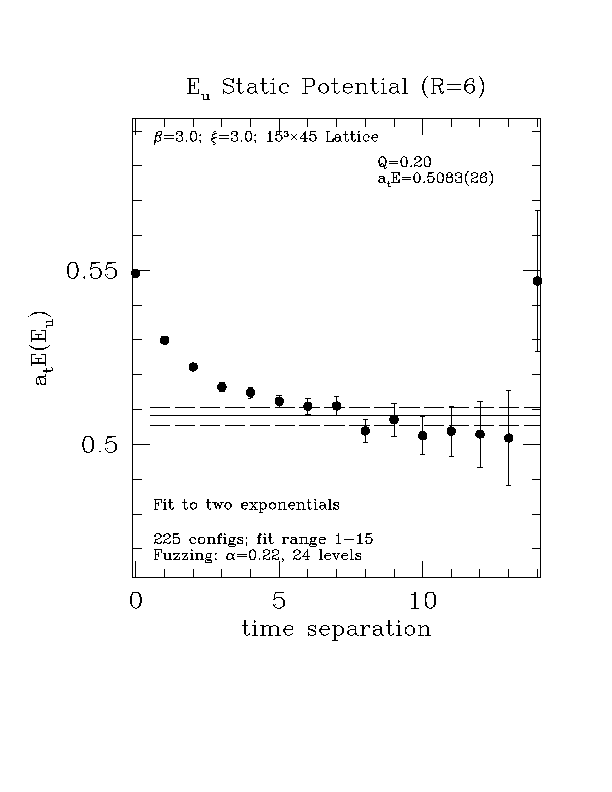

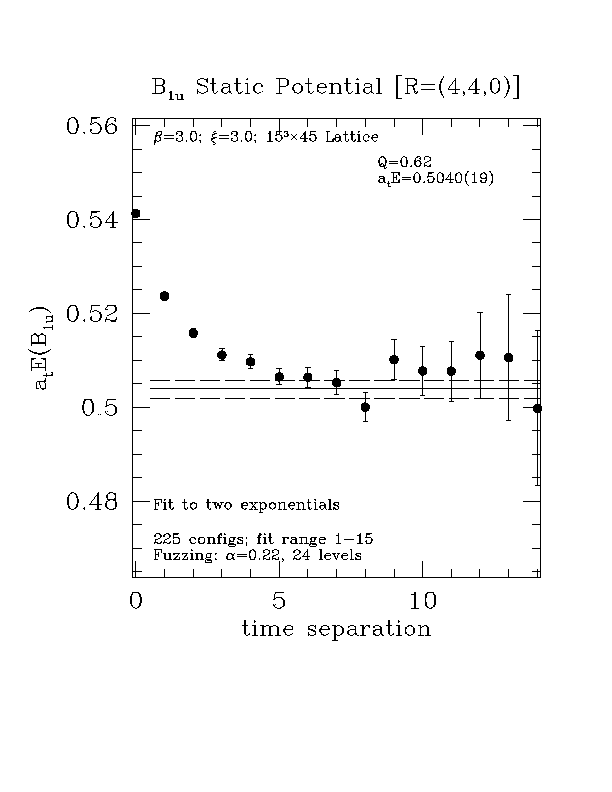

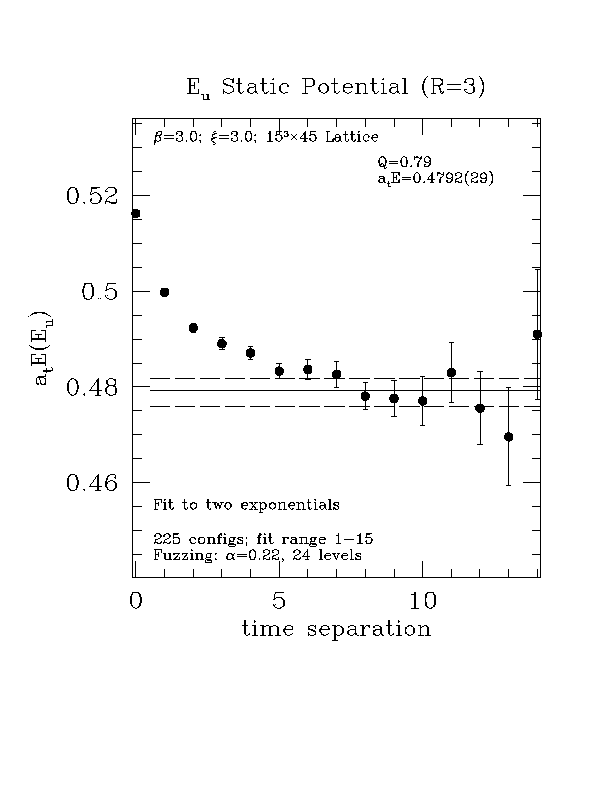

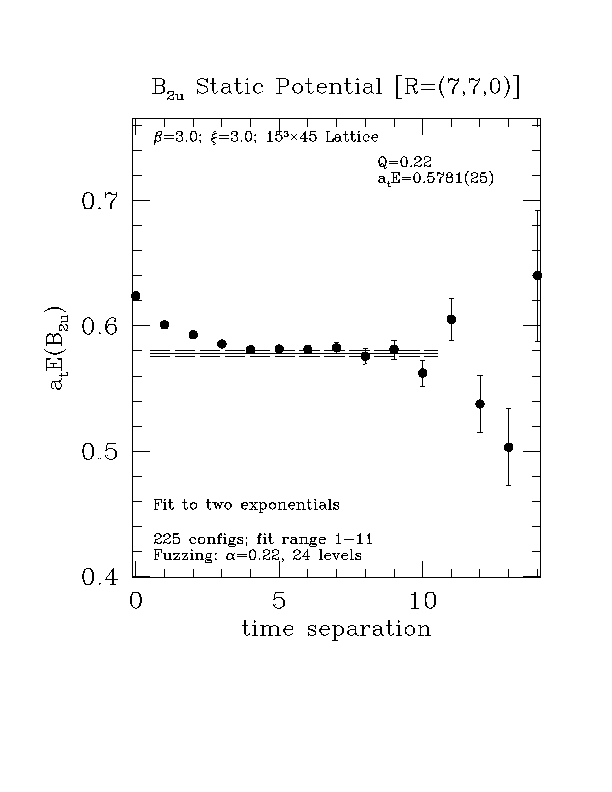

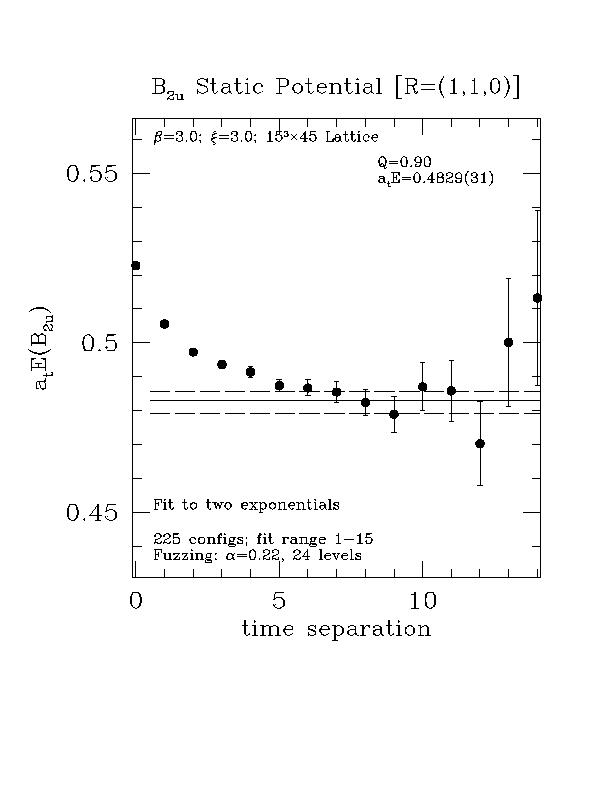

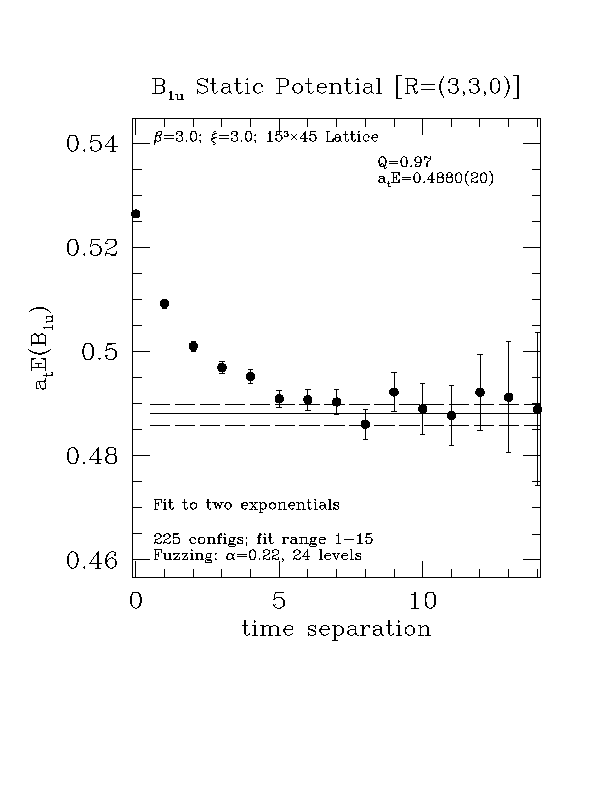

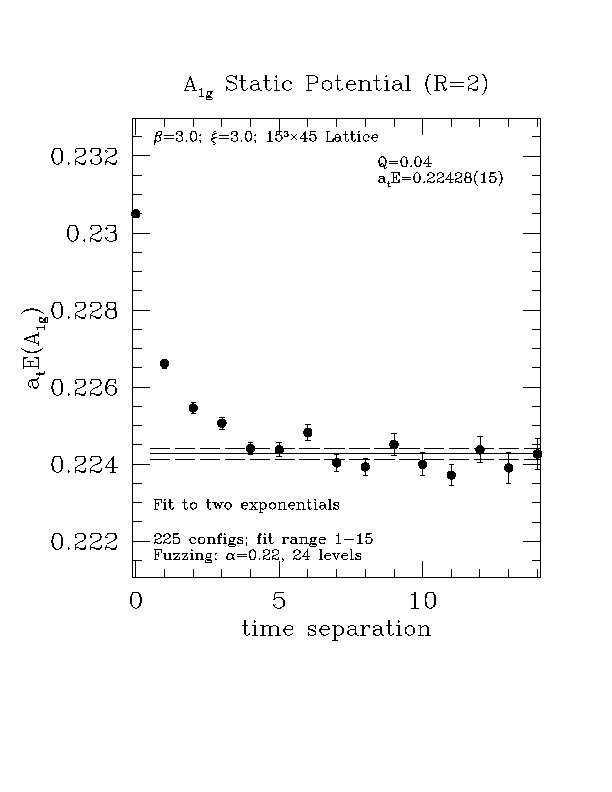

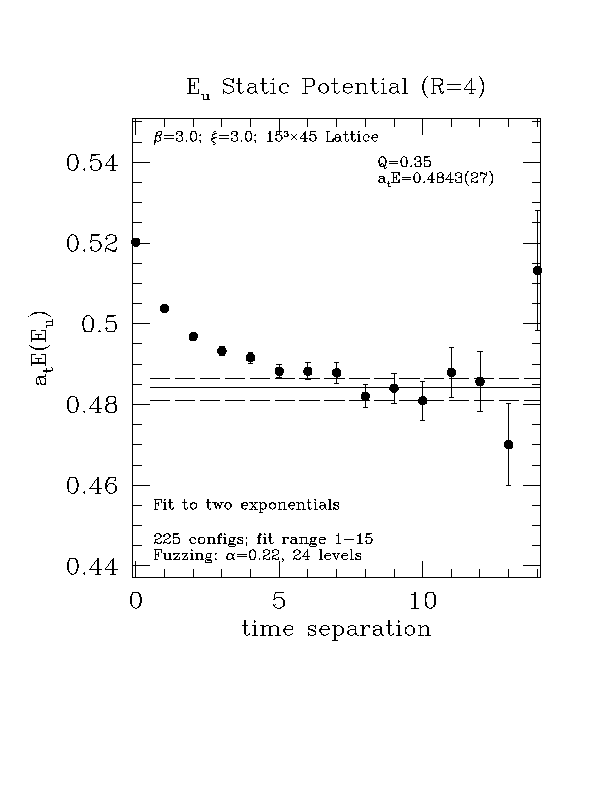

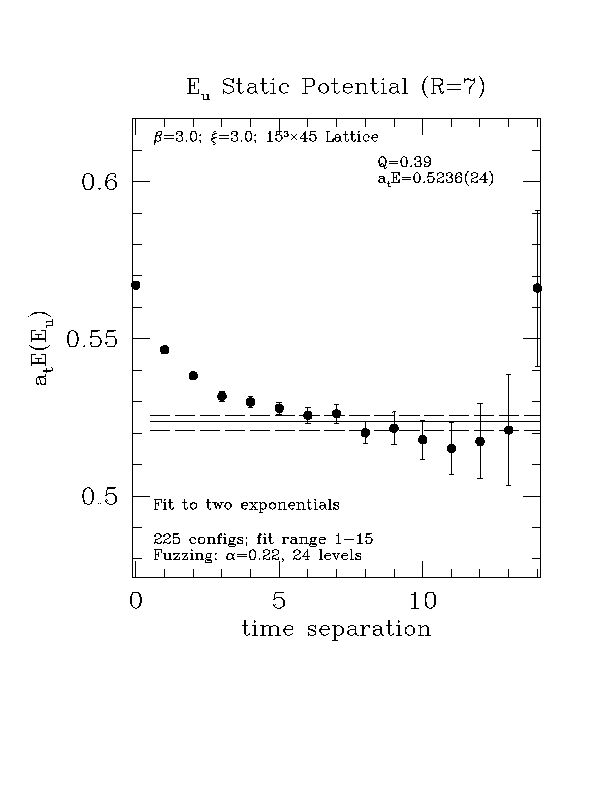

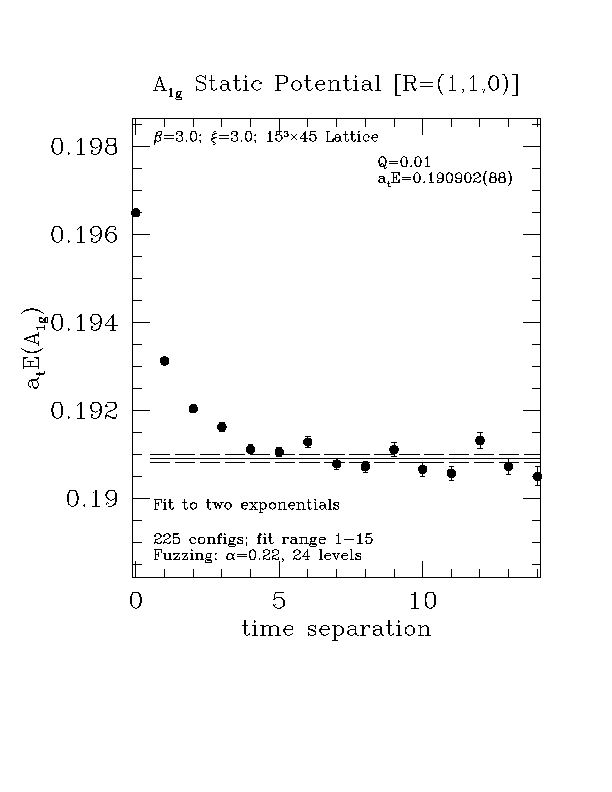

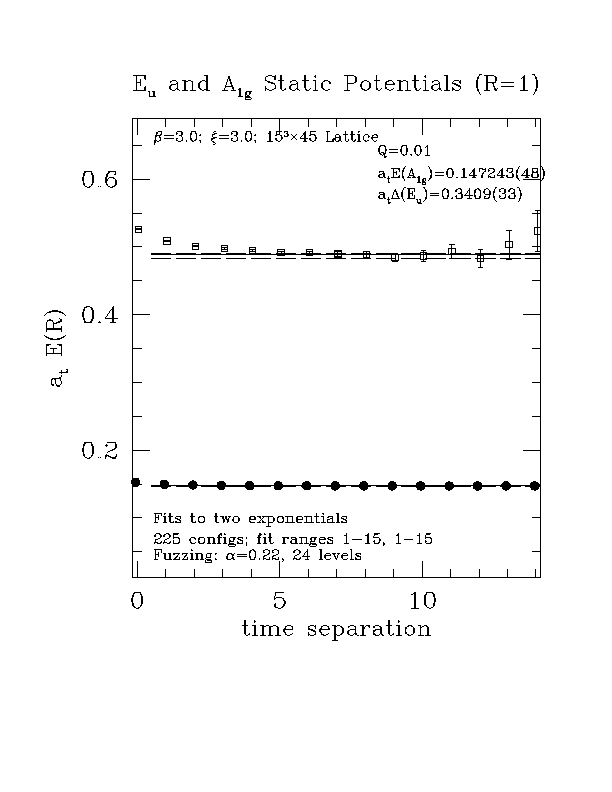

RAW RESULTS PLOTS
