Cool Waves Cooling System

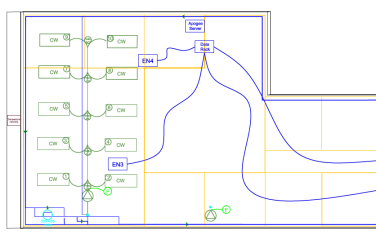

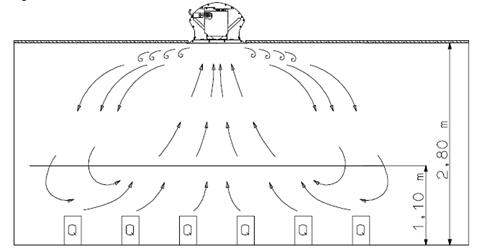

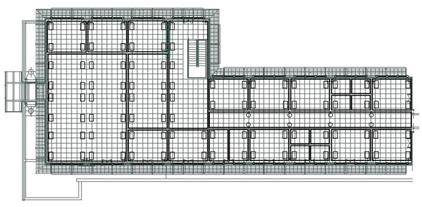

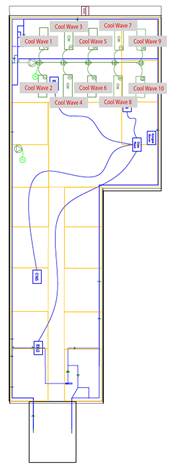

The IW heating-cooling system includes ten chilled beams LTG cool waves units for cooling in the north side of the building. The LTG cool waves are compact, ceiling mounted units which cools the air by convection by means of a fan, oscillating between two heat exchangers, which generates streams of cool air. The resulting air current decays rapidly, generating a soft, uniform flow of cooling air throughout the room.


The lowest water supply temperature for operation without condensation essentially depends on the humidity of the air and may be 1-2 K below the dew point of the ambient air.

Components of Cool waves

Device type

Cool wave Unit

Device ID

IW_Coolwave_1

Manufacturer

LTG

Model

KFA 1000 T/F

Part Number

N/A

Installation date

1997


Device description:
Device size varying between 800-1000mm.

Device type

Cartridge Circulator

Device ID

CP_1

Manufacturer

TACO

Model

0011-F4

Part Number

N/A

Installation date

1997



Device description:
Cast Iron, Flow Range: 0-28 GPM. Head Range: 0-30 ft, Min. Fluid Temp: 40 F (4 C)
Max. Fluid Temp: 230 F (110 C) Max Working Pressure: 125 PSI
