Assignment 4
3D Gaussian Splatting and Diffusion-guided Optimization
Part 1: 3D Gaussian Splatting
1.1.5 Perform Splatting
Submission: Attach the GIF obtained by running
render.py

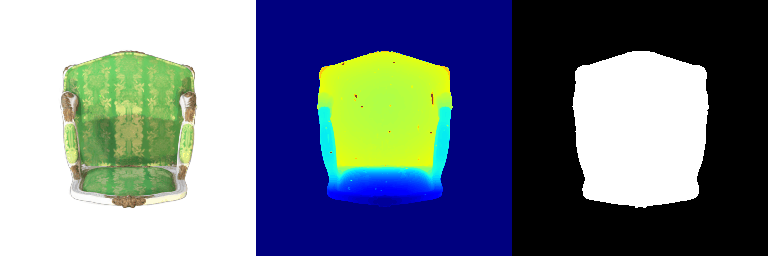

Rendering of Pre-trained 3D Gaussians
1.2 Training 3D Gaussian Representations
Submission: Learning rates, number of iterations, PSNR/SSIM, and both training
GIFs
Training Configuration:
• Opacities learning rate: 0.01
• Scales learning rate: 0.005
• Colors learning rate: 0.0025
• Means learning rate: 0.00016
• Number of iterations: 1000
• Loss function: L1 Loss
Results:
• Mean PSNR: 28.52 dB
• Mean SSIM: 0.921
• Opacities learning rate: 0.01
• Scales learning rate: 0.005
• Colors learning rate: 0.0025
• Means learning rate: 0.00016
• Number of iterations: 1000
• Loss function: L1 Loss
Results:
• Mean PSNR: 28.52 dB
• Mean SSIM: 0.921

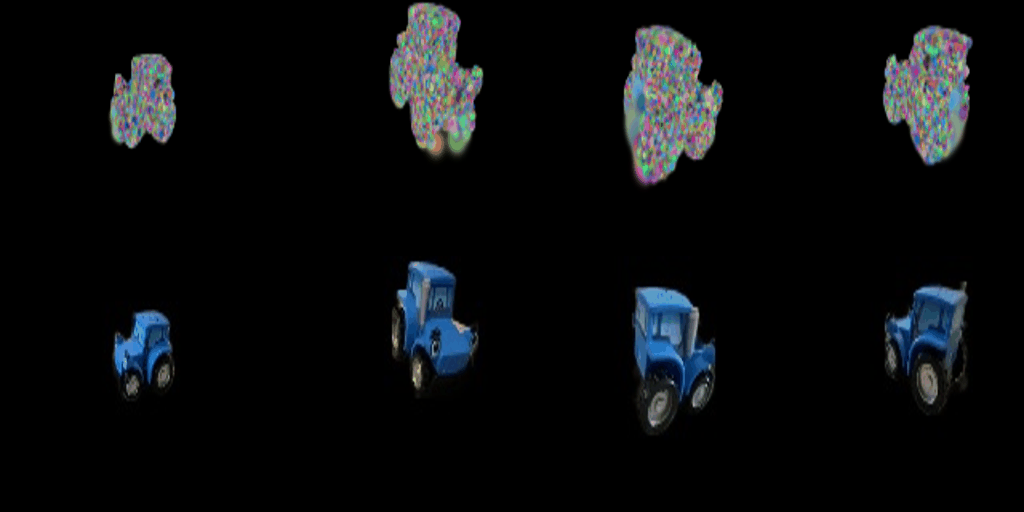

Training Progress (Top: Predicted, Bottom: GT)
Final Trained Renderings
1.3.1 Rendering Using Spherical Harmonics
Submission: GIF from 1.3.1 and 1.1.5, 2-3 side-by-side comparisons with
explanations

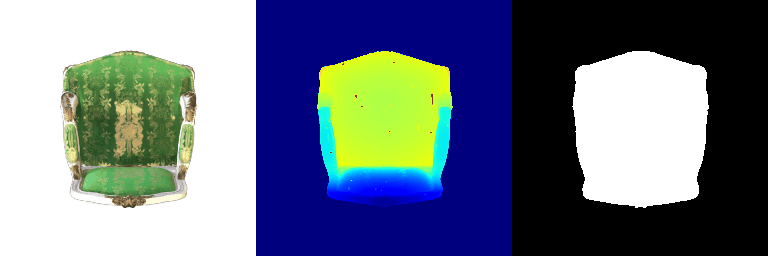

WITH Spherical Harmonics (Q1.3.1)

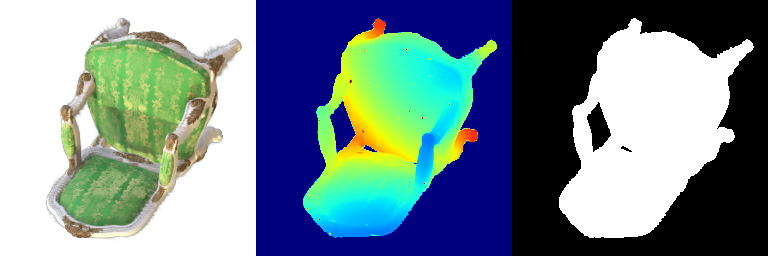

WITHOUT Spherical Harmonics (Q1.1.5 - DC only)

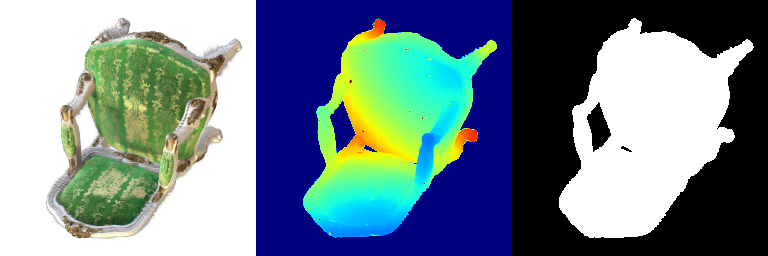

Frame 13 - With SH
Frame 13 - Without SH
Comparison 1 Analysis:
In Frame 13, the version without Spherical Harmonics shows the sitting part of the chair with a uniform color,
lacking any shadow variation. The top-right part appears brighter as it's exposed to light, but the transition
is flat. With Spherical Harmonics, we see a clear shadow on the sitting surface, realistically showing how the
chair's structure blocks the light source, creating natural depth and lighting interaction.

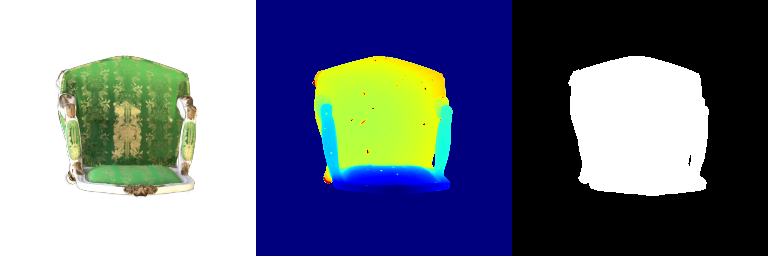

Frame 16 - With SH

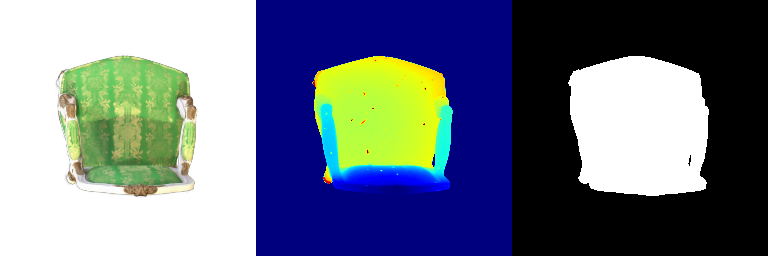

Frame 16 - Without SH
Comparison 2 Analysis:
In Frame 16, the rendering without Spherical Harmonics continues to show uniform coloring on the sitting
surface, with the top part appearing brighter but lacking realistic shadow integration. With Spherical Harmonics
enabled, the sitting part clearly demonstrates shadowing effects where the chair blocks its own light source,
creating a cohesive lighting story with proper brightness and shadow interaction across the surface.
1.3.2 Training On a Harder Scene
Submission: Follow Q1.2 format + baseline comparison + modification
explanations
Baseline Results
Baseline Configuration (same as Q1.2):
• Isotropic Gaussians
• Random initialization
• Learning rates: position=0.00016, opacity=0.05, scaling=0.005, rotation=0.001
• Mean PSNR: 18.456
• Mean SSIM: 0.385
• Isotropic Gaussians
• Random initialization
• Learning rates: position=0.00016, opacity=0.05, scaling=0.005, rotation=0.001
• Mean PSNR: 18.456
• Mean SSIM: 0.385
Improved Results
Improved Configuration:
• Learning rates: position=0.015, opacity=0.01, scaling=0.005, colours=0.02
• Number of iterations: 10,000
• Mean PSNR: 20.123
• Mean SSIM: 0.430
• Learning rates: position=0.015, opacity=0.01, scaling=0.005, colours=0.02
• Number of iterations: 10,000
• Mean PSNR: 20.123
• Mean SSIM: 0.430

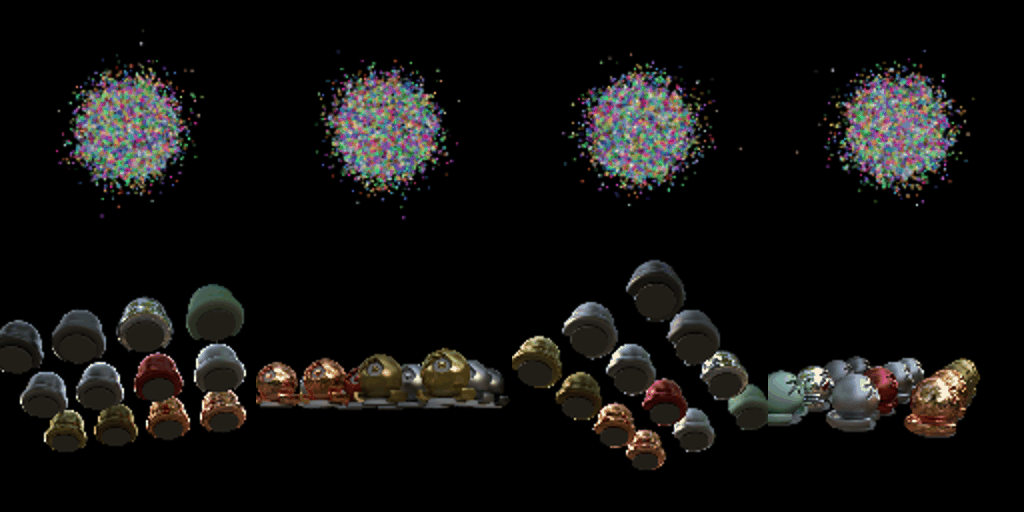

Training Progress on Materials Dataset
Final Renderings on Materials Dataset
Modifications Made to Improve Performance:
1. Increased Learning Rates - Position LR increased 94x (0.00016→0.015), colours LR increased 8x (0.0025→0.02)
2. Extended Training - 10,000 iterations instead of default 1,000
3. Loss Function Change - MSE loss instead of L1 for better high-frequency detail capture
4. Dataset Adaptation - NDC to screen camera conversion for NeRF-style datasets
Explanation: The materials dataset presents complex reflective surfaces and intricate textures that require more aggressive optimization. Higher learning rates enabled faster adaptation to complex material properties. MSE loss provided stronger gradients for capturing high-frequency details in reflective surfaces. Extended training allowed sufficient convergence time for the more challenging scene. Camera coordinate conversion ensured proper alignment with the NeRF-style dataset format. These changes collectively improved PSNR by 1.667 dB and SSIM by 0.045.
1. Increased Learning Rates - Position LR increased 94x (0.00016→0.015), colours LR increased 8x (0.0025→0.02)
2. Extended Training - 10,000 iterations instead of default 1,000
3. Loss Function Change - MSE loss instead of L1 for better high-frequency detail capture
4. Dataset Adaptation - NDC to screen camera conversion for NeRF-style datasets
Explanation: The materials dataset presents complex reflective surfaces and intricate textures that require more aggressive optimization. Higher learning rates enabled faster adaptation to complex material properties. MSE loss provided stronger gradients for capturing high-frequency details in reflective surfaces. Extended training allowed sufficient convergence time for the more challenging scene. Camera coordinate conversion ensured proper alignment with the NeRF-style dataset format. These changes collectively improved PSNR by 1.667 dB and SSIM by 0.045.
Part 2: Diffusion-guided Optimization
2.1 SDS Loss + Image Optimizatio
Submission: Show image output for 4 prompts (2 provided + 2 your choice), with
and without guidance, indicating iterations

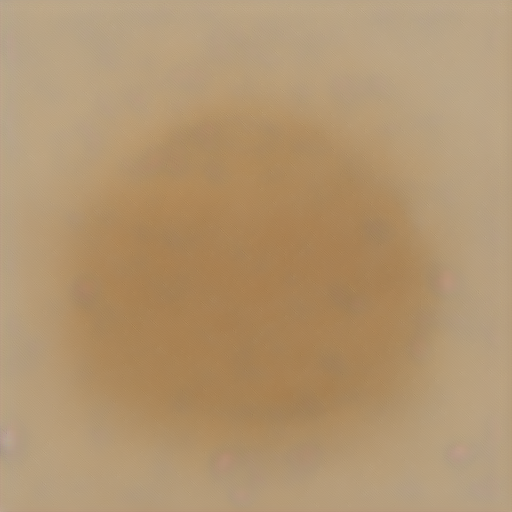

Prompt 1: "a hamburger"
Without Guidance (700 iterations)

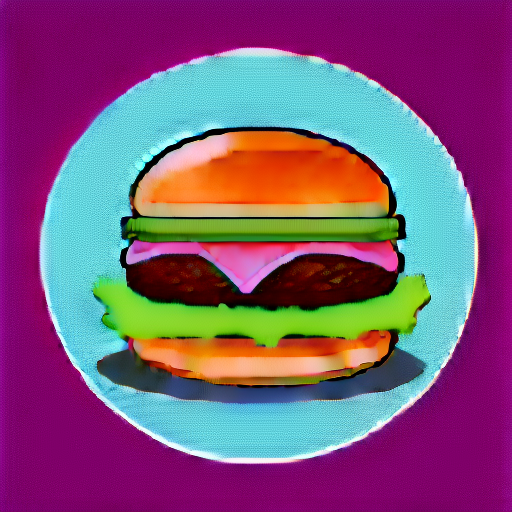

With Guidance (1100 iterations)
Prompt 2: "a standing corgi dog"

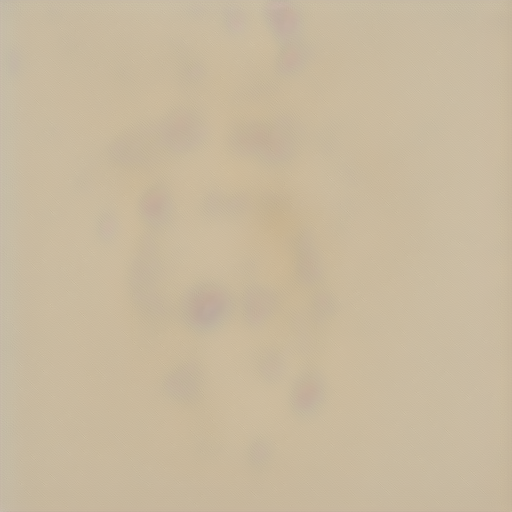

Without Guidance (600 iterations)

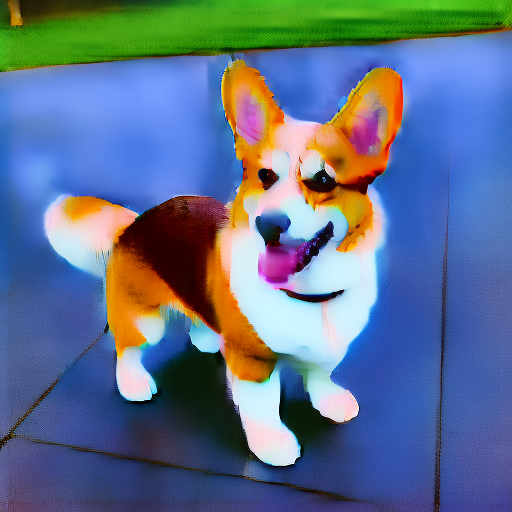

With Guidance (400 iterations)
Prompt 3: "A stranger things poster"
Without Guidance ( 1400 iterations)

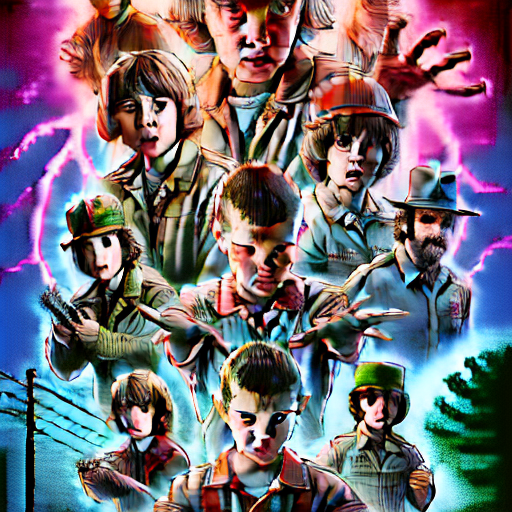

With Guidance (800 iterations)

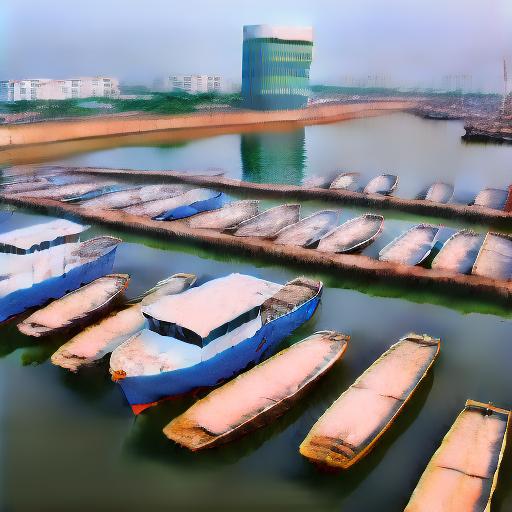

Prompt 4: "A view of Marina, Lagos"
Without Guidance (700] iterations)
With Guidance ([160] iterations)
2.2 Texture Map Optimization for Mesh
Submission: Show GIF of final textured mesh for 2 different text prompts

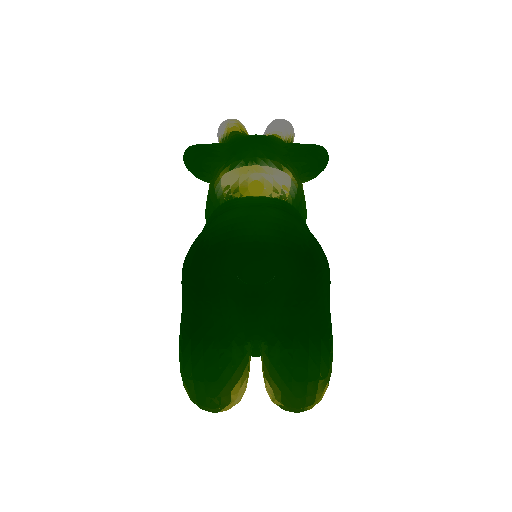

Prompt: "A deep forest green cow"

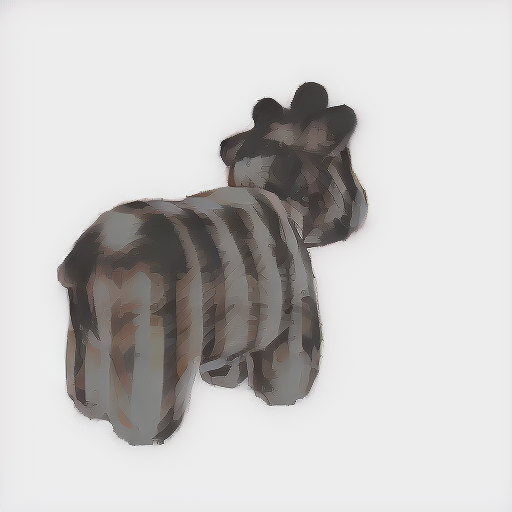

Prompt: "A zebra-striped cow"
2.3 NeRF Optimization
Submission: Show video of RGB and depth for 3 prompts (1 provided + 2 your
choice)
Hyperparameters Used:
• lambda_entropy: [YOUR VALUE]
• lambda_orient: [YOUR VALUE]
• latent_iter_ratio: [YOUR VALUE]
• lambda_entropy: [YOUR VALUE]
• lambda_orient: [YOUR VALUE]
• latent_iter_ratio: [YOUR VALUE]
Prompt 1: "a standing corgi dog"
RGB Rendering
Depth Map
Prompt 2: "A slice of watermelon"
RGB Rendering
Depth Map
Prompt 3: "A country-styled house"
RGB Rendering
Depth Map
2.4.1 View-dependent Text Embedding
Submission: Show video of RGB and depth for 2 prompts, compare with Q2.3,
analyze effects
Prompt 1: "a standing corgi dog"
RGB Rendering
Depth Map
Prompt 2: "A country-styled house"
RGB Rendering
Depth Map
Comparison with Q2.3:
The comparison with Q2.3 reveals significant improvements from view-dependent text conditioning. Without view dependence, the results appear blurry and lack coherent 3D structure, whereas view-dependent conditioning produces markedly sharper and more geometrically consistent outputs. For the house prompt, the door becomes clearly defined and properly oriented across views, while for the corgi dog, the tail exhibits stronger three-dimensional presence and maintains consistent visibility from appropriate angles. This enhancement demonstrates that view-dependent text conditioning effectively guides the optimization to respect 3D view consistency, resulting in more plausible and well-structured geometry compared to the ambiguous forms generated without this conditioning.
The comparison with Q2.3 reveals significant improvements from view-dependent text conditioning. Without view dependence, the results appear blurry and lack coherent 3D structure, whereas view-dependent conditioning produces markedly sharper and more geometrically consistent outputs. For the house prompt, the door becomes clearly defined and properly oriented across views, while for the corgi dog, the tail exhibits stronger three-dimensional presence and maintains consistent visibility from appropriate angles. This enhancement demonstrates that view-dependent text conditioning effectively guides the optimization to respect 3D view consistency, resulting in more plausible and well-structured geometry compared to the ambiguous forms generated without this conditioning.
