Learning for 3D Vision: Assignment 2

Single View to 3D

CMU 16825 Learning for 3D Vision

Tushar Nayak [tusharn]

Q1. Exploring Loss Functions

1.1 Fitting a voxel grid

Ground Truth

Optimized Voxel Grid

1.2 Fitting a point cloud

Ground Truth

Optimized Voxel Grid

1.1 Fitting a mesh

Ground Truth

Optimized Mesh

Reconstructing 3D from Single View

Image to Voxel Grid

Chair

Ground Truth: Mesh

Ground Truth: Voxel

Predicted Voxel Grid

Sofa

Ground Truth: Mesh

Ground Truth: Voxel

Predicted Voxel Grid

Chair with armrest

Ground Truth: Mesh

Ground Truth: Voxel

Predicted Voxel Grid

Image to Point Cloud

Chair

Ground Truth: Mesh

Ground Truth: Point Cloud

Predicted Point Cloud

Sofa

Ground Truth: Mesh

Ground Truth: Point Cloud

Predicted Point Cloud

Chair with armrest

Ground Truth: Mesh

Ground Truth: Point Cloud

Predicted Point Cloud

Image to Mesh

Chair

Ground Truth: Mesh

Predicted Voxel Grid

Sofa

Ground Truth: Mesh

Predicted Voxel Grid

Chair with armrest

Ground Truth: Mesh

Predicted Voxel Grid

Quantitative Comparison

The point cloud model achieved the strongest performance. Point clouds are easier to optimize because their points are independent and not bound by surface connectivity. This means that misplacing a single point has limited impact on the rest of the shape, enabling faster convergence and a simpler prediction process.

The mesh model performed better than the voxel model by numerical metrics, but was visually the least convincing. While vertex placement is generally reasonable for similar reasons to point clouds, the model struggles with predicting face orientations accurately maybe due to sampling size used in loss calculation which is smaller than the number of faces in both ground truth and predicted models, reducing loss informativeness. Additionally, its fixed spherical topology prevents accurate reconstruction of shapes with more complex surface structures, such as chairs with loops or holes.

The voxel model was worse than both point cloud and mesh. While it visually appears smoother and more complete than meshes, its low F1-score and low fine detail could be due to its coarse 32x32x32 resolution limits its ability to capture fine details.

F1-Score/Threshold and reported F1 Scores

for Voxel Grid (Score: 90.83)

for Point Cloud (Score: 95.98)

for Mesh (Score: 93.14)

Effects of hyperparameter variation

To combat the disjointedness of the mesh surfaces, 3 w_smooth parameters were attempted to get better results with values at 1, 3 and 5.

w_smooth = 1

Score: 91.255

w_smooth = 1

Score: 92.996

w_smooth = 1

Score: 92.996

Interpret your model

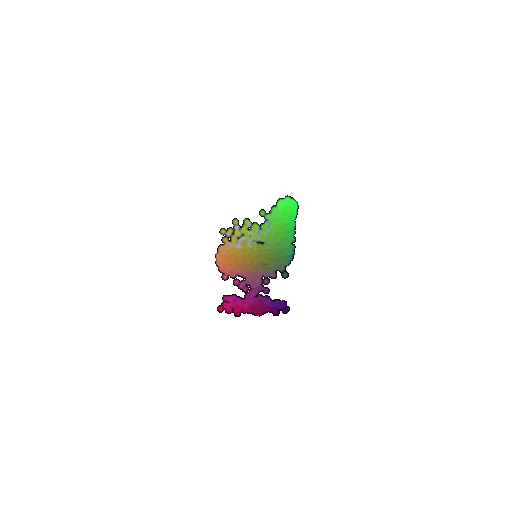

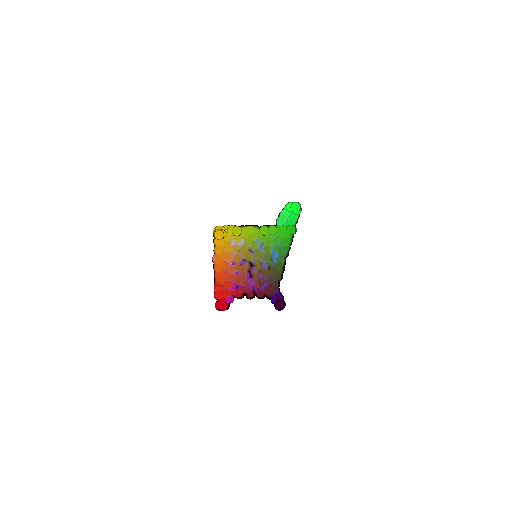

It starts at maximum loss with points scattered randomly, then progressively tightens as optimization minimizes a shape/registration objective, revealing the target point cloud structure. Early frames show high dispersion and unstable correspondences. Midway, clusters stabilize as gradients guide points toward consistent nearest-neighbor or transport matches. At convergence, motion is small and the cloud aligns with the intended geometry, reflecting reduced symmetric error typical in point-cloud evaluations.

Implicit Network
