Assignment 3: Neural Volume Rendering and Surface Rendering

A. Neural Volume Rendering

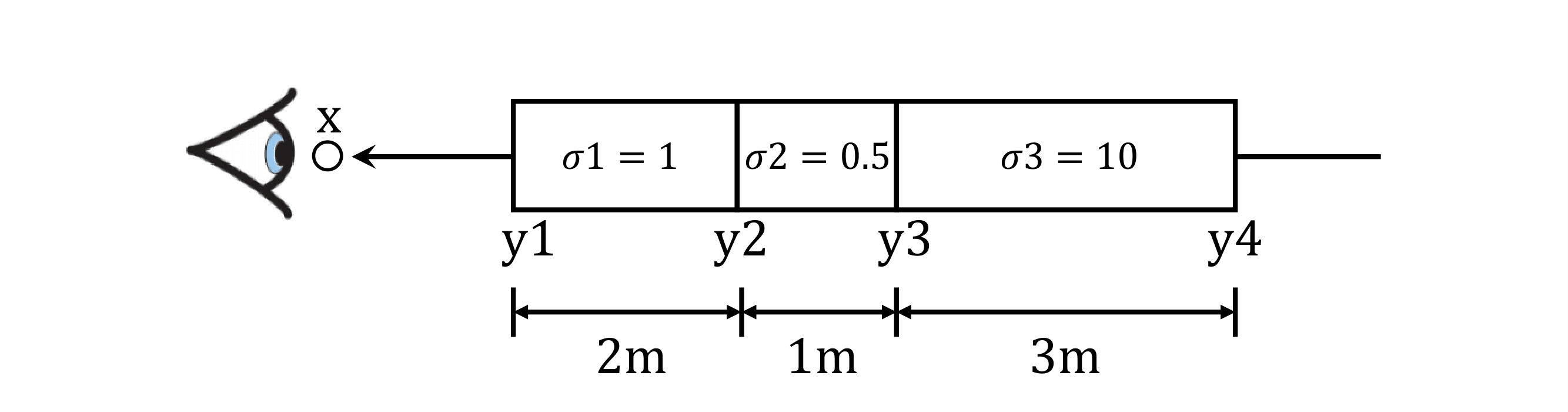

0. Transmittance Calculation

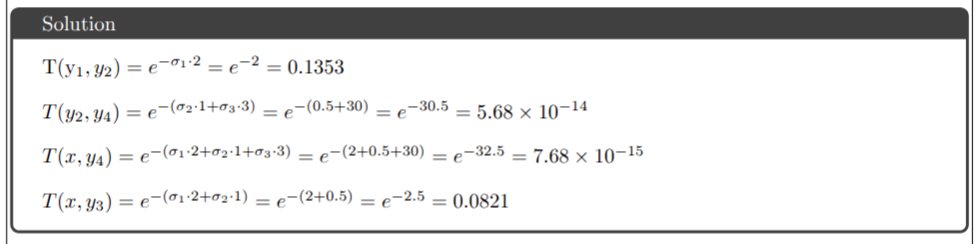

My solution:

1. Differentiable Volume Rendering

1.3 Ray Sampling (5 pts)

Implementation:
get_pixels_from_image generates a grid of pixel coordinates normalized to [-1, 1] in both axes, matching the TA's visual output.
get_rays_from_pixels maps these coordinates to points on the image plane at Z=1, then unprojects them to world space using the camera. Ray origins are set to the camera center, and directions are normalized from origin to world-space points.
The resulting rays match the TA's visualizations for both grid and ray outputs.

1.4 Point Sampling (5 pts)

Implementation:
The StratifiedSampler forward pass samples points along each ray between near and far planes, randomly perturbing each interval for smoother gradients. Stratified sampling ensures that points are distributed with randomness, improving training stability and rendering quality.

1.5 Volume Rendering (20 pts)

Implementation:
In VolumeRenderer, _compute_weights calculates weights as: wi = Ti * (1 - exp(-sigmai * delta_ti)) for each sample, where Ti is transmittance, sigmai is density, and delta_ti is interval length.
_aggregate accumulates color and depth along the ray using these weights. The forward method combines these steps for differentiable rendering.
Differentiable rendering allows inverse optimization by propagating gradients from rendered data back to scene parameters.

2. Optimizing a Basic Implicit Volume

3. Neural Radiance Field (NeRF)

4. NeRF Extras

Implementation:
Two NeRF networks are used: a coarse network samples points uniformly along each ray, and a fine network samples additional points based on the coarse network's output weights. The fine network thus focuses computation on regions with high density or color variation.
Trade-offs:

• Speed: Coarse sampling increases computation and memory usage, but allows the fine network to focus on important regions, reducing wasted samples.
• Quality: Fine sampling improves rendering quality, especially at object boundaries and regions with high detail, by allocating more samples where needed.

5. Sphere Tracing

6. Neural SDF Optimization

7. VolSDF

In the VolSDF formulation, the parameters α and β control the shape of the Laplace CDF-based opacity function that maps signed distances to volume densities. A larger α produces sharper surfaces by steepening the SDF-to-density transition, while a smaller α yields smoother, more diffuse boundaries. The β parameter acts as a scale factor, adjusting the global density magnitude and influencing transparency and rendering stability.

8. Neural Surface Extras

Implemented Large Scene reconstruction with multiple spheres of a given radius clustered in 3D space.
