HW2: Single-view Reconstruction

Q1: Camera matrix \(\mathbf{P}\) from 2D-3D correspondences

(a) Stanford Bunny

Description

Normalize the Coordinates

Compute a similarity transformation \(T\) such that the centroid of the points in the image is moved to the origin, and the maximum distance from the origin is scaled to \(\sqrt{2}\).

Formulate the Equation

For each pair of correspondences \((x,y,z)\) to \((u,v)\), expanding the equation \((\mathbf{P}(x,y,z,1)^T) \times (u,v,1)^T = 0\), we obtain the following expressions:

\[ x p_{11} + y p_{12} + z p_{13} + p_{14} - u x p_{31} - u y p_{32} - u z p_{33} - u p_{34} = 0 \]

\[ x p_{21} + y p_{22} + z p_{23} + p_{24} - v x p_{31} - v y p_{32} - v z p_{33} - v p_{34} = 0 \]

Combining these equations results in a linear equation for \(\mathbf{P}\).

Solve for \(\mathbf{P}\)

Using Singular Value Decomposition (SVD) to solve for \(\mathbf{P}\), the final result is given by \(\mathbf{T}^{-1} \mathbf{P}\).

Output Images

Input Image Annotated 2D points Surface Points Bounding Box

(b) Cuboid

Description

Use the same function as in question (a) to derive \(\mathbf{P}\). By drawing the middle lines of each face of the cube and coloring each face with different colors, we create a cube that resembles a fidget cube.

Output Images

Input Image Annotated 2D points Result

Q2: Camera calibration \(\mathbf{K}\) from annotations

(a) Camera calibration from vanishing points

Description

Compute Vanishing Points

We can easily compute the vanishing points of the 3 pairs of parallel lines using the cross product operation.

Formulate the Equation for \(\omega\) and Solve for \(\omega\)

Let

\[ \omega = \begin{bmatrix} a & 0 & b \\ 0 & a & c \\ b & c & d \end{bmatrix} \]

For each pair of vanishing points \(\mathbf{x} = (x_0, x_1, x_2)\) and \(\mathbf{y} = (y_0, y_1, y_2)\) corresponding to perpendicular directions, we have the equation \(\mathbf{x}^T \omega \mathbf{y} = 0\). Expanding this, we get:

\[ (x_0 y_0 + x_1 y_1) a + (x_0 y_2 + x_2 y_0) b + (x_1 y_2 + x_2 y_1) c + x_2 y_2 d = 0 \]

Combining these equations results in a linear equation for \(\mathbf{P}\).

We then use SVD to solve for \(\omega\).

Compute \(\mathbf{K}\)$

We use Cholesky decomposition to compute \(\mathbf{K}\). Let \(\omega = \mathbf{L} \mathbf{L}^T\), then \(\mathbf{K}\) is given by \(\mathbf{L}^{-T}\). The principal point is the last column of \(\mathbf{K}\).

Output Images

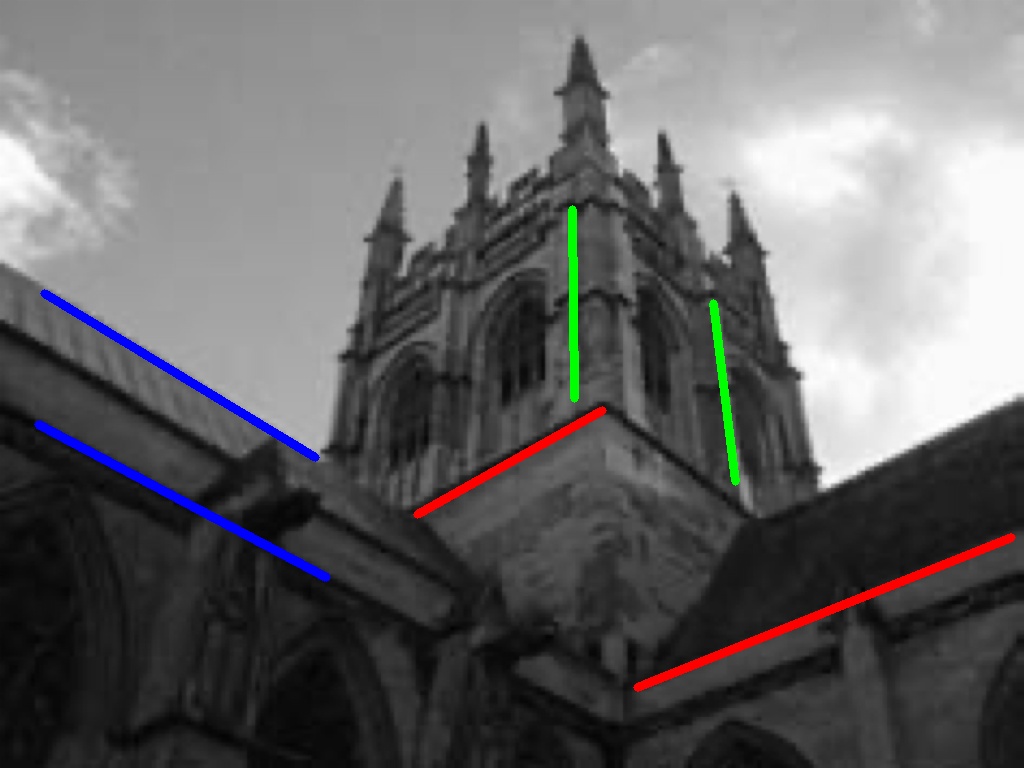

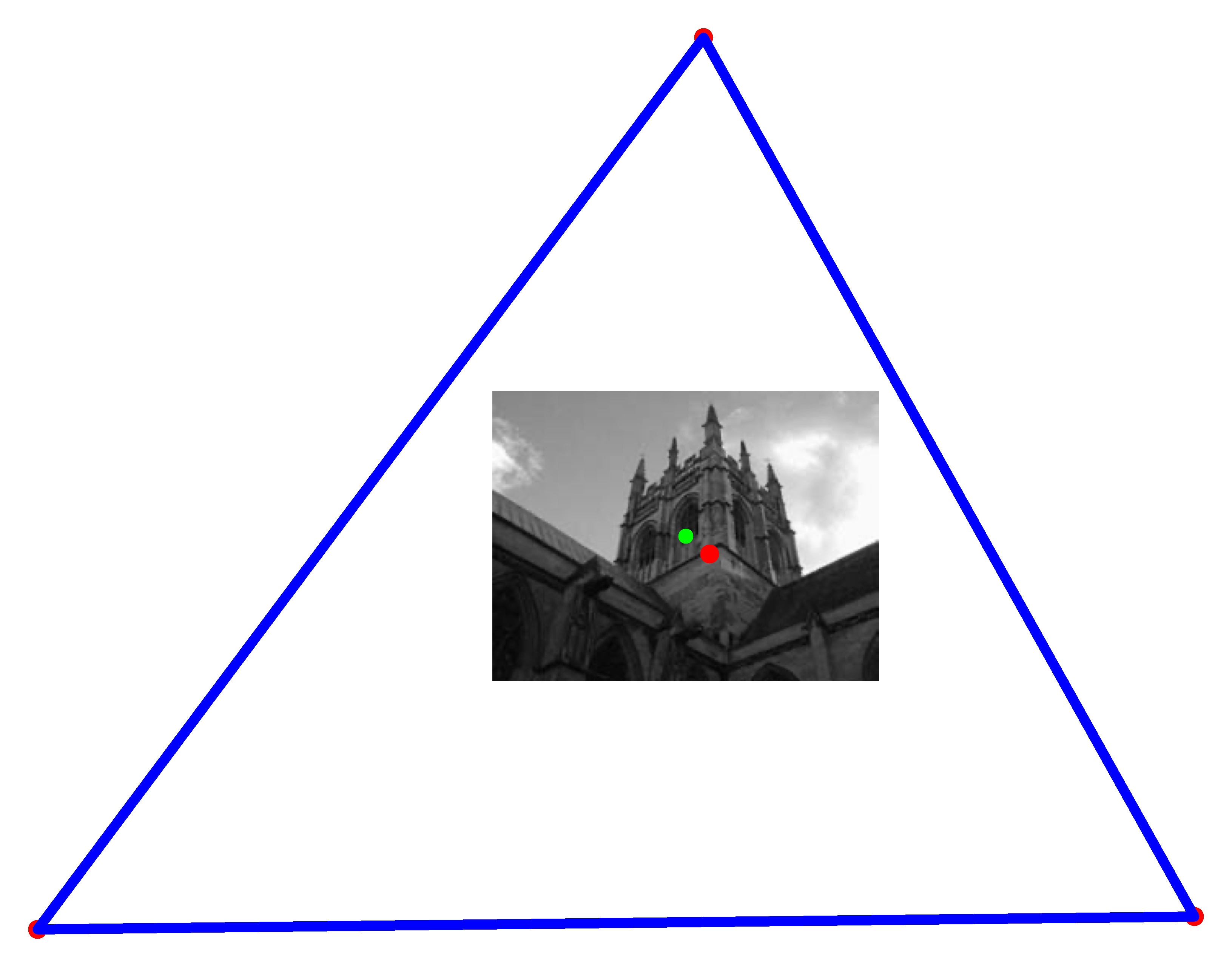

Input Image Annotated Parallel Lines Vanishing points and principal point

The output \(\mathbf{K}\) is

\[ \begin{bmatrix} 1154.18 & 0 & 575.07 \\ 0 & 1154.18 & 431.94 \\ 0 & 0 & 1 \end{bmatrix} \]

(b) Camera calibration from metric planes

Description

Normalize the cooridinates

Normalize the cooridiantes of the image so that all pixels in the image is in the range of [-1,1]

Compute Homography

We compute the homography \(\mathbf{H}\) from a square on the plane to the square in the image using the 4 annotations of the square.

Formulate the Equation for \(\omega\) and Solve for \(\omega\)

Let

\[ \mathbf{H} = [\mathbf{h}_1, \mathbf{h}_2, \mathbf{h}_3] \]

Using the fact that \(\mathbf{H}\mathbf{I}\) lies on the conic \(\omega\), we have:

\[ (\mathbf{h}_1 \pm i \mathbf{h}_2)^\mathsf{T} \boldsymbol{\omega} (\mathbf{h}_1 \pm i \mathbf{h}_2) = 0 \]

Therefore, we derive the following conditions:

\[ \mathbf{h}_1^\mathsf{T} \boldsymbol{\omega} \mathbf{h}_2 = 0 \]

\[ \mathbf{h}_1^\mathsf{T} \boldsymbol{\omega} \mathbf{h}_1 = \mathbf{h}_2^\mathsf{T} \boldsymbol{\omega} \mathbf{h}_2 = 0 \]

Combining all these equations results in a linear equation for \(\omega\), which we solve using SVD.

Compute \(\mathbf{K}\)

The procedure to compute \(\mathbf{K}\) is the same as in question (a).

Compute the Angle Between Points

For a plane \(\pi\), we first find the horizontal line \(\mathbf{l}\) of \(\pi\) by finding the vanishing points of two pairs of parallel lines. The normal direction \(\mathbf{n}\) of \(\pi\) is then given by \(\omega^{-1} \mathbf{l}\). The angle between two planes is given by:

\[ \cos(\theta) = \frac{\mathbf{n}_1^\mathsf{T} \omega \mathbf{n}_2}{\sqrt{\mathbf{n}_1^\mathsf{T} \omega \mathbf{n}_1} \sqrt{\mathbf{n}_2^\mathsf{T} \omega \mathbf{n}_2}} \]

Output Images

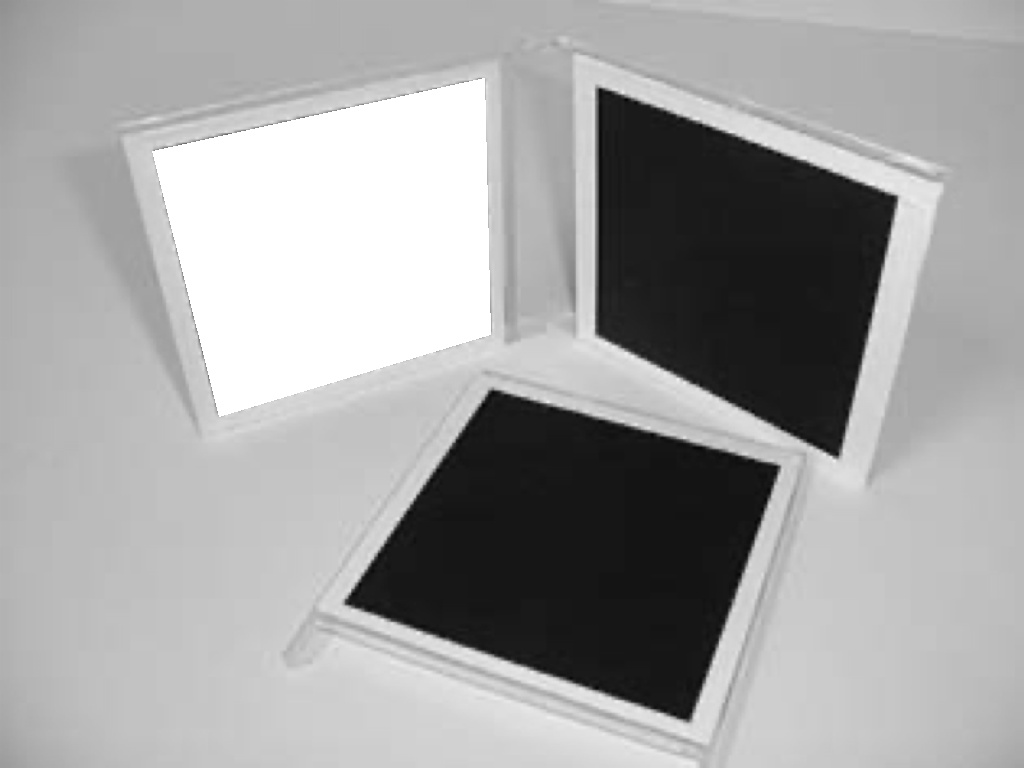

Input Image Annotated Square 1 Annotated Square 2 Annotated Square 3
Angle between planes(degree)
Plane 1 & Plane 2 67.41
Plane 1 & Plane 3 92.25
Plane 2 & Plane 3 94.76

The output \(\mathbf{K}\) is

\[ \begin{bmatrix} 1079.99 & -8.27 & 515.42 \\ 0 & 1078.14 & 399.70 \\ 0 & 0 & 1 \end{bmatrix} \]

(c) Camera calibration from rectangles with known sizes

Description

The procedure is the same as (b), except that we compute the homography from a rectangle on the plane to the rectangle in the image.

Output Images

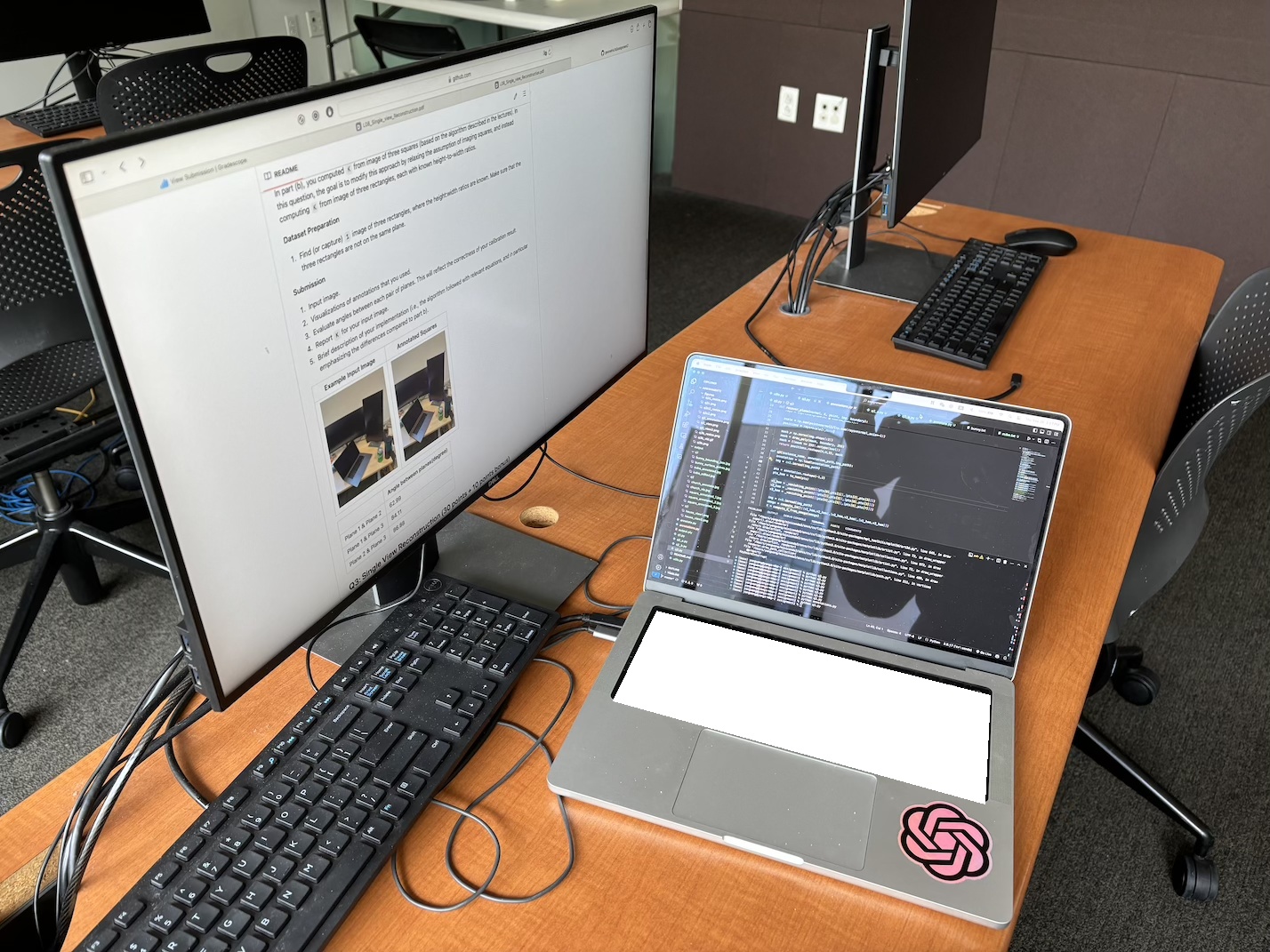

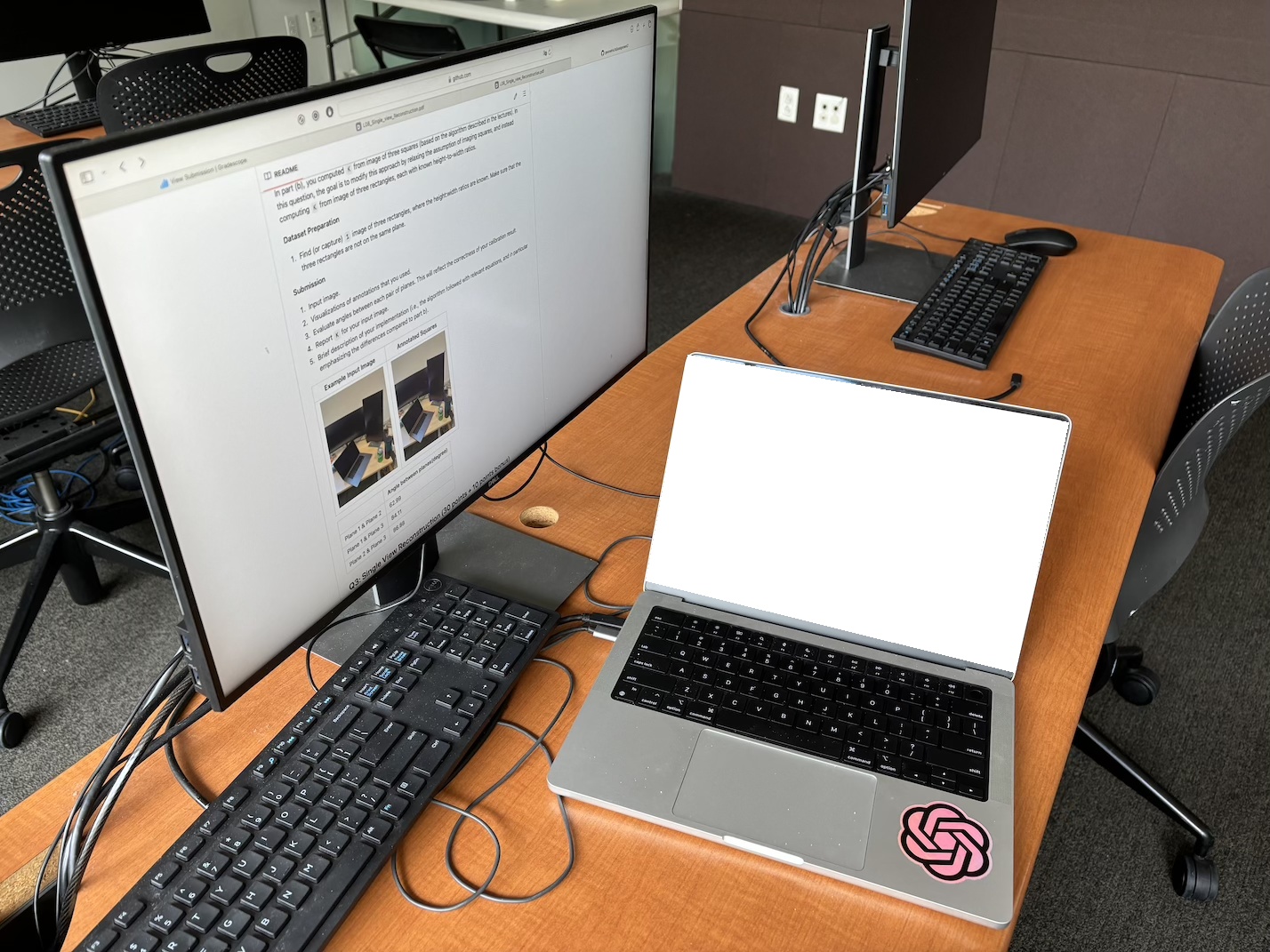

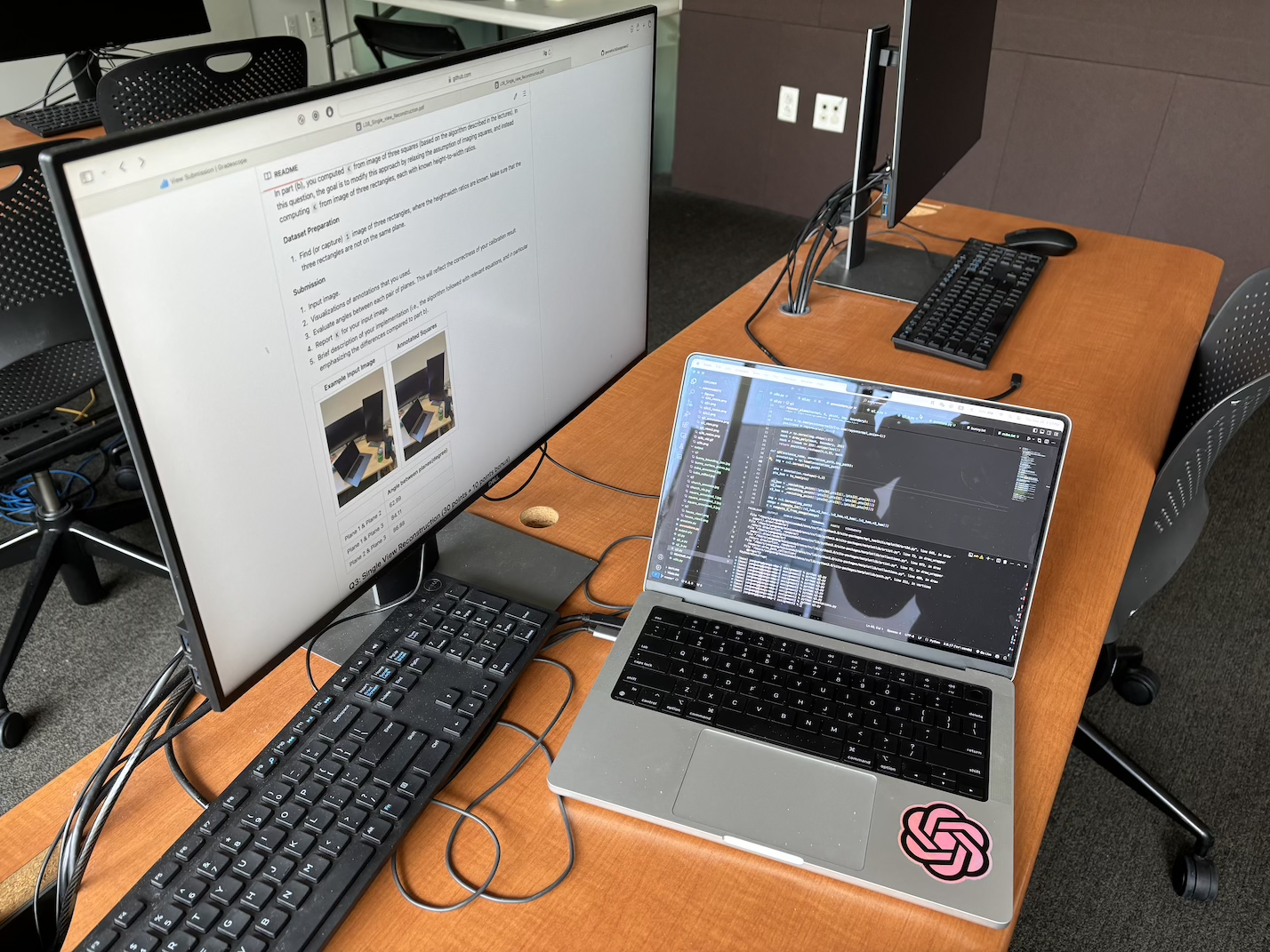

Input Image Annotated Rectangle 1 Annotated Rectangle 2 Annotated Rectangle 3
Angle between planes(degree)
Plane 1 & Plane 2 94.12
Plane 1 & Plane 3 88.94
Plane 2 & Plane 3 121.72

The output \(\mathbf{K}\) is

\[ \begin{bmatrix} 1127.83 & 24.74 & 742.33 \\ 0 & 1117.23 & 576.02 \\ 0 & 0 & 1 \end{bmatrix} \]

Q3: Single View Reconstruction

(a)

Description

  1. Compute \(\mathbf{K}\) using the method from question 2(a).

  2. Compute the ray for each pixel using the formula \(\mathbf{d} = \mathbf{K}^{-1} \mathbf{x}\).

  3. Compute the normal of each annotated plane by determining the vanishing points for 2 sets of parallel lines on the plane.

  4. If the position of a point on the plane is known, the 3D coordinates of all points on the plane can be computed via ray-plane intersection.

By repeating step 4, the 3D position of each point in the image can be constructed.

Output Images

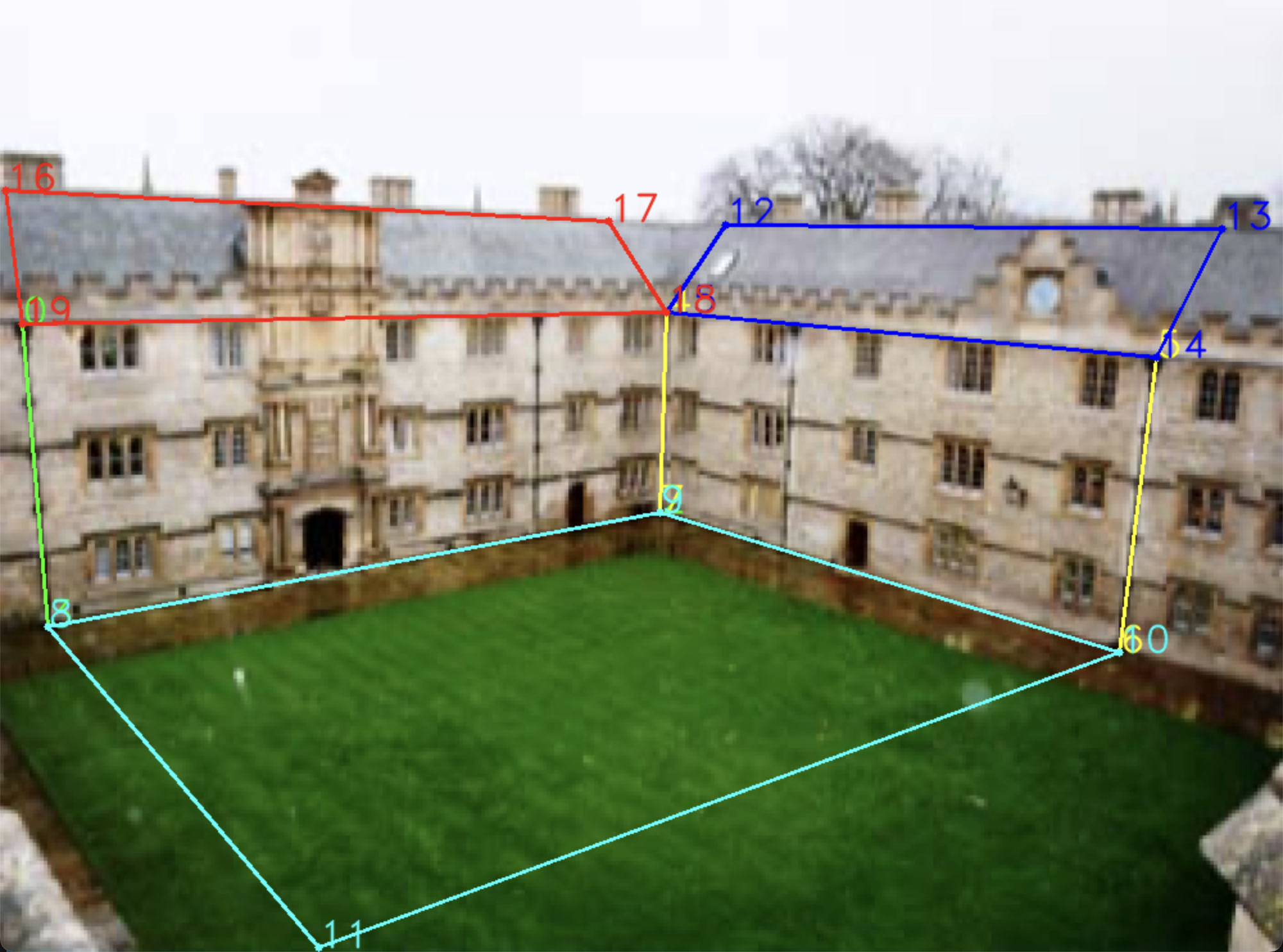

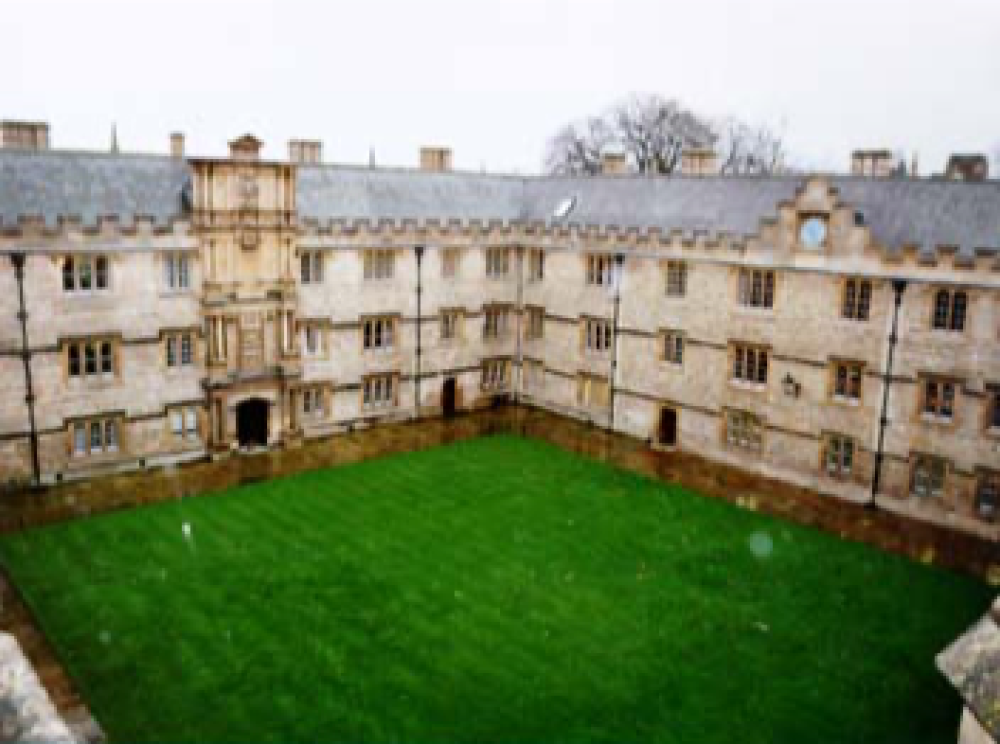

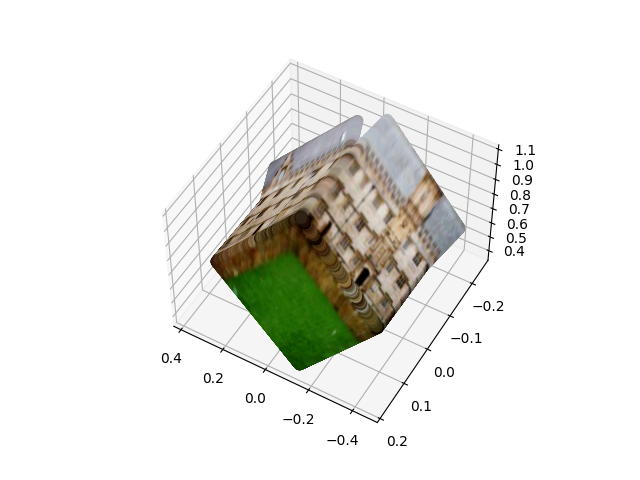

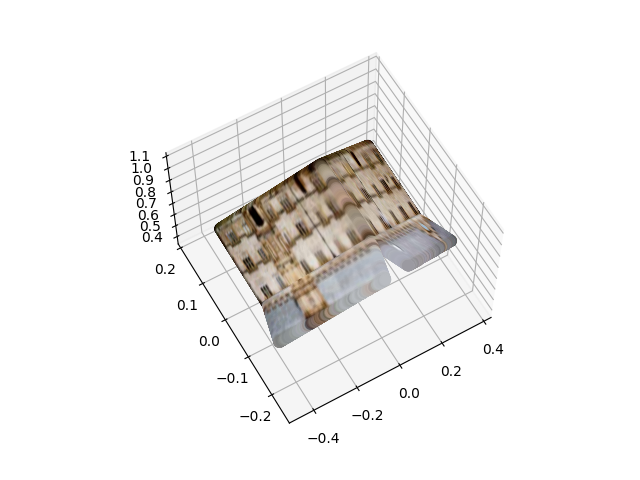

Input Image Annotations Reconstruction View 1 Reconstruction View 2

(b)

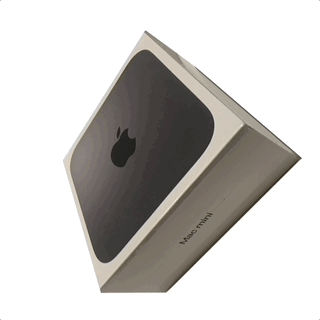

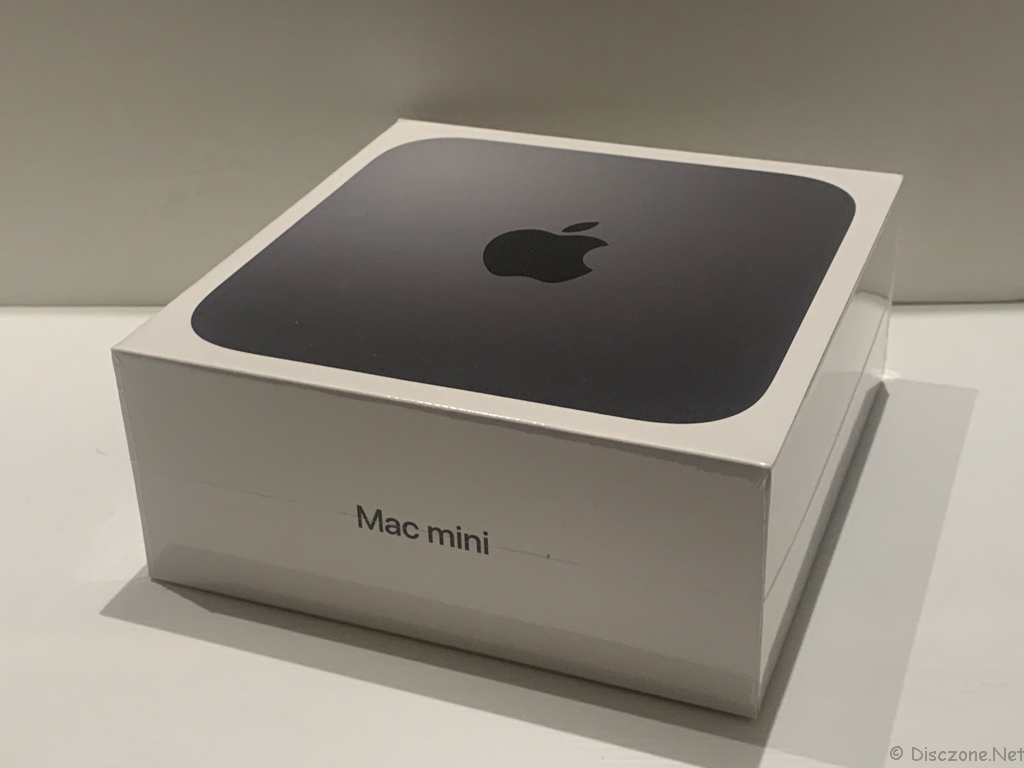

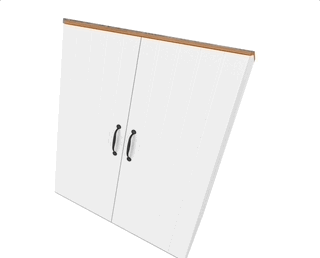

Input Image Output
