16-822: Geometry Based Methods in Vision¶
Assignment 2: Single View Reconstruction¶
Q1: Camera matrix from 2D-3D correspondences¶

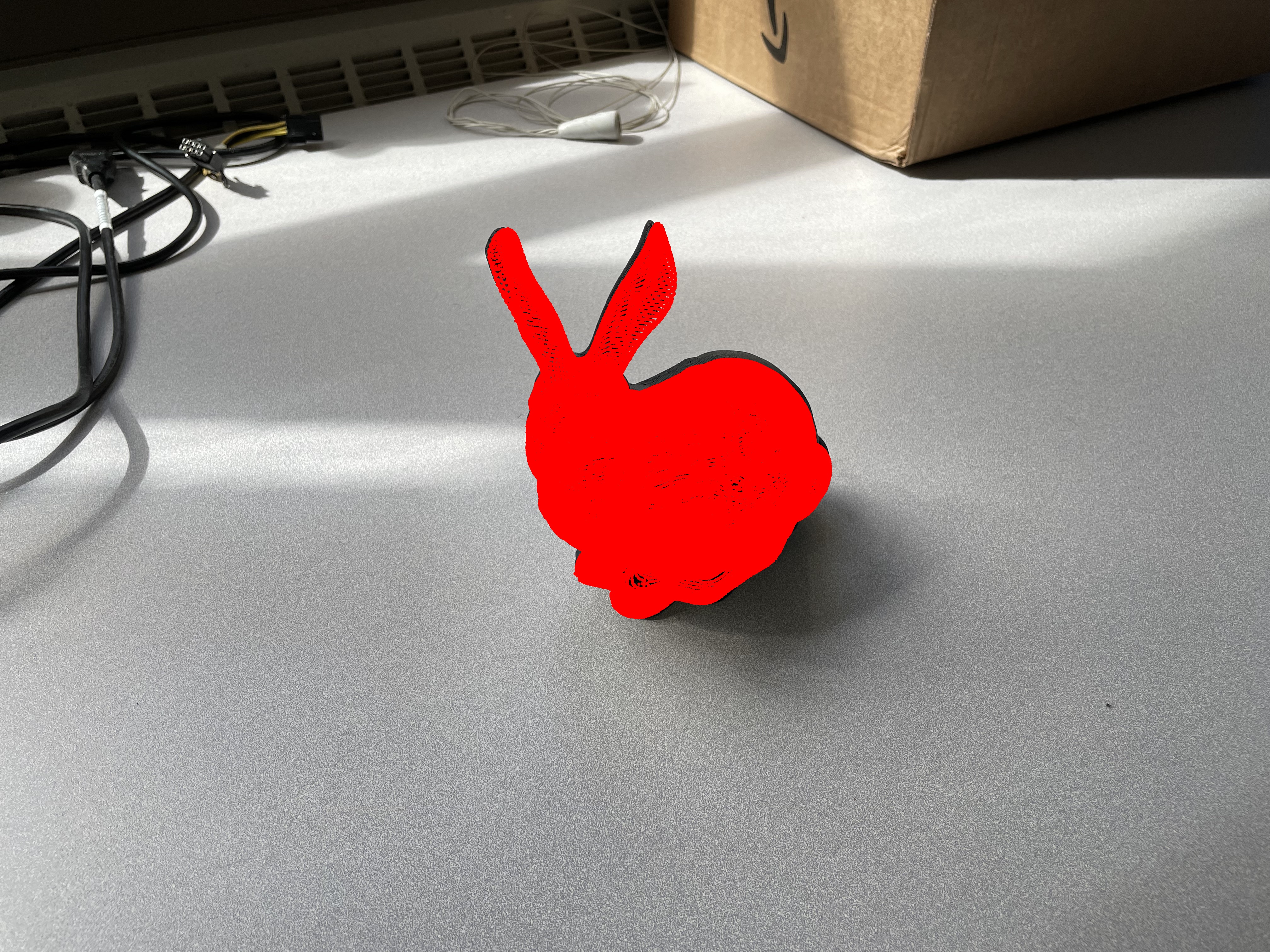

(a) Stanford Bunny¶
| Surface Points | Bounding Box |
|---|---|
 |
 |

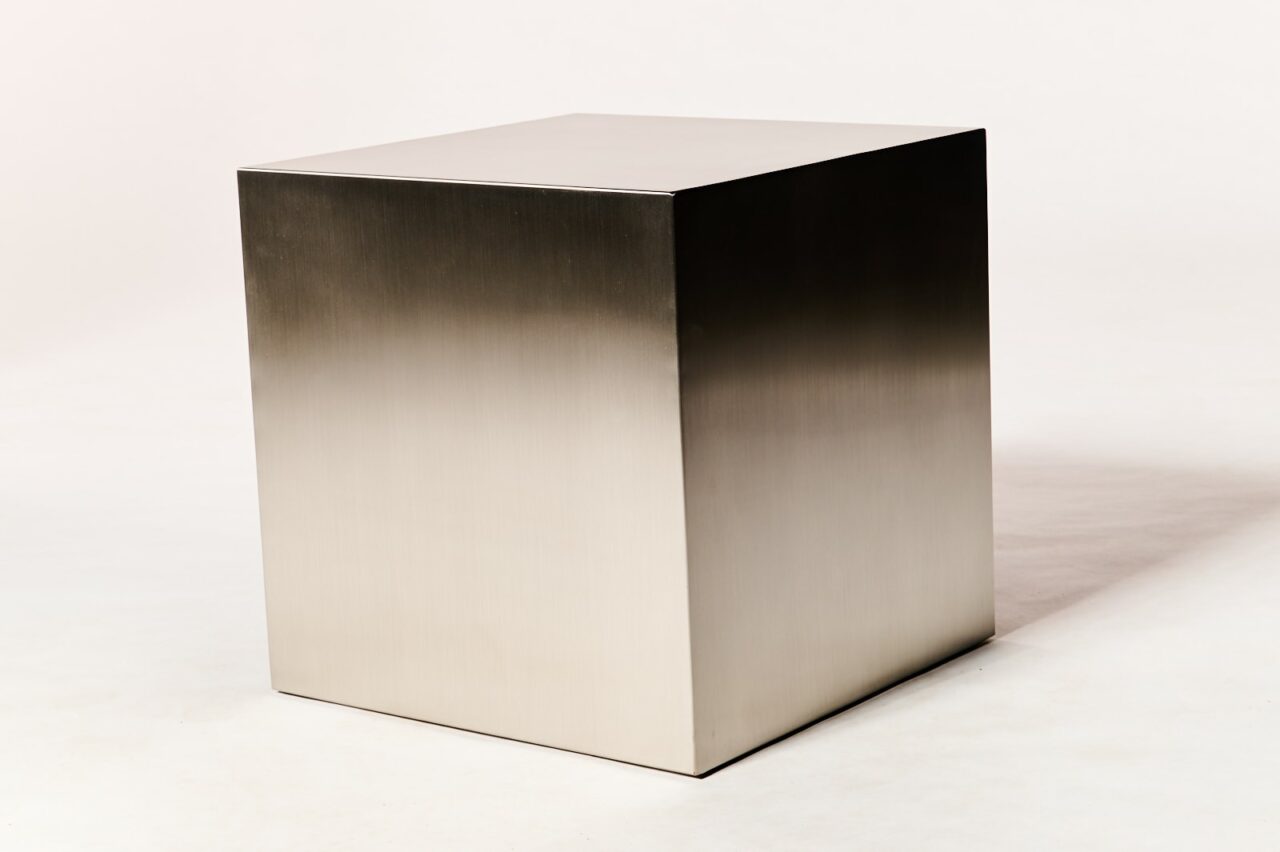

(a) Cube¶
Coordinate system: The corner at the bottom center of the image is taken as the origin. The edge on the right is the x-axis, the edge on the left is the y axis, and the perpendicular edge is the z-axis.

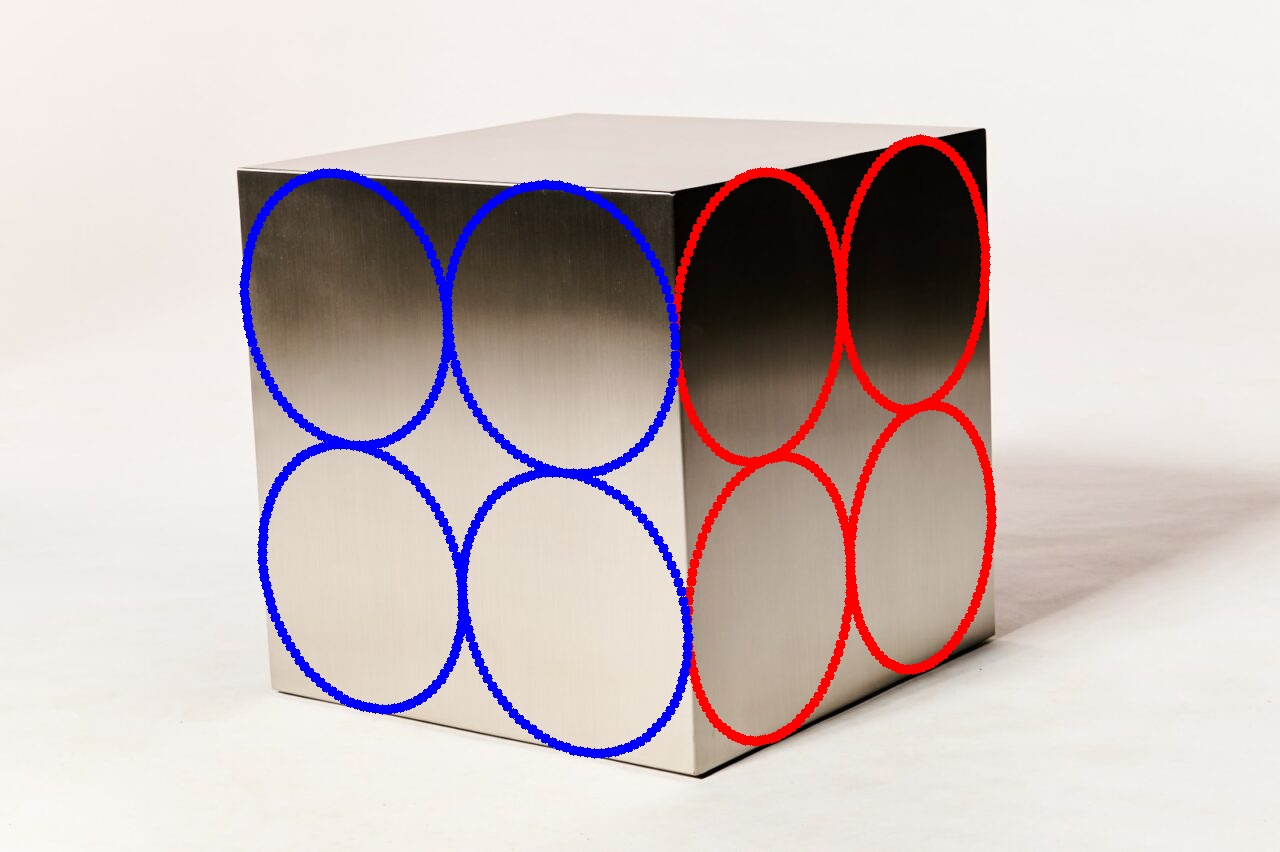

| Input Image | Annotated 2D Points | Result |
|---|---|---|
 |
 |
 |
Q2: Intrinsics from Annotations¶
(a) Camera calibration from vanishing points¶
Algorithm:
- Compute vanishing points using cross product
- Use the relation that $x_1^T \omega x_2 = 0$ for vanishing points $x_1$ and $x_2$ where $\omega = K^{-T}K^{-1}$
- Solve for $\omega$ by creating a system of linear equations of the form $Ax = b$
- Use Cholesky decomposition to get $K^{-1}$, invert it to get $K$
Equations:
Since $K$ is an intrinsics matrix with zero skew and square pixels, it is of the form
$$ K = \begin{bmatrix} f & 0 & px \\ 0 & f & py \\ 0 & 0 & 1 \end{bmatrix} $$This means $K^{-T}K^{-1}$ is of the form $$ K^{-T}K^{-1} = \begin{bmatrix} a & 0 & b \\ 0 & b & c \\ b & c & d \end{bmatrix} $$ Using this, we can rewrite $x_1^T \omega x_2 = 0$ as $Ax = b$ and solve. For points $(x_1, y_1, w_1)$ and $(x_2, y_2, w_2)$, each constraint is of the form $$ \begin{bmatrix} x_1x_2 + y_1y_2 & x_1w_2 + w_1x_2 & y_1w_2 + y_2w_1 \end{bmatrix} \begin{bmatrix} a \ b \ c \end{bmatrix} = -w_1w_2 $$

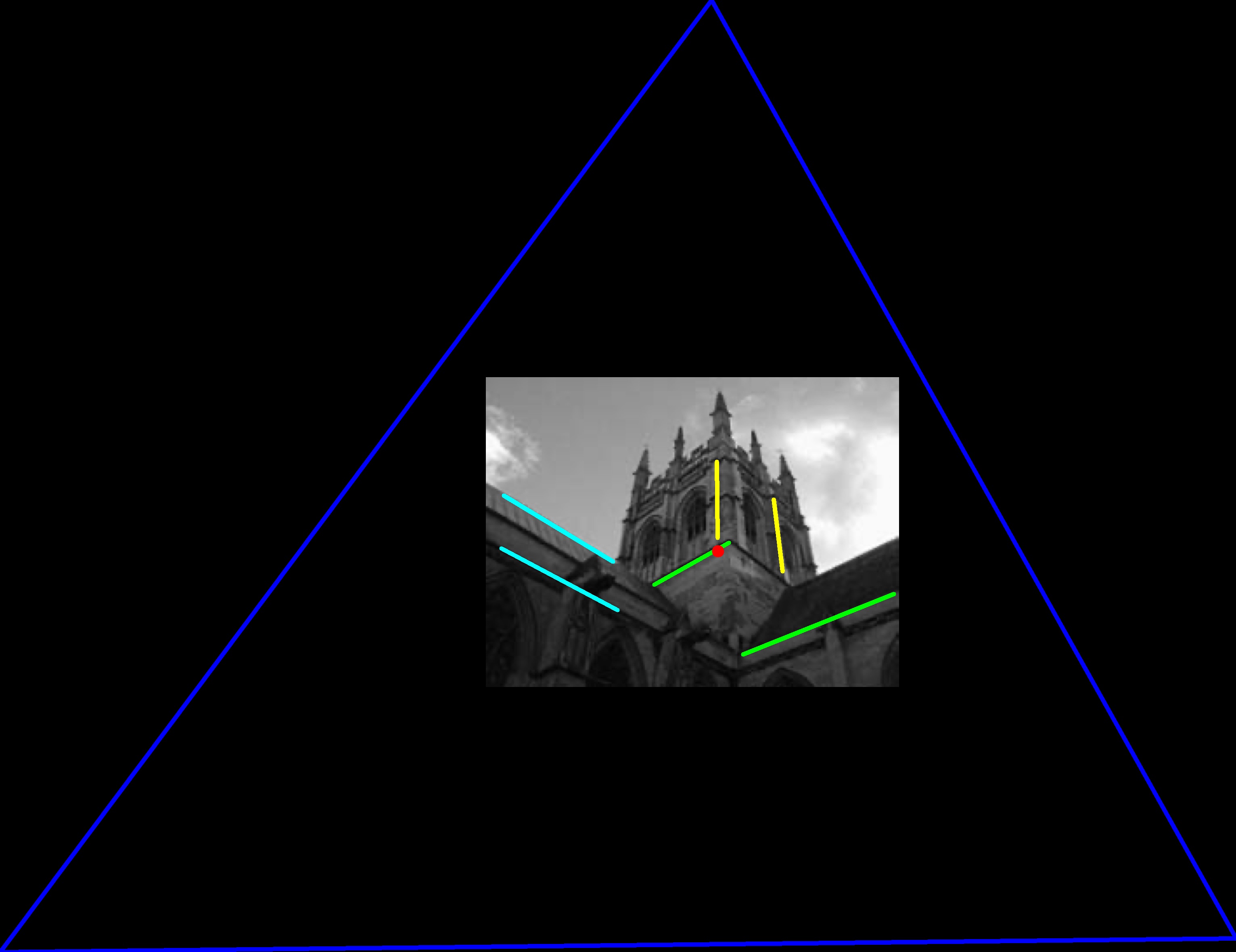

| Input Image | Annotated 2D Points | Vanishing points and principal point |
|---|---|---|
 |
 |
 |
(b) Camera calibration from metric planes¶
Algorithm:
- Find a homography which would convert a unit square centered at (0.5,0.5) to the annotated squares
- For each homography, use the constraints $h_1^T \omega h_2 = 0$ and $h_1^T \omega h_1 = h_2^T \omega h_2$ where $h_i$ is the ith column of the H matrix
- Arrange the constraints in a matrix to generate a system of equations of the form $Ax = 0$
- Perform SVD of $A$ and use the last singular vector as $\omega$
- Use Cholesky decomposition to get $K^{-1}$, invert it to get $K$
Equations:
Since we know nothing about $K$, we $\omega$ matrix is of the form $$ K = \begin{bmatrix} a & b & d \\ b & c & e \\ d & e & f \end{bmatrix} $$ For each $h_1 = (x_1, y_1, w_1)$ and $h_2 = (x_2, y_2, w_2)$, we get $$ \begin{bmatrix} x_1x_2 & x_1y_2 + y_1x_2 & y_1y_2 & x_1w_2 + w_1x_2 & y_1w_2 + w_1y_2 & w_1w_2 \\ x_1^2-x_2^2 & 2(x_1y_1-x_2y_2) & y_1^2 - y_2^2 & 2(x_1w_1 - x_2w_2) & 2(y_1w_1 - y_2w_2) & w_1^2-w_2^2 \end{bmatrix} \begin{bmatrix} a \\ b \\ c \\ d \\ e \\ f \end{bmatrix} = 0 $$

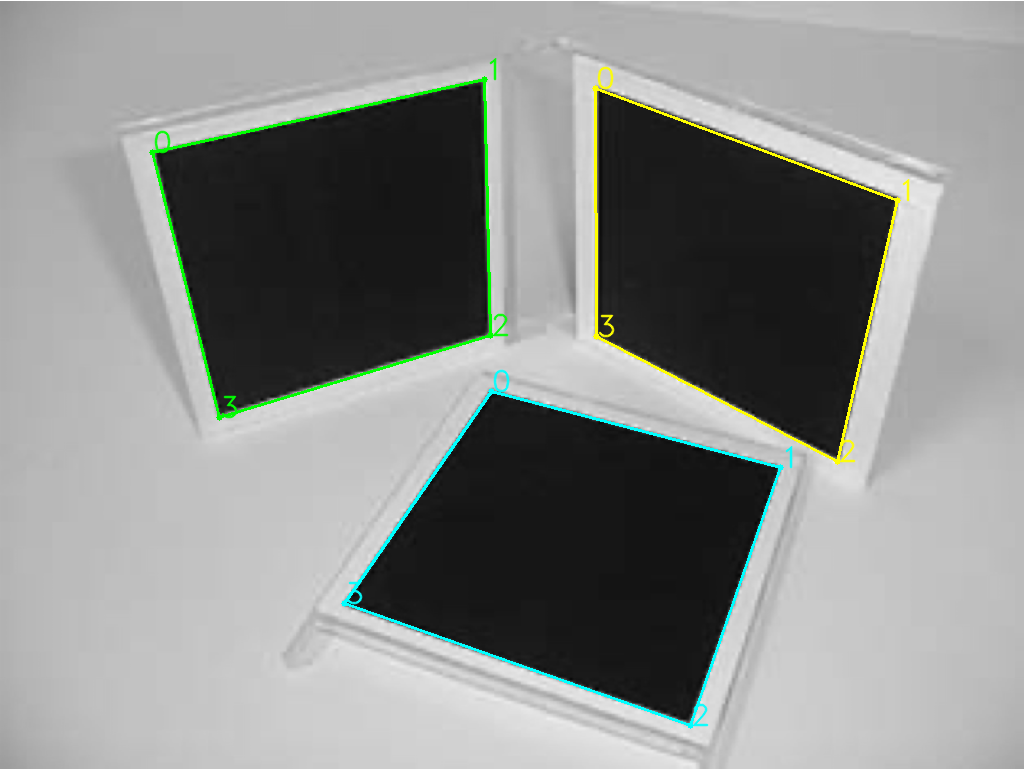

| Input Image | Annotated Squares |
|---|---|
 |
 |
| Angle | |
|---|---|
| Plane 1 & 2 | 67.603 |
| Plane 2 & 3 | 94.805 |
| Plane 1 & 3 | 92.250 |
Q3: Single View Reconstruction¶
Algorithm:
- Find the direction vectors of two sides for each plane by finding the vanishing point
- Perform cross product to get the direction of the normal in the camera frame
- Set the distance of the first corner of the first plane to an arbitrary number
- Use this distance to find the complete equation of the plane
- Since the first plane intersects all other planes, use common points to find the complete equation of the other planes
- For each plane, get all the pixels corresponding to it and find the ray-plane intersection for each pixel to get the point cloud
Equations:
- Ray direction: $K^{-1}x$ where $x$ is a 2D homogeneous point
- Ray-plane intersection $t = \frac{-d} {(n_x \cdot x + n_y \cdot y + n_z \cdot z)} $ where $n$ is the normal vector and $\begin{bmatrix} x & y & z \end{bmatrix}$ is the ray direction.

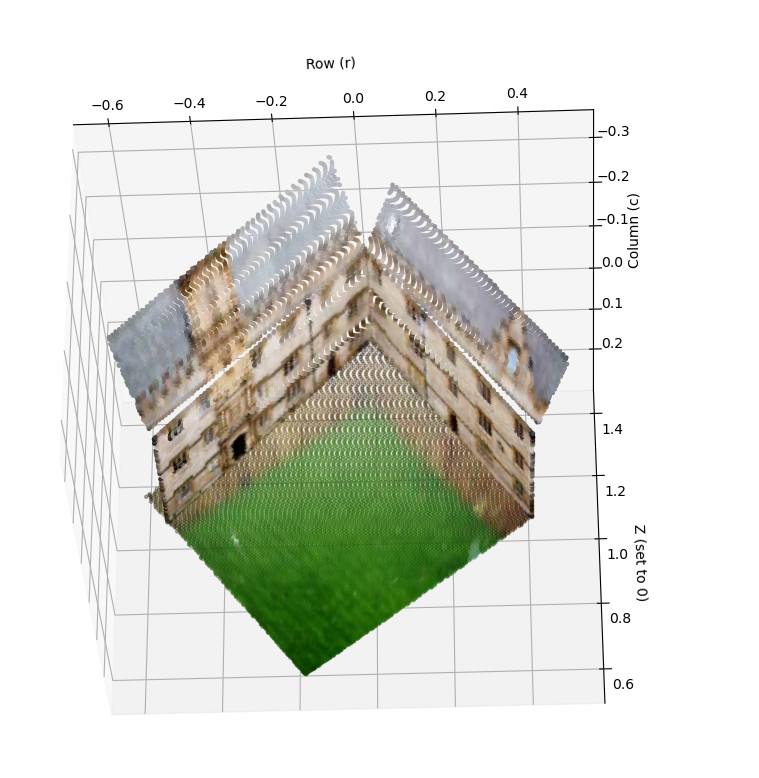

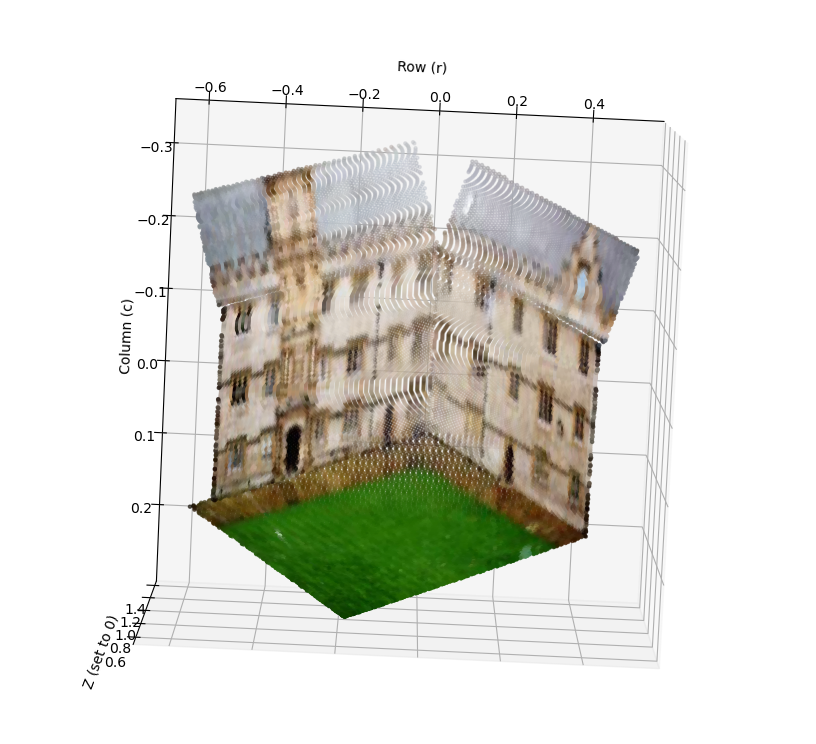

| Input Image | Annotation | View 1 | View 2 |
|---|---|---|---|
 |
 |
 |
 |
Note: Point count was reduced to prevent lag
