16822 Assignment 3

Andrew ID: aniketa

Q1 8-point and 7-point algorithm

(A1) F-matrix using 8-point algorithm

• Normalizing input points for better numerical stability

• Constructing a matrix A from point correspondences

• Using Singular Value Decomposition (SVD) to compute the fundamental matrix

• Applying normalization transformations

• Final refinement and scaling of the matrix

(A2) E-matrix using 8-point algorithm

E = K_2.T @ F @ K1
(Normalization) E = E / E[2][2]

E for bench image:

-0.5747829  -7.83445894   -2.498274892
 0.3987800   0.69067134    68.23290133
-2.6483098  -68.4885993    1.

E for remote:

.513789293   -0.789056178   7.66094837
-6.32447998  -3.13768466   -27.3297818
-13.79871092  24.79224781   1.

(B) 7-point algorithm

Method:

1. Normalize Points: Divide pts1, pts2 by M

2. Build Matrix A: Create rows from point pairs

3. Extract F1, F2: Use SVD on matrix A

4. Combine: F = a*F1 + (1-a)*F2

5. Solve: Find cubic polynomial roots

6. Refine: Apply T.T @ F @ T transformation

Q2 RANSAC with 7-point and 8-point algorithm

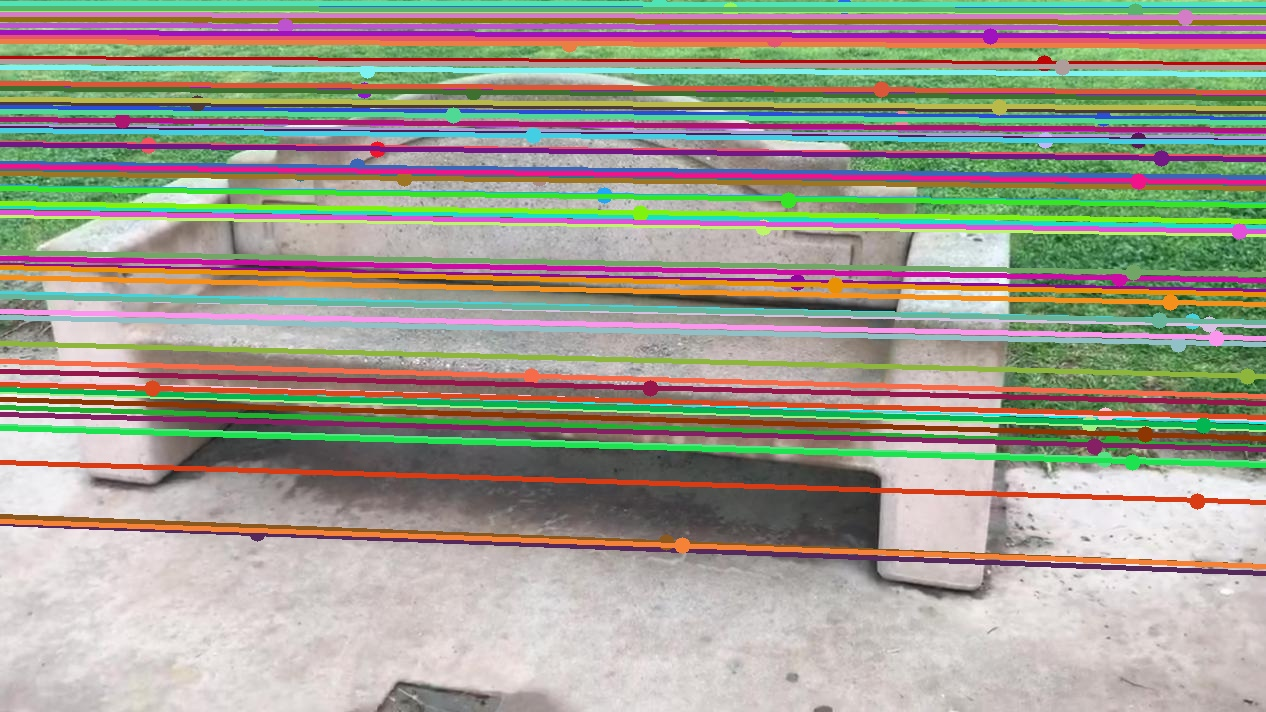

Bench:

8-point

7-point

Remote:

8-point

7-point

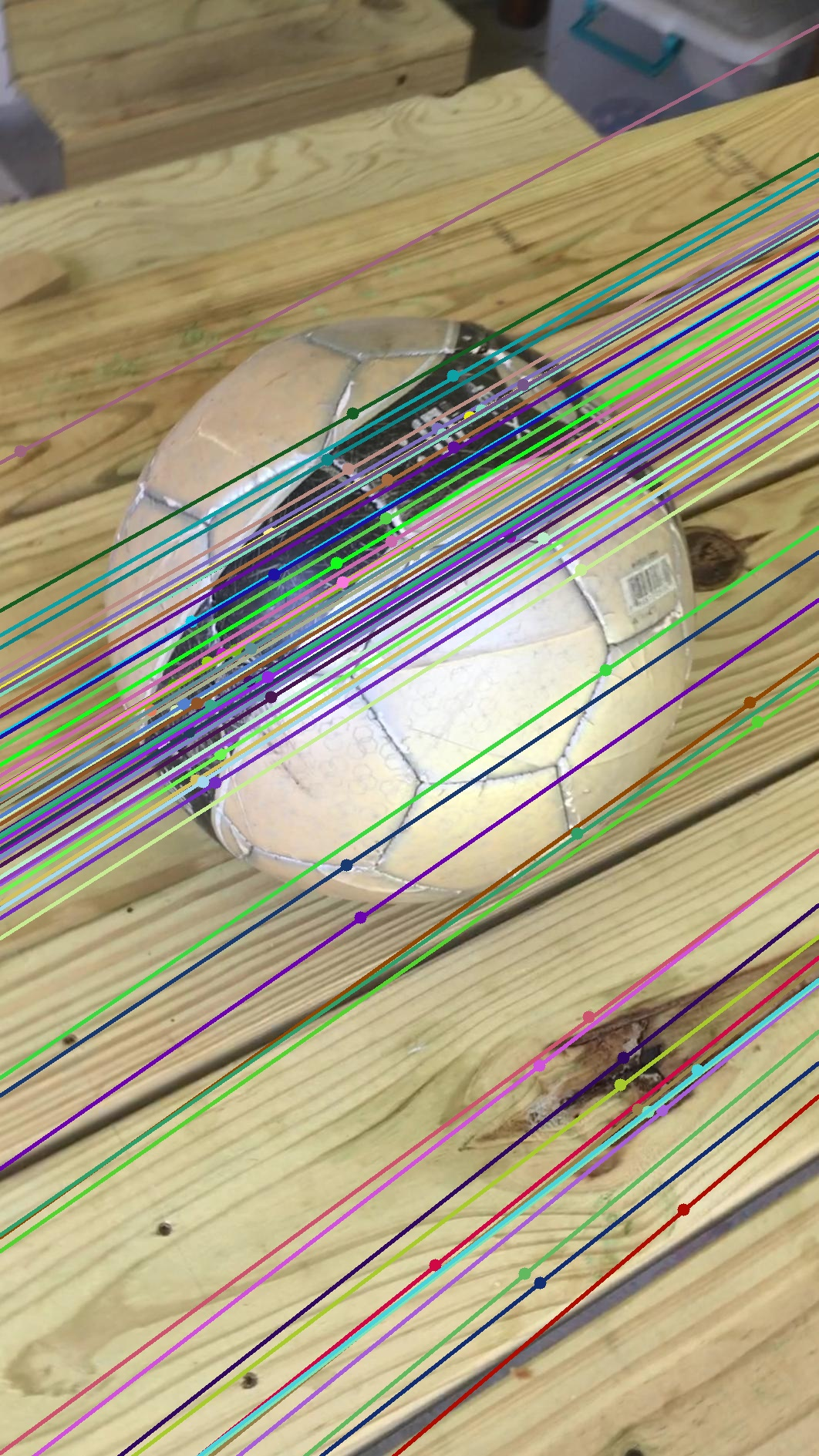

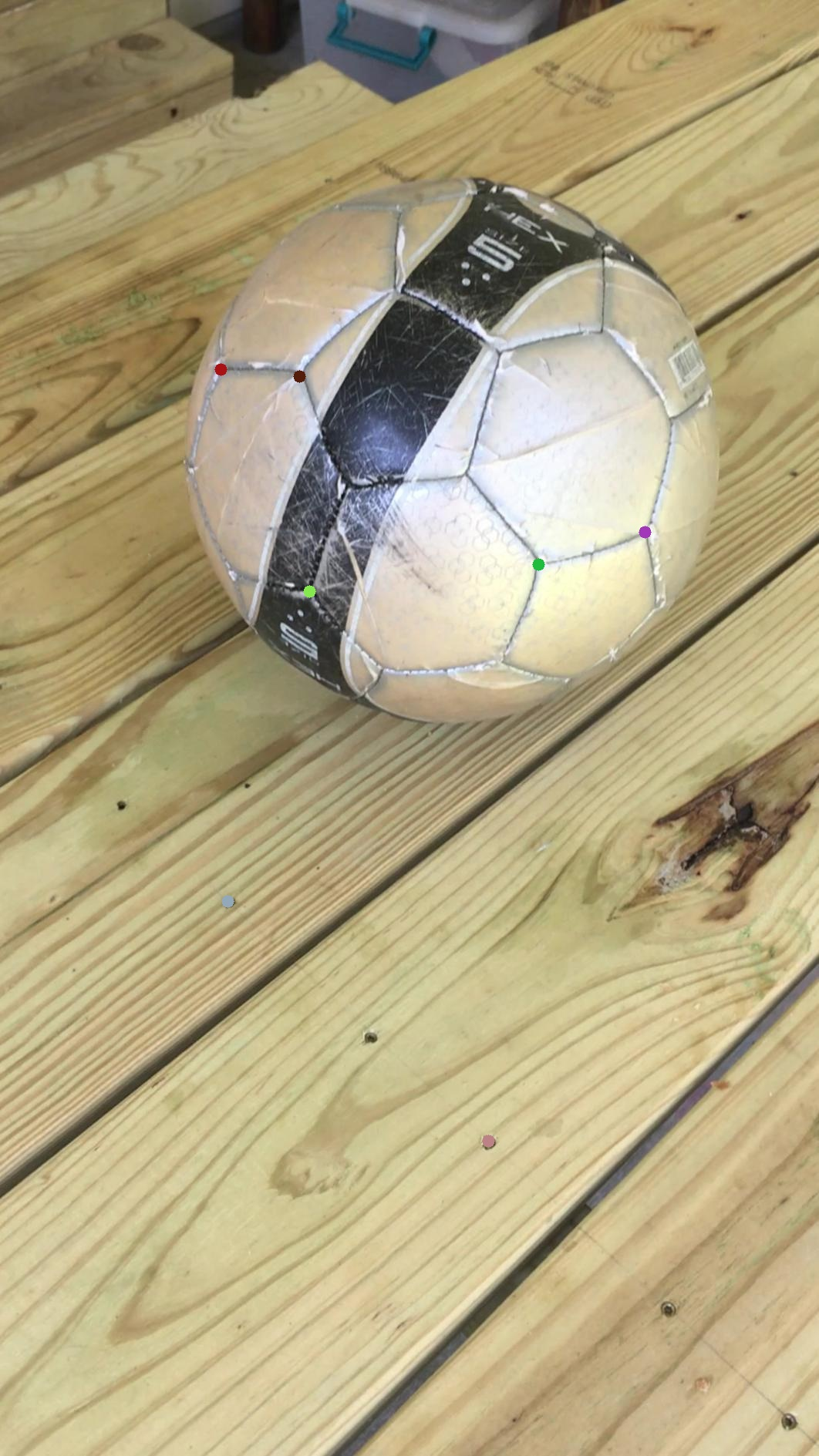

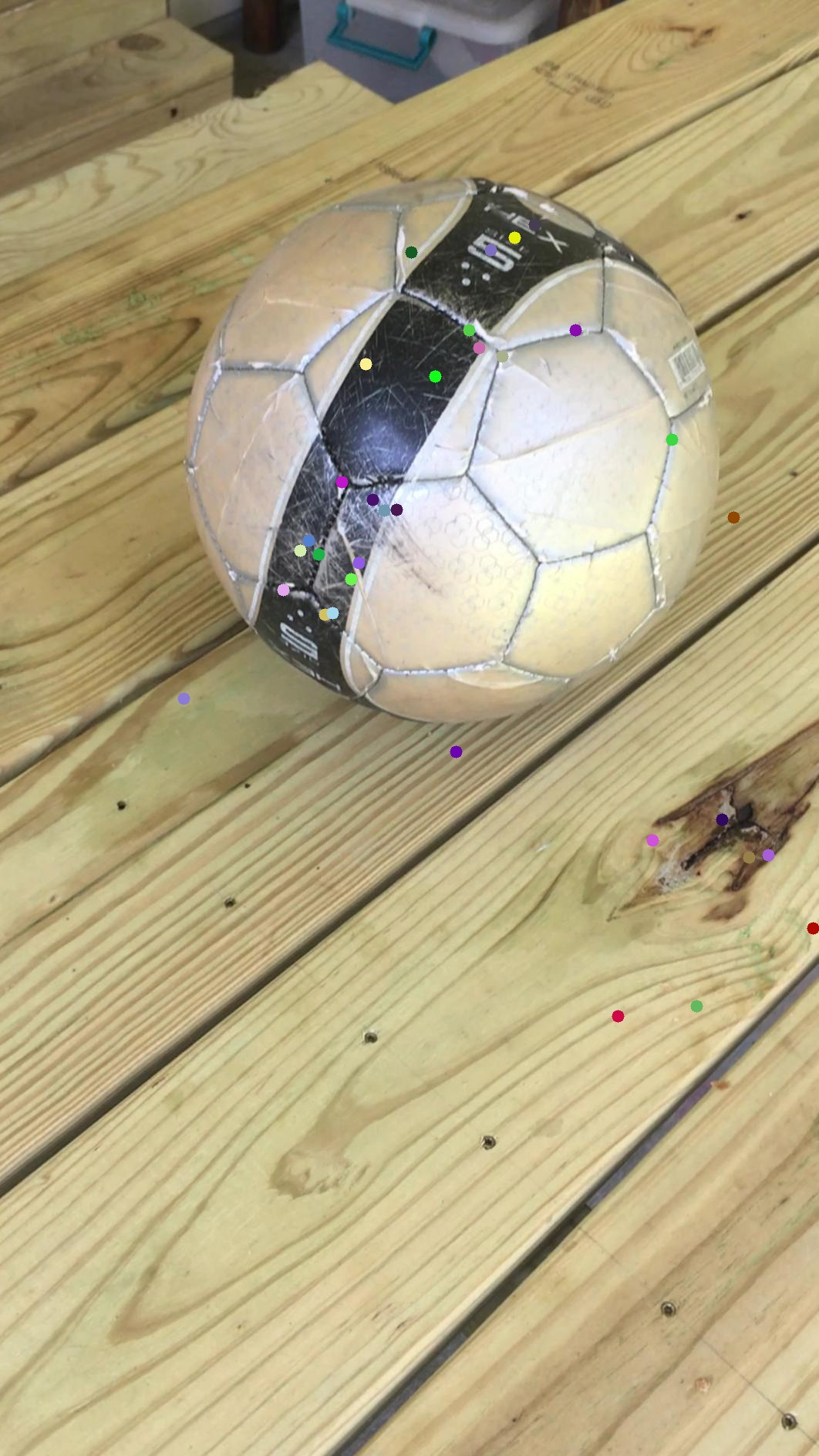

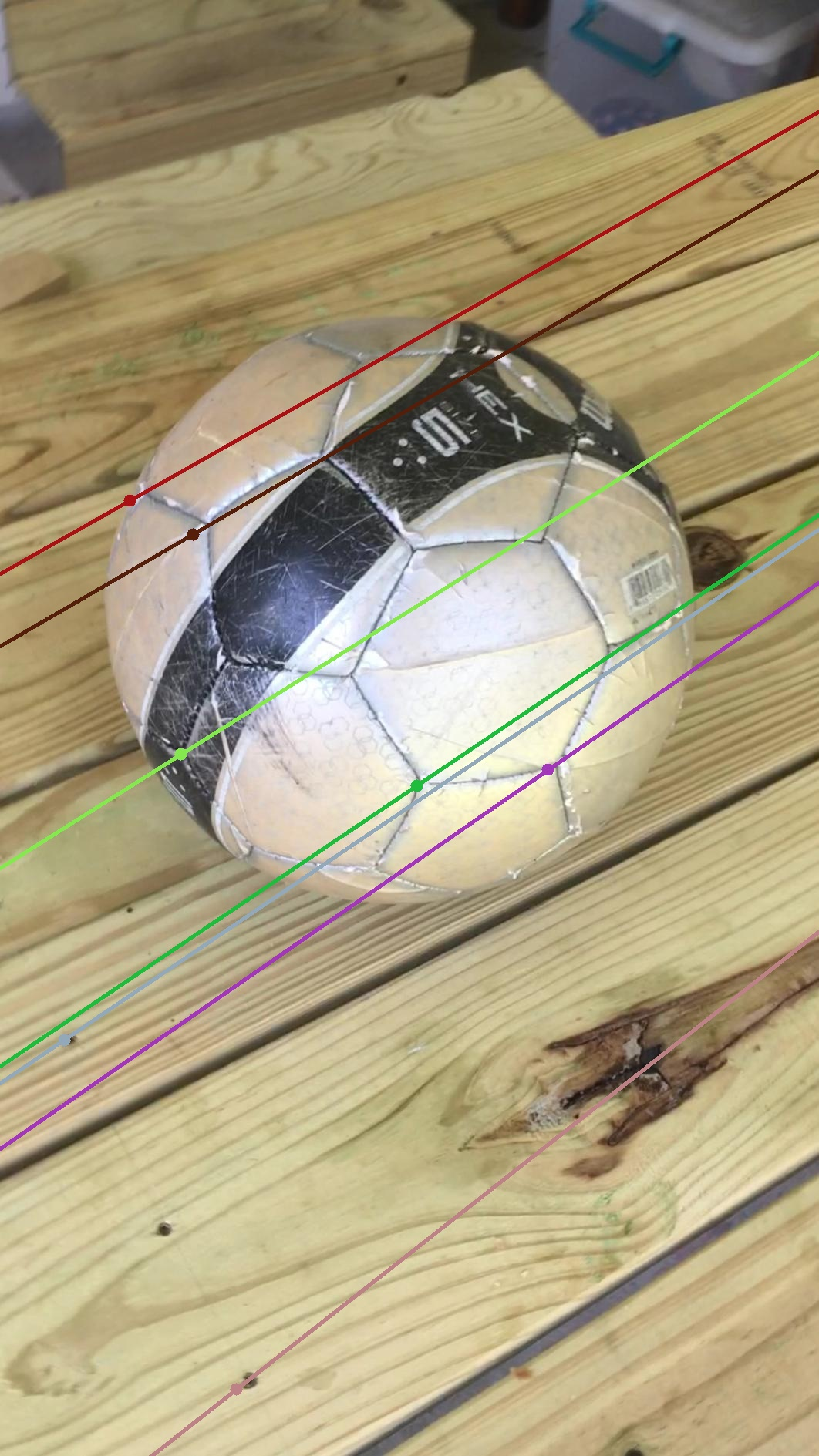

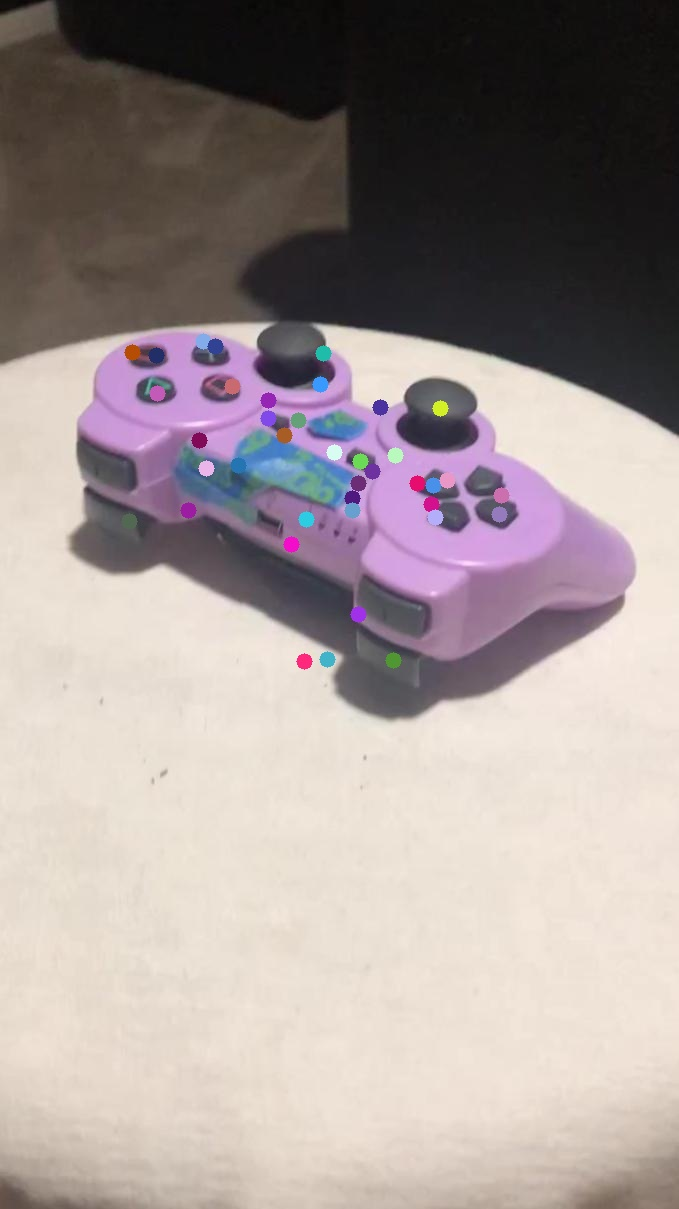

Ball

8-point

7-point

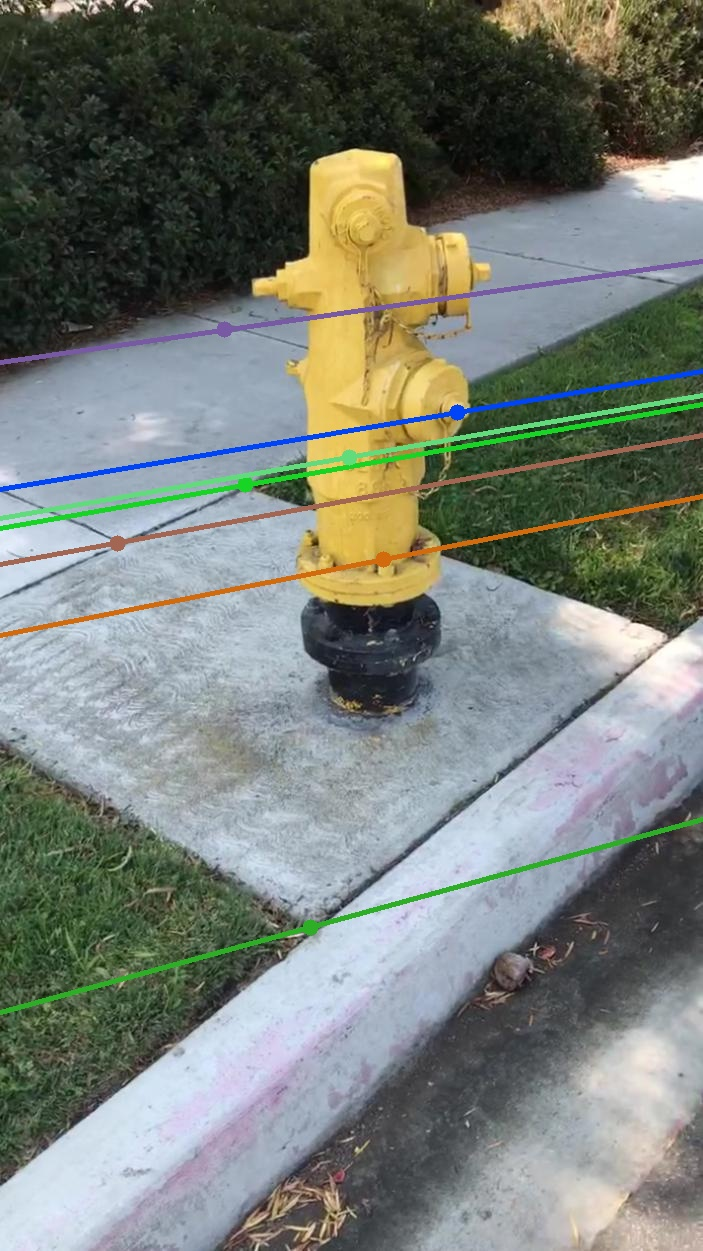

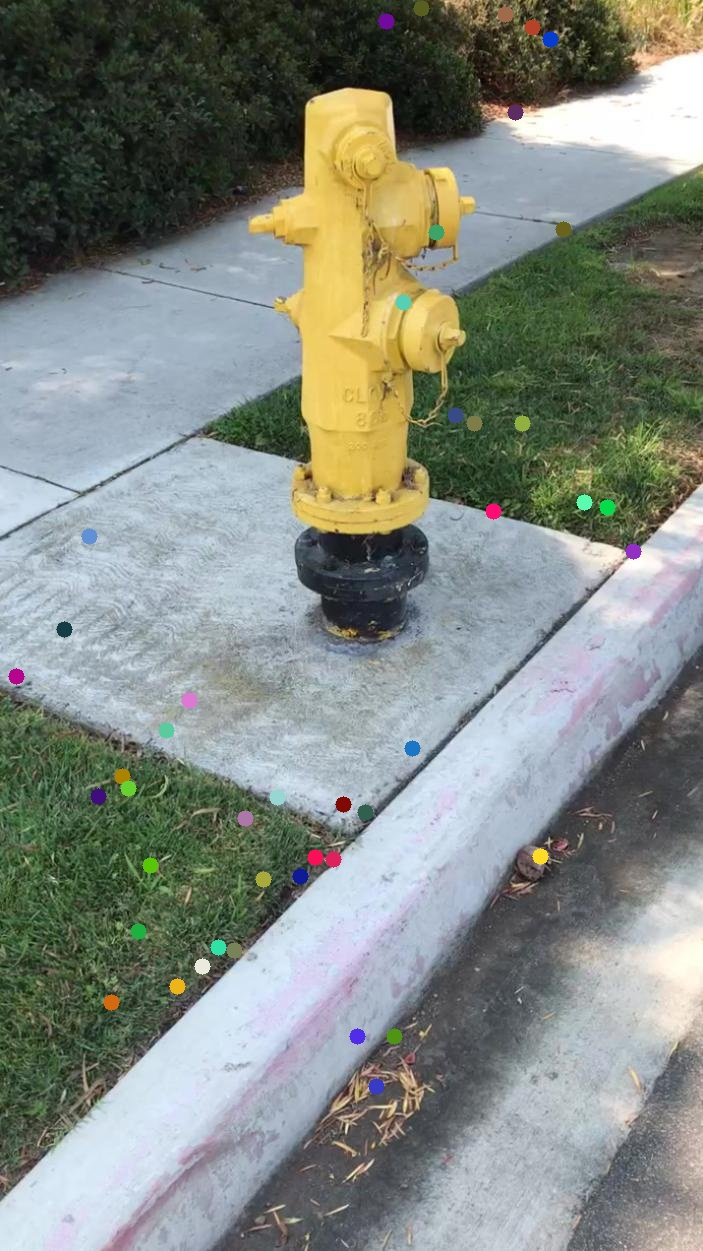

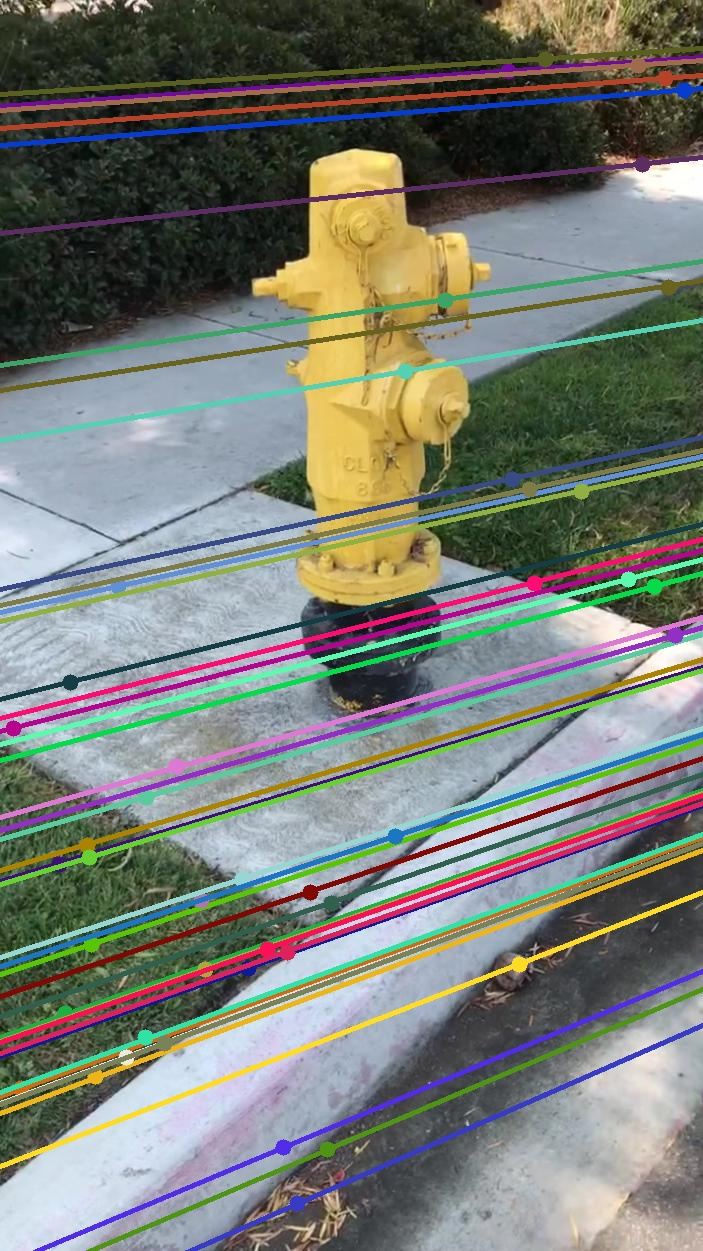

Hydrant:

8-point

7-point

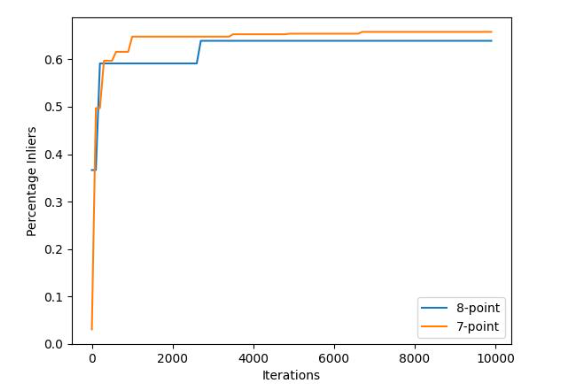

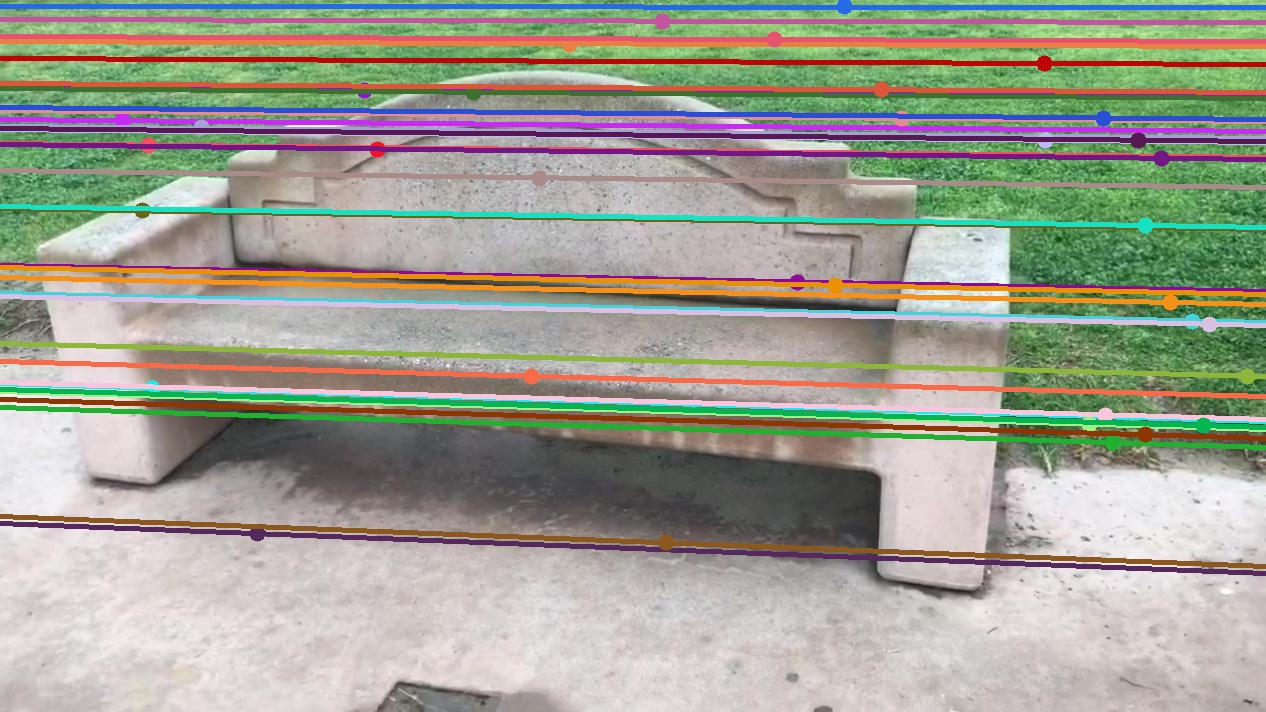

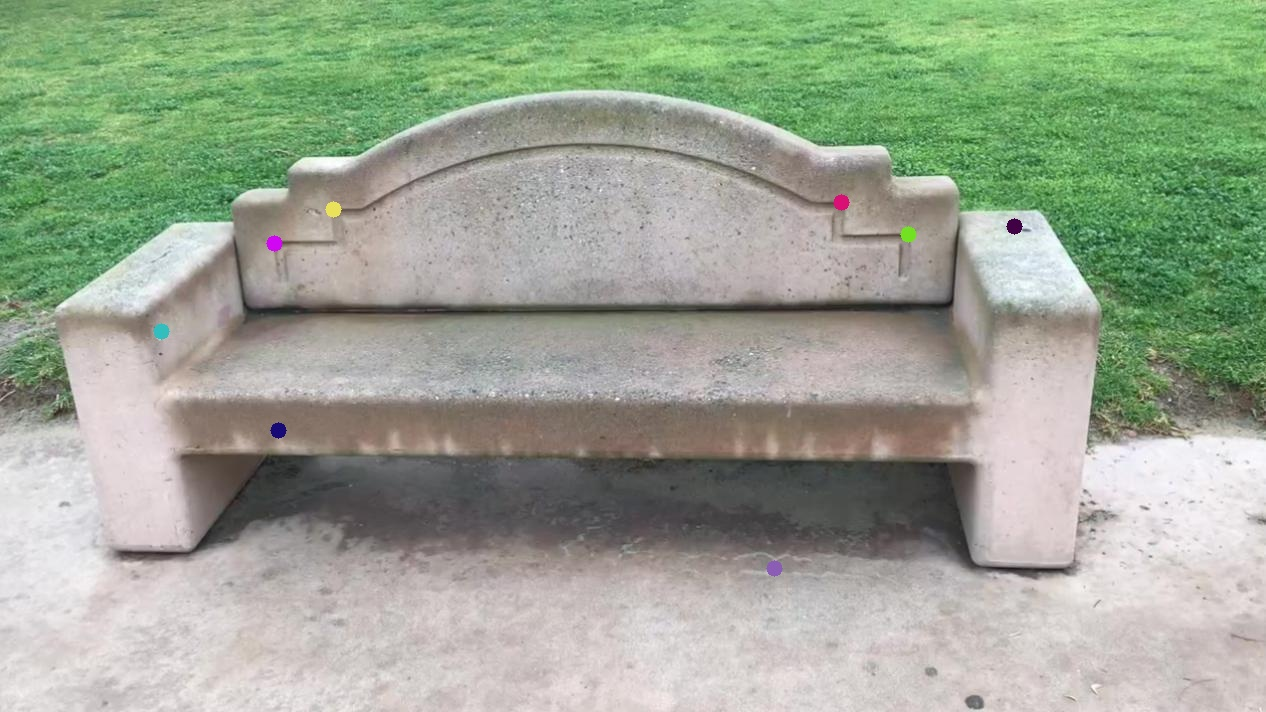

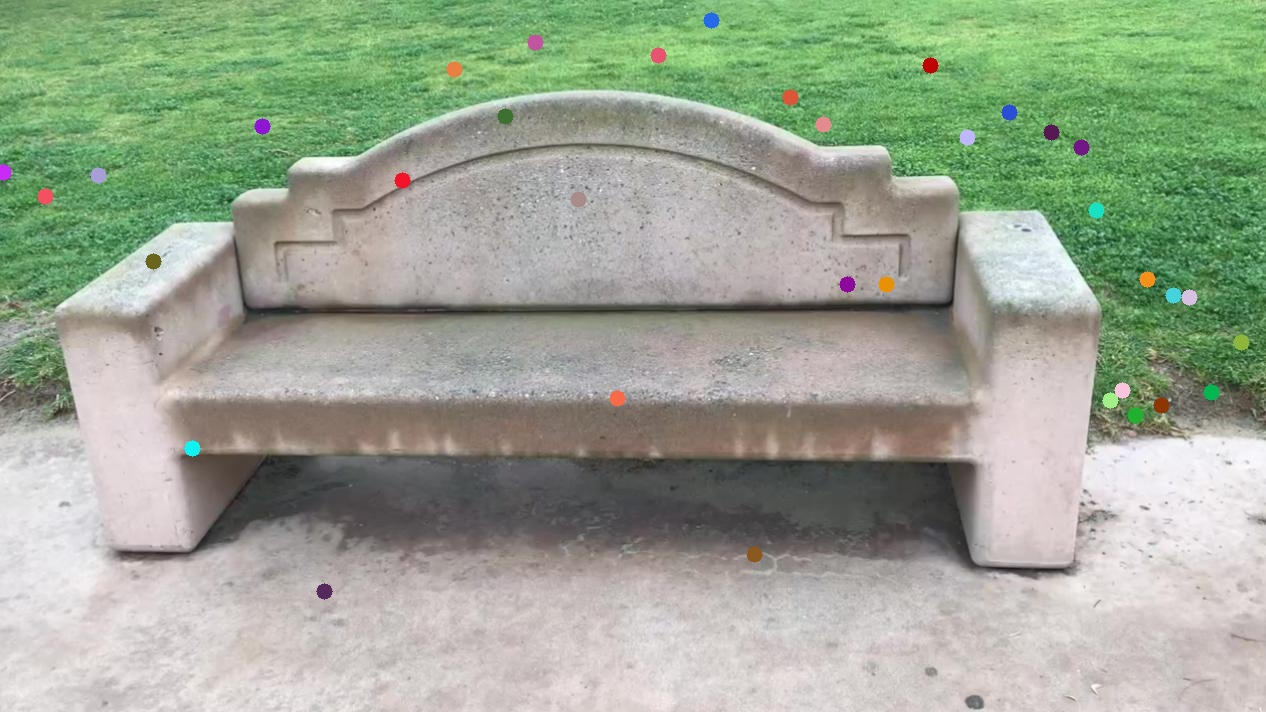

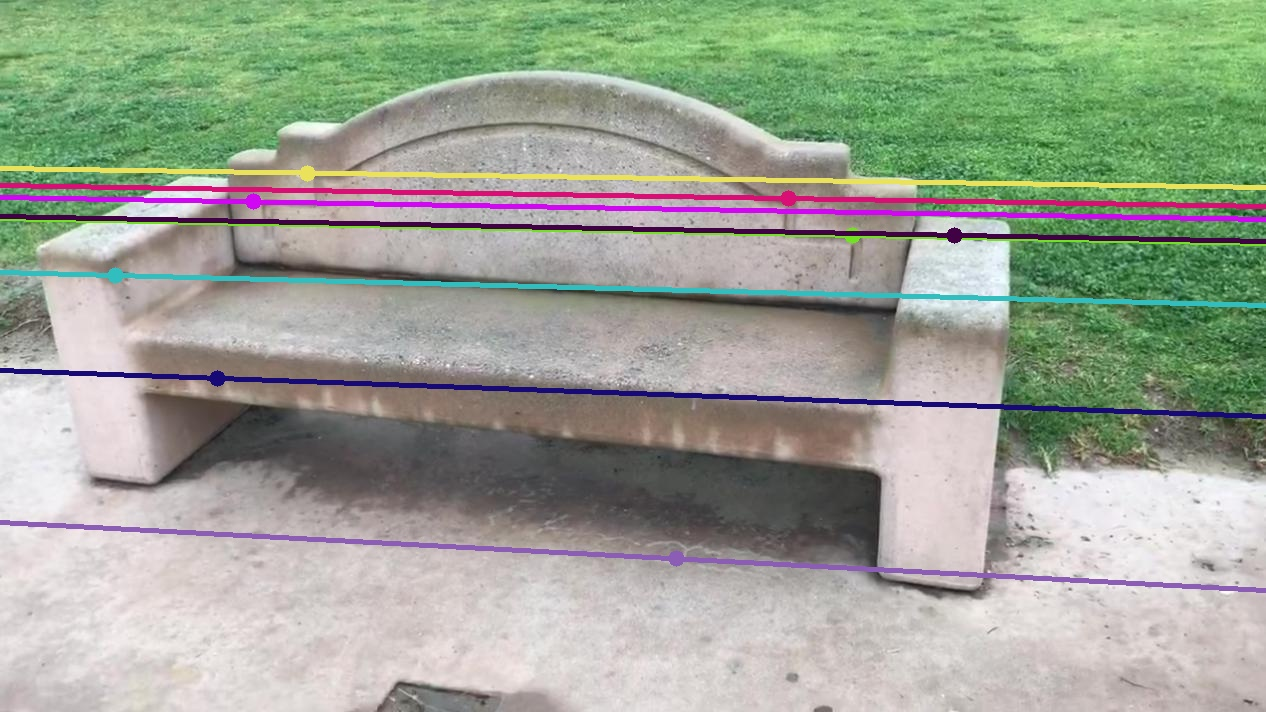

For the bench the inliers graph:

Method:

1. Initial Selection
   • Randomly select 7-8 point correspondences from pts1 and pts2

2. Matrix Computation
   • Calculate Fundamental Matrix (F) using selected points via 7-point or 8-point algorithm

3. Distance Calculation
   • For each point in pts1:
     • Compute epipolar line using F matrix
     • Calculate distance between corresponding pts2 point and epipolar line
     • Repeat vice-versa

4. Inlier Detection
   • Mark points as inliers if distance error is below threshold
   • Update inlier set if current iteration finds more inliers

5. Final Computation
   • Recalculate F matrix using only the best inlier set

6. Parameters: Iters are 10000 and threshold = 1.5

Q3 Triangulation

1. Build Matrix A
   • Take corresponding point pairs (a,b)
   • Use projection matrices P1 and P2
   • Form A matrix using equation: A = [a_yP1_3 - P1_2, P1_1 - a_xP1_3, b_yP2_3 - P2_2, P2_1 - b_xP2_3][1]

2. Get 3D Point
   • Apply SVD to matrix A
   • Take last singular vector as x coordinates
   • Scale x so last element equals 1.

3. Save Result
   • Extract non-homogeneous part of x
   • Store in Points3D variable

Q4 COLMAP

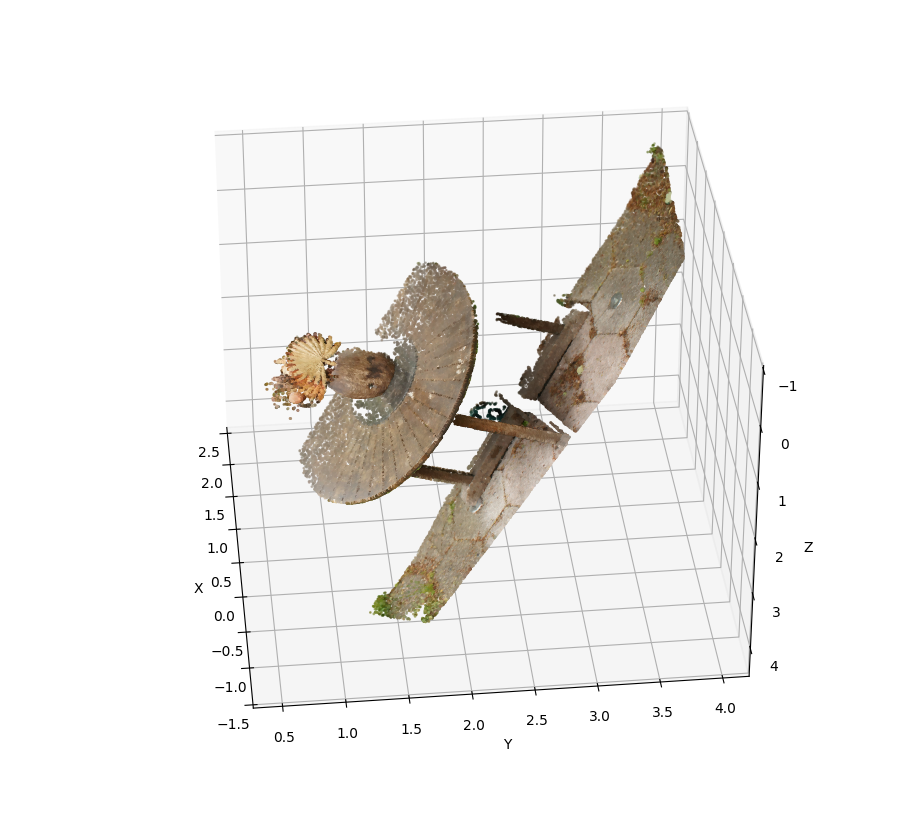

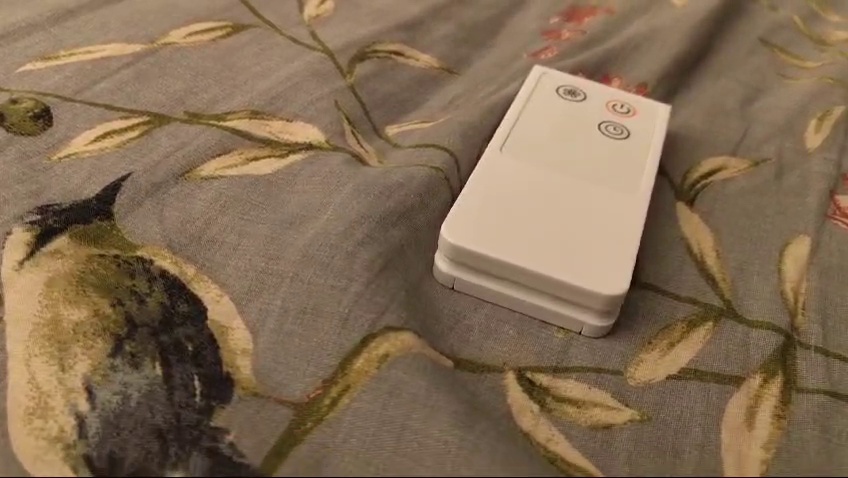

Multi View images:

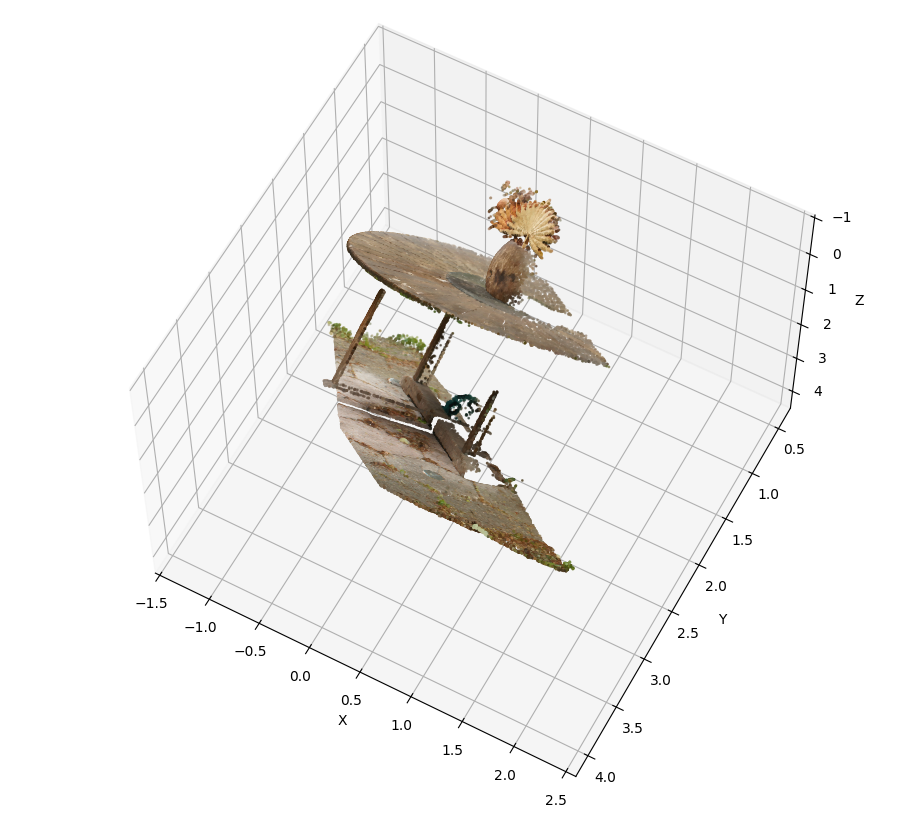

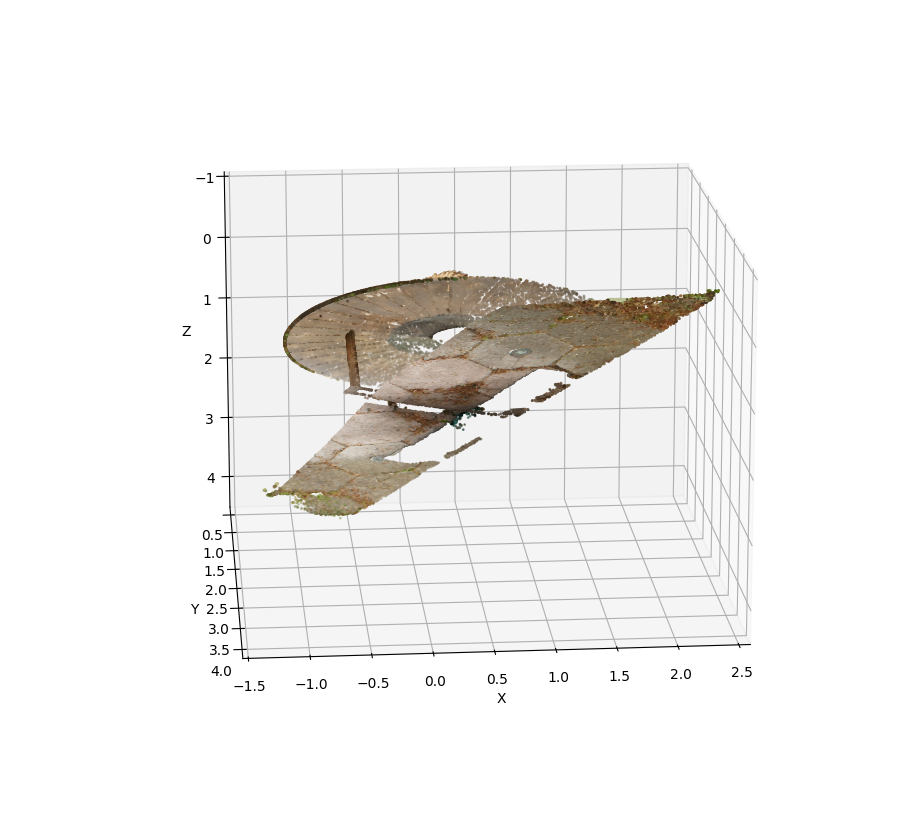

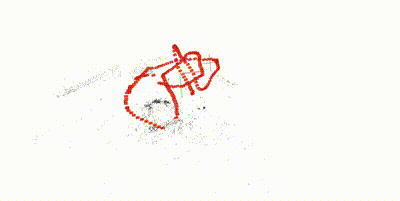

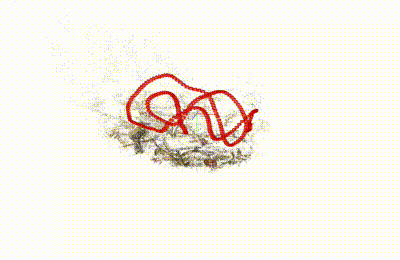

Reconstruction:

Multi-view images:

Reconstruction:

Q5 Fundamental matrix estimation on your own images

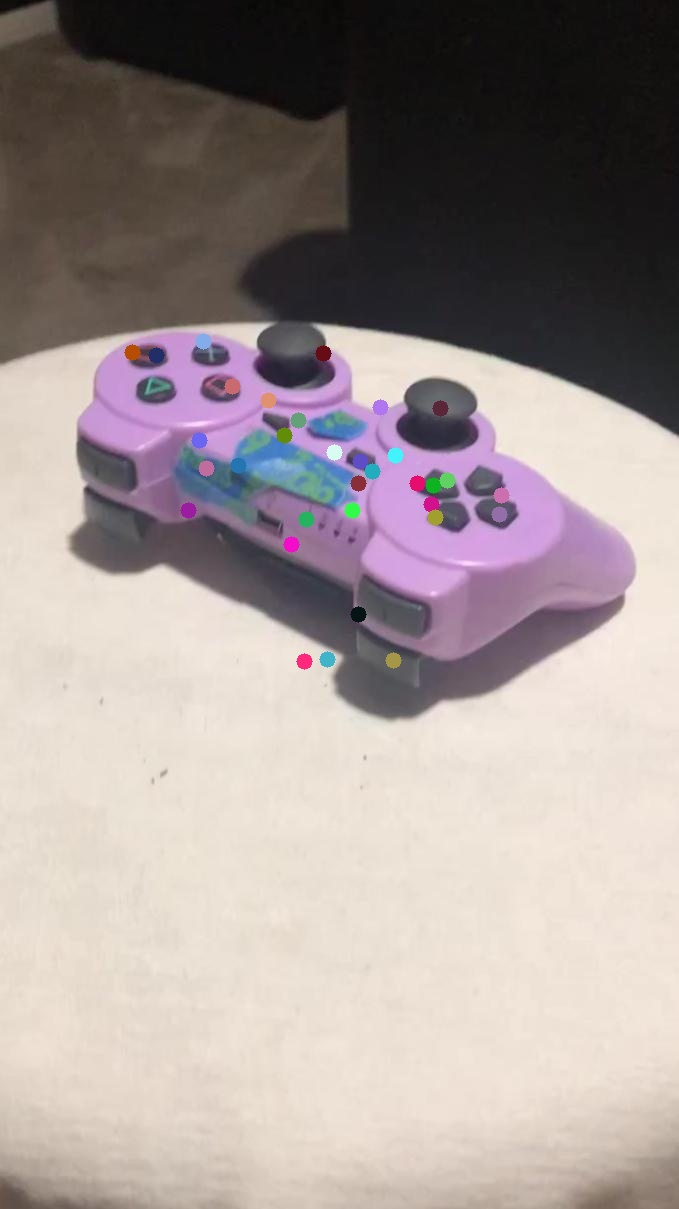

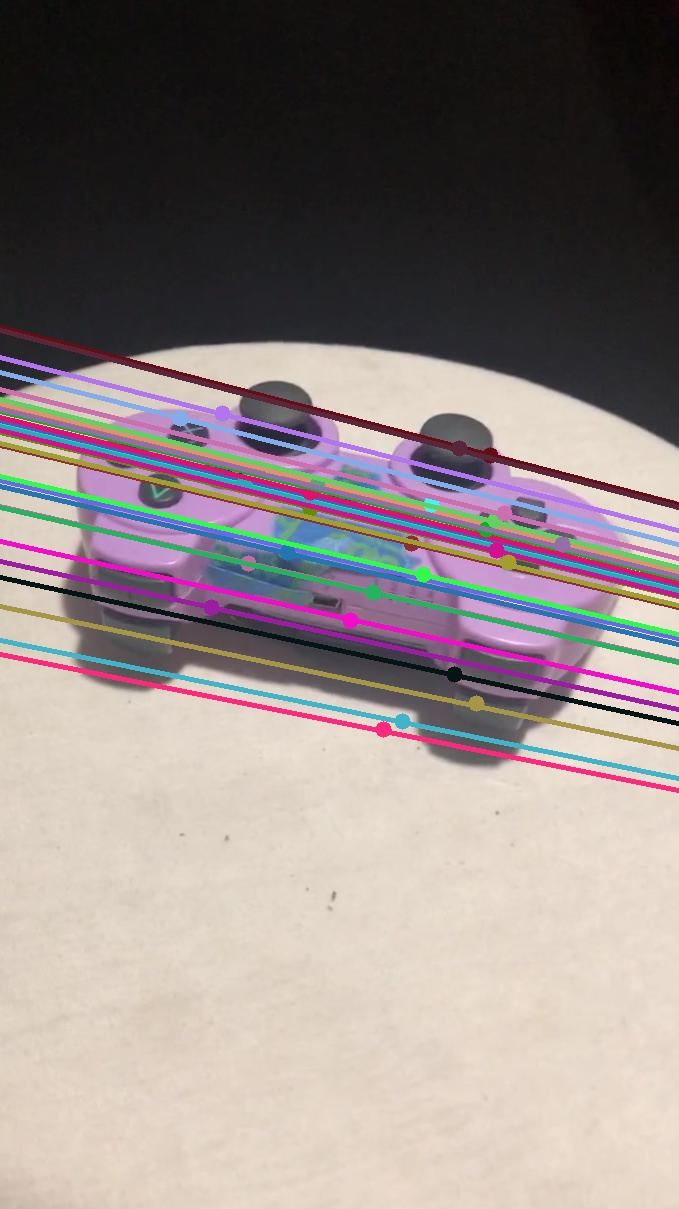

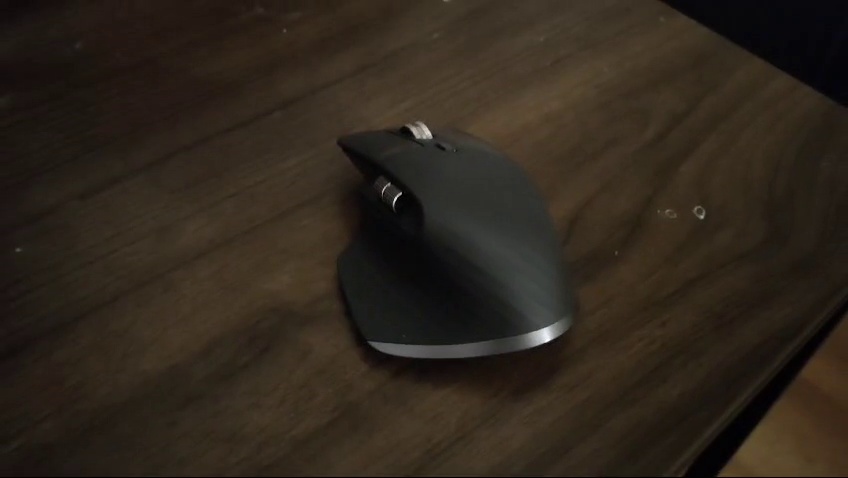

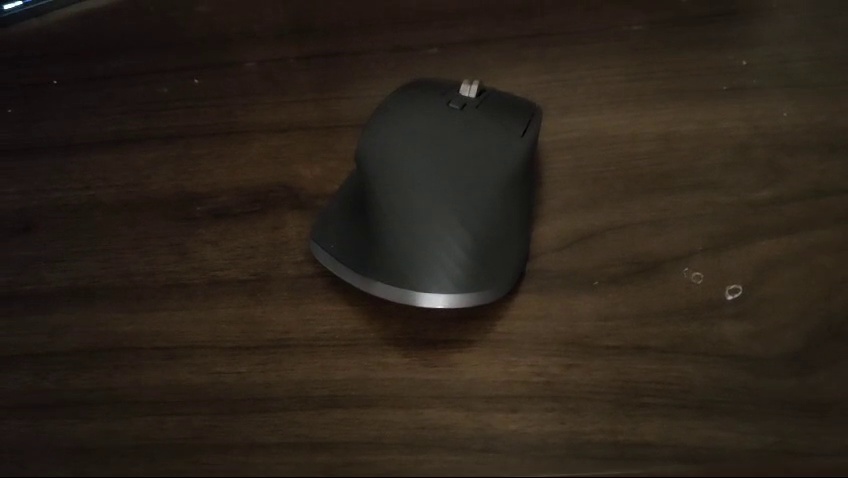

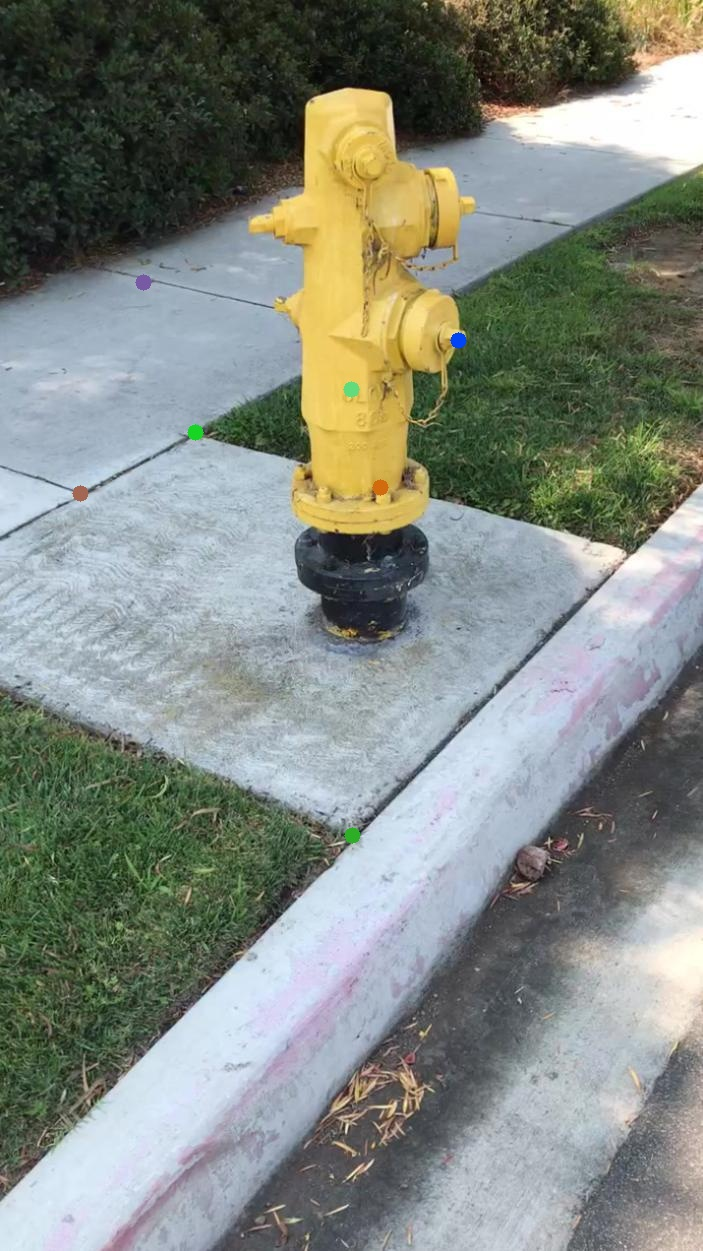

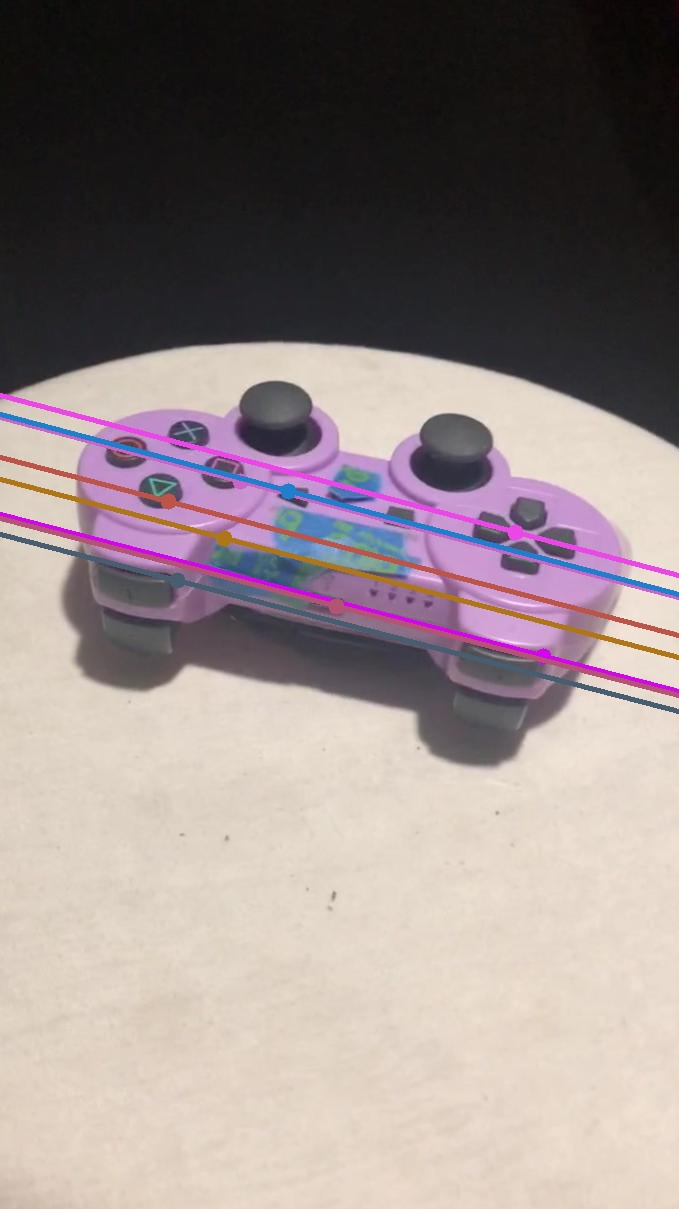

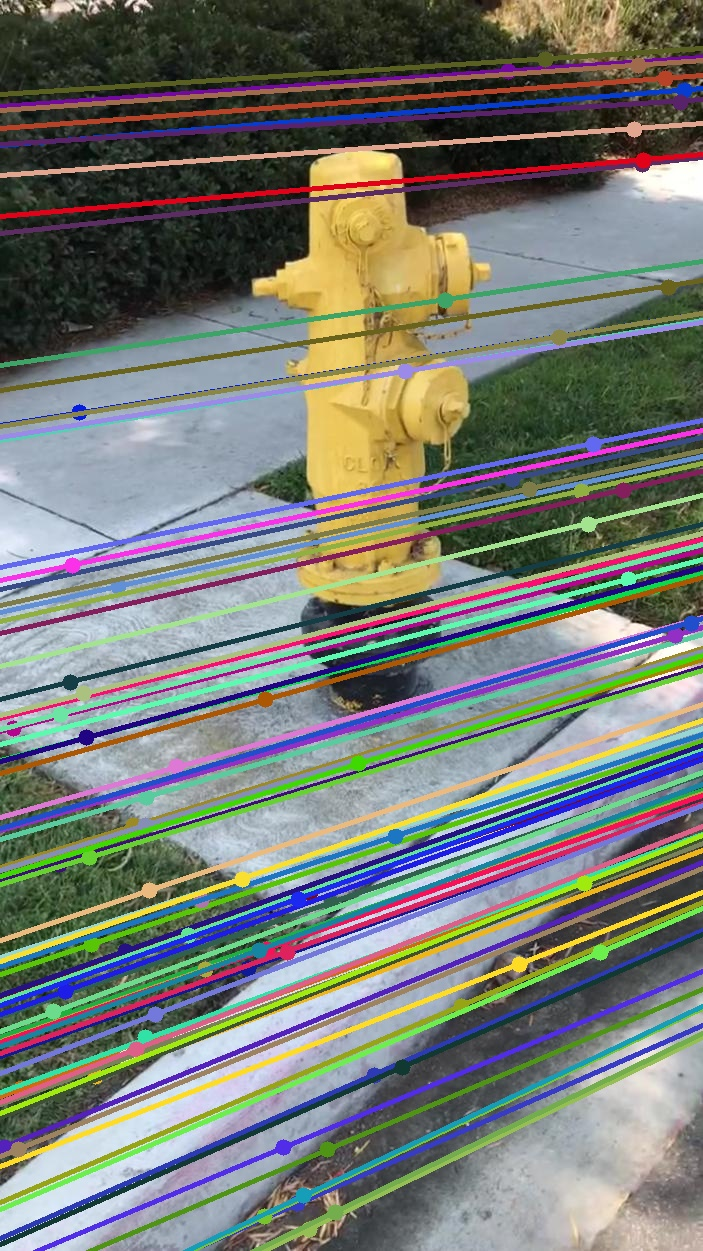

Image set:

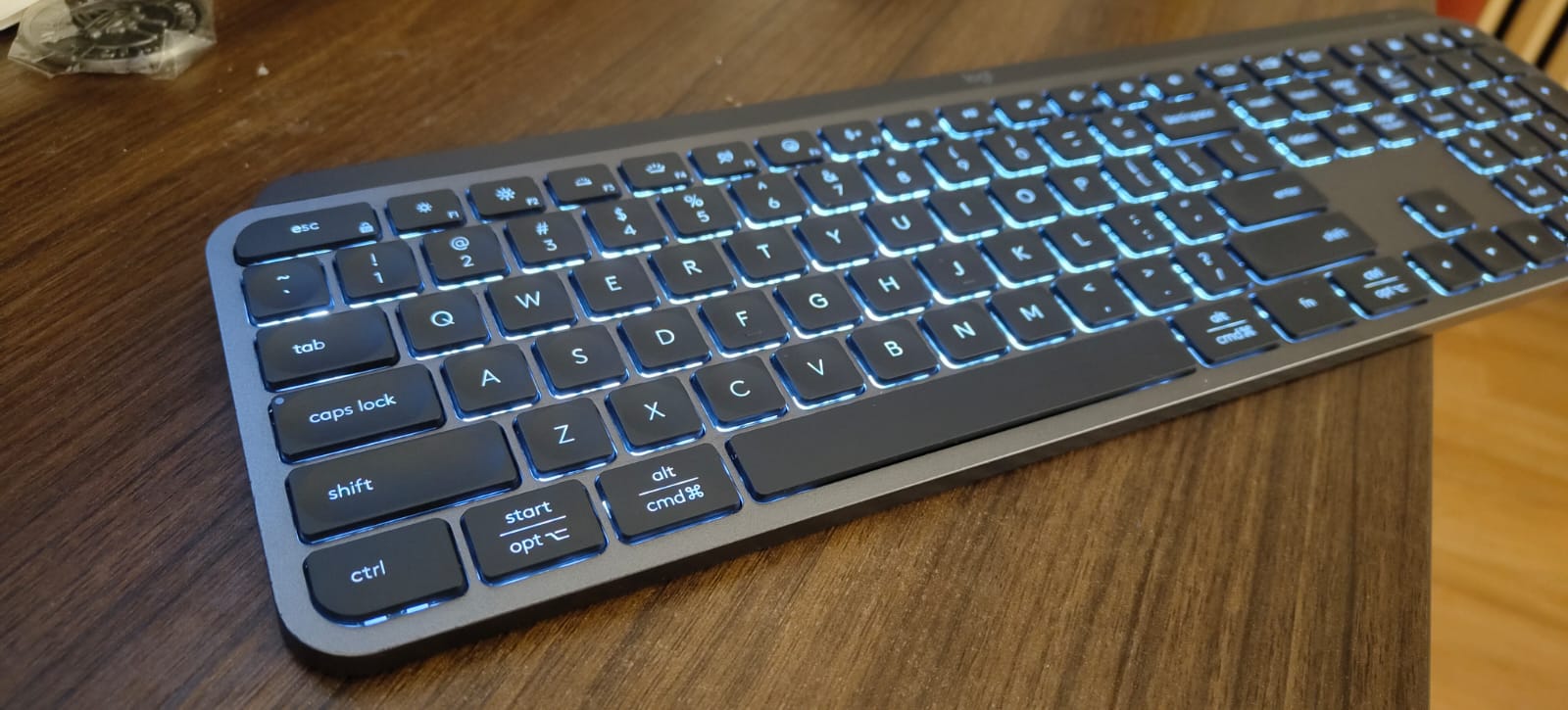

Image Set:

Method Used:

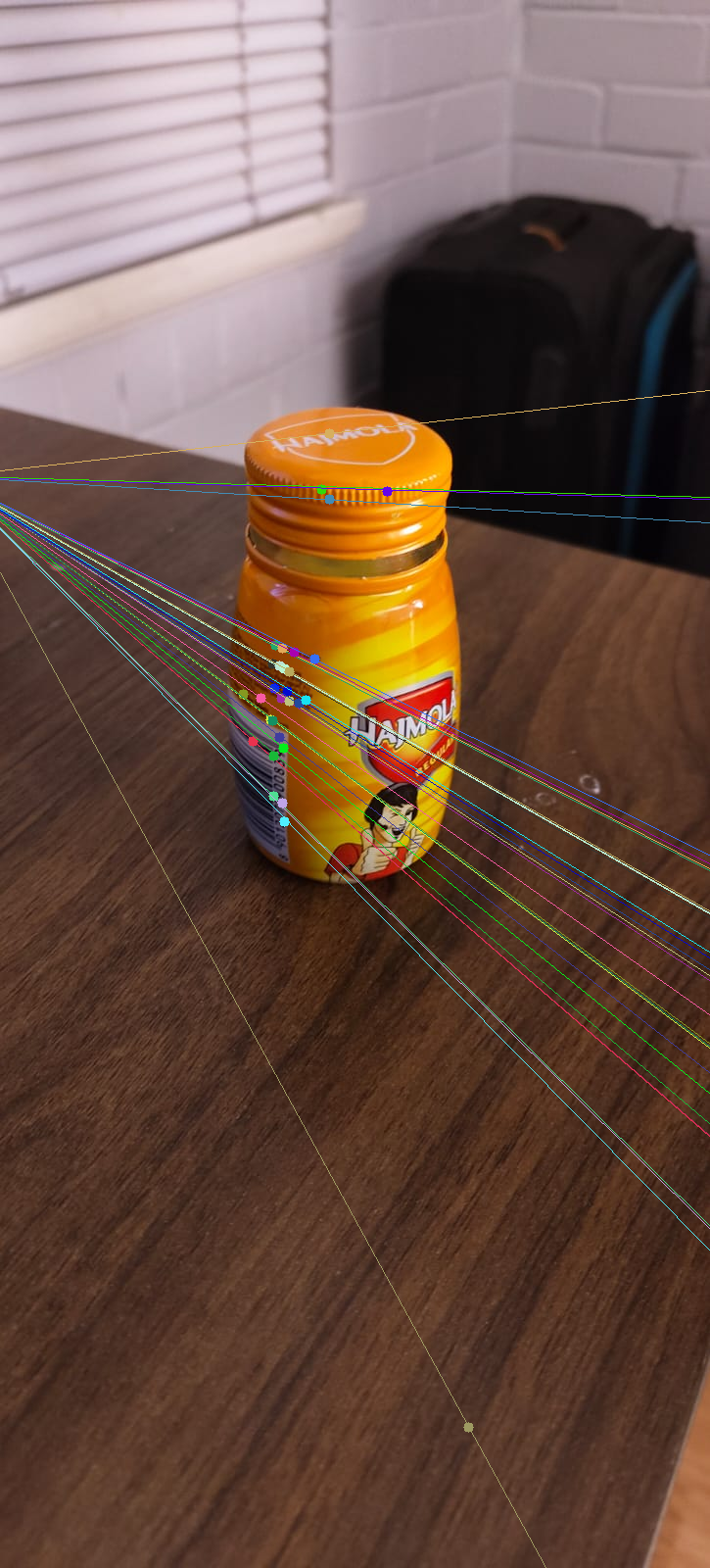

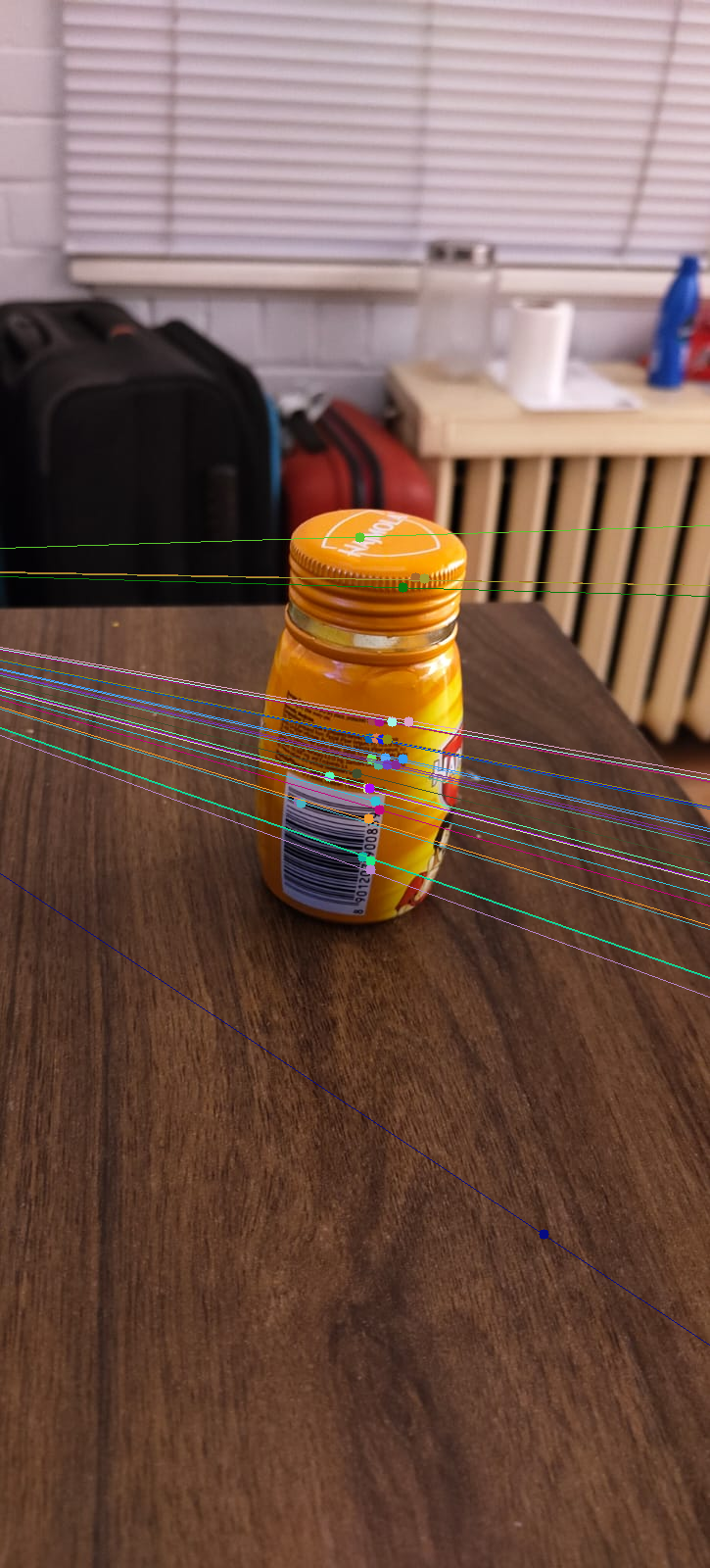

1. Find features in both images using SIFT and match them with FLANN-based matcher.

2. Filter good matches and then extract corresponding points.

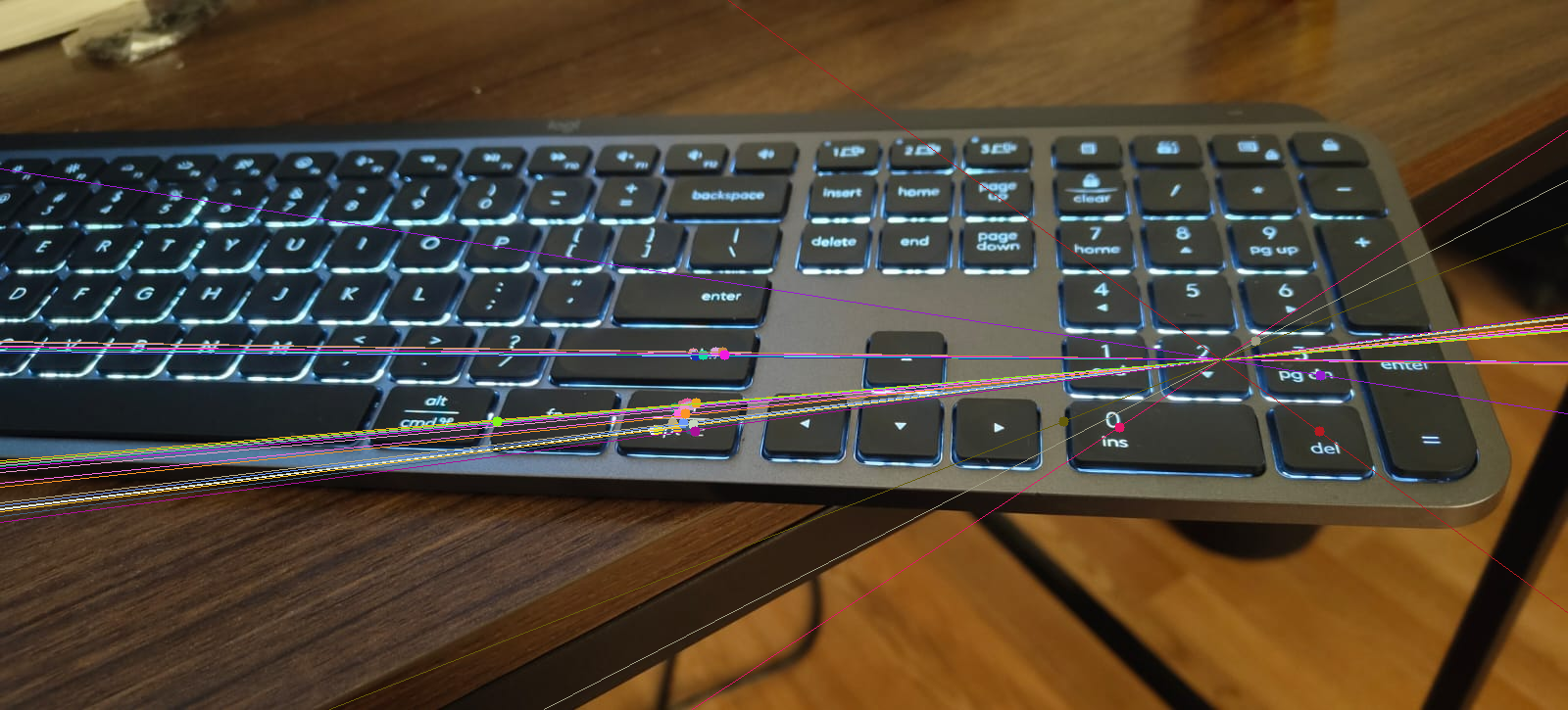

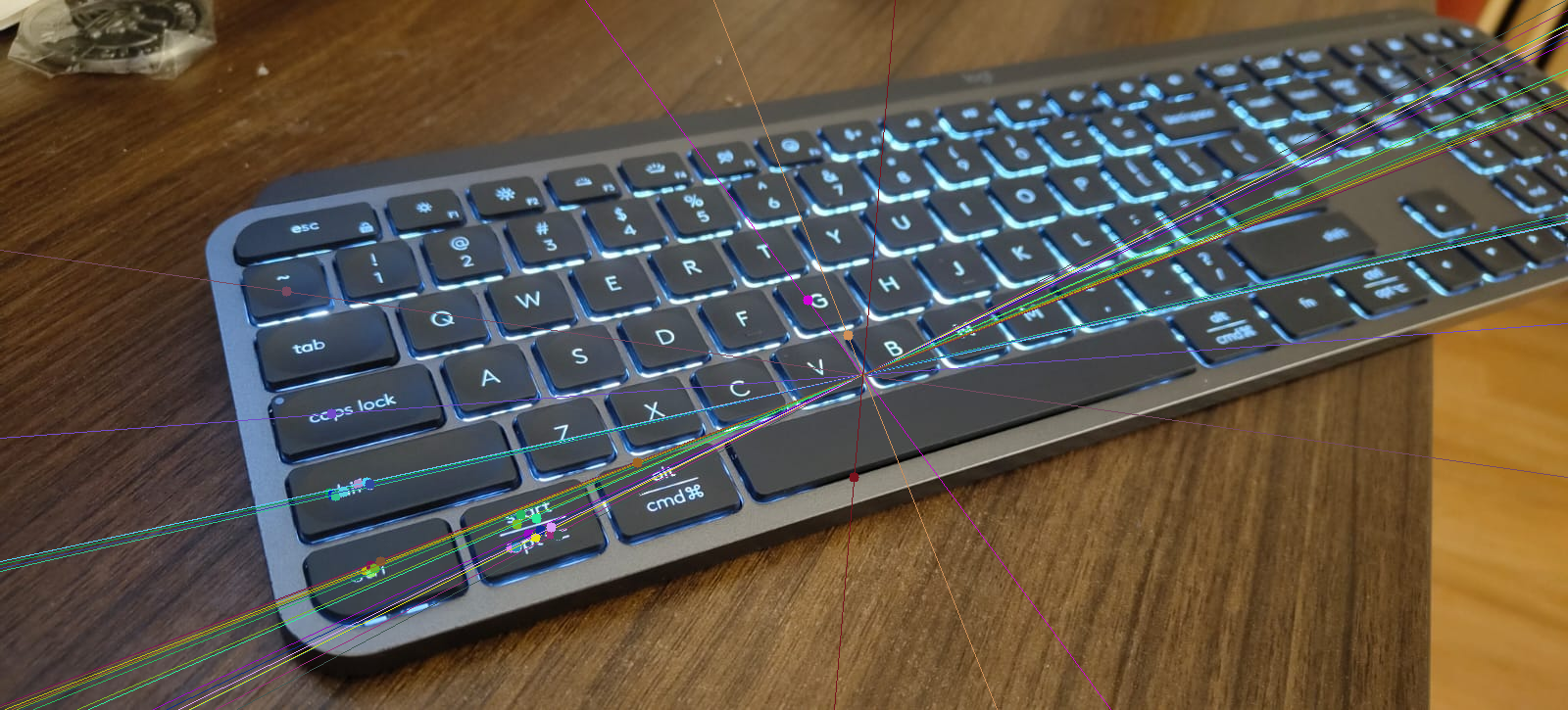

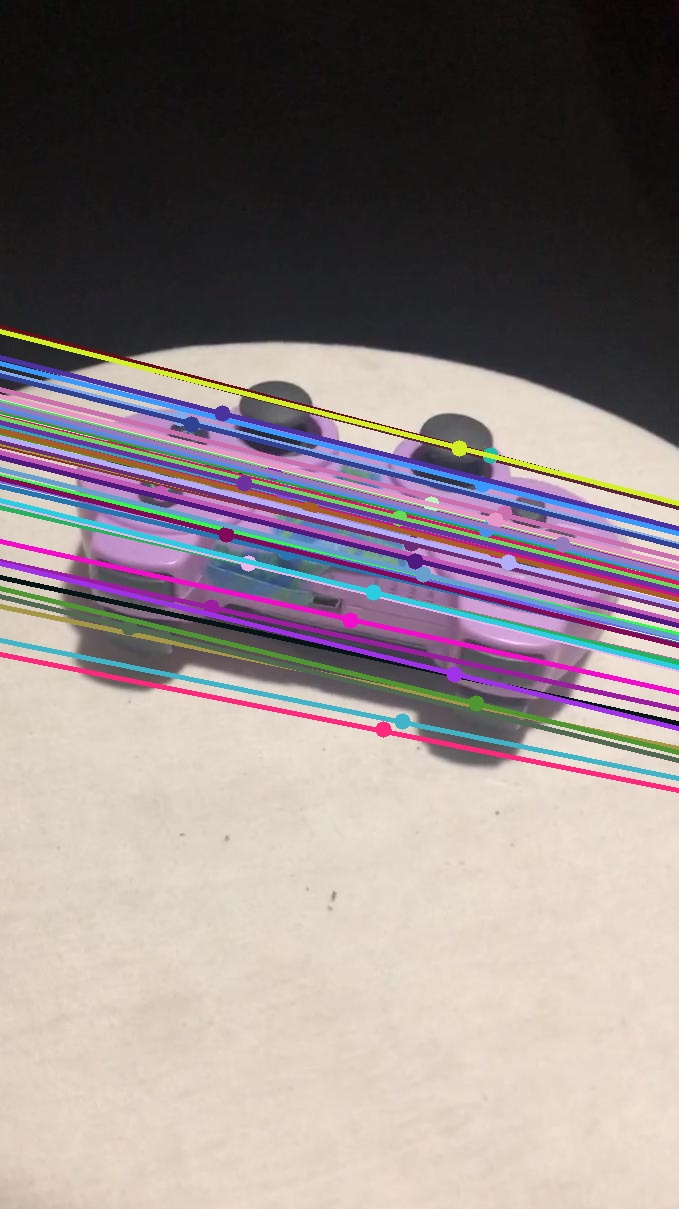

3. Estimate the fundamental matrix using RANSAC with the eight-point algorithm and the above visualized epipolar lines

Q6. Stress test hyperparams of COLMAP

1.
