Assignment #4 - Neural Style Transfer

In this assignment, I will implement neural style transfer which resembles specific content in a certain artistic style. For example, generate cat images in Ukiyo-e style. The algorithm takes in a content image, a style image, and another input image. The input image is optimized to match the previous two target images in content and style distance space.

Part 1: Content Reconstruction

Effect of optimizing content loss at different layers:

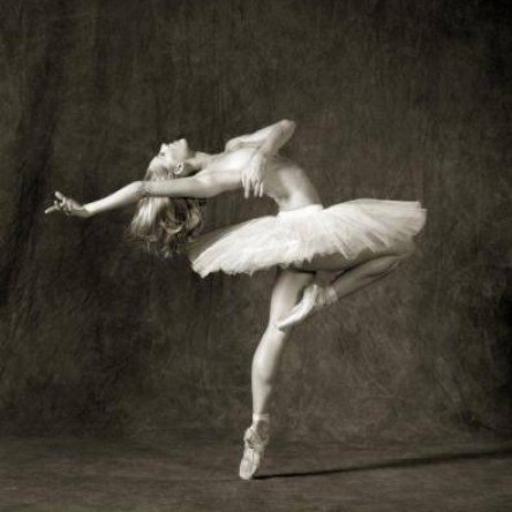

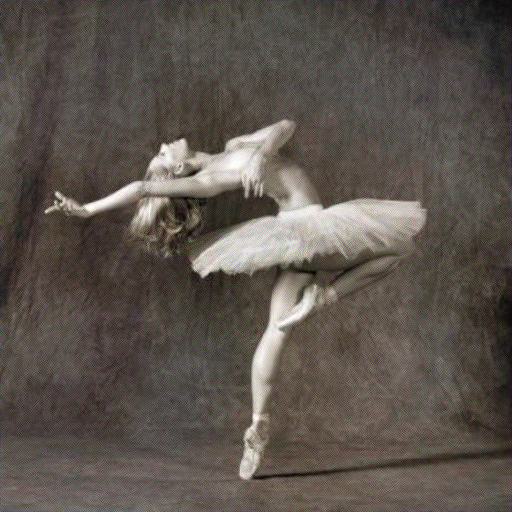

Original Image	layer: conv_2	layer: conv_4
layer: conv_6	layer: conv_7	layer: conv_8
layer: conv_10	layer: conv_12	layer: conv_14

Here the conv naming convention is defined in a way that the smaller the number the closer it is to the end of the network. i.e, conv_2 is last second conv layer of the VGG.

xxxxxxxxxx
------------------- Model Layers -------------------
Name: conv_1,  Layer: Conv2d(3, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
Name: relu_1,  Layer: ReLU()
Name: conv_2,  Layer: Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
Name: relu_2,  Layer: ReLU()
Name: pool_2,  Layer: MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False)
Name: conv_3,  Layer: Conv2d(64, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
Name: relu_3,  Layer: ReLU()
Name: conv_4,  Layer: Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
Name: relu_4,  Layer: ReLU()
Name: pool_4,  Layer: MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False)
Name: conv_5,  Layer: Conv2d(128, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
Name: relu_5,  Layer: ReLU()
Name: conv_6,  Layer: Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
Name: relu_6,  Layer: ReLU()
Name: conv_7,  Layer: Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
Name: relu_7,  Layer: ReLU()
Name: conv_8,  Layer: Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
Name: relu_8,  Layer: ReLU()
Name: pool_8,  Layer: MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False)
Name: conv_9,  Layer: Conv2d(256, 512, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
Name: relu_9,  Layer: ReLU()
Name: conv_10, Layer: Conv2d(512, 512, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
Name: relu_10, Layer: ReLU()
Name: conv_11, Layer: Conv2d(512, 512, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
Name: relu_11, Layer: ReLU()
Name: conv_12, Layer: Conv2d(512, 512, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
Name: relu_12, Layer: ReLU()
Name: pool_12, Layer: MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False)
Name: conv_13, Layer: Conv2d(512, 512, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
Name: relu_13, Layer: ReLU()
Name: conv_14, Layer: Conv2d(512, 512, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
Name: relu_14, Layer: ReLU()
Name: conv_15, Layer: Conv2d(512, 512, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
Name: relu_15, Layer: ReLU()
Name: conv_16, Layer: Conv2d(512, 512, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
Name: relu_16, Layer: ReLU()
Name: pool_16, Layer: MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False)
------------------------------------------------------

As we can see, content loss after conv_2 and conv_4 work the best.

Take two random noises as two input images, optimize them only with content loss:

Noise	Reconstructed Image	Content Image

Part 2: Texture Synthesis

Effect of optimizing texture loss at different layers.

Looking at the below results I used conv_1, conv_2, conv_3, conv_4, conv_5.

Original Image	layer: conv 1,2,3,4,5	layer: conv 1,2,4,7,11
layer: conv 1,3,5,7,9	layer: conv 2,4,6,8,10	layer: conv 3,6,9,12,15

Random noises as two input images, optimize them only with style loss.

Noise	Synthesized Image	Style Image

Part 3: Style Transfer

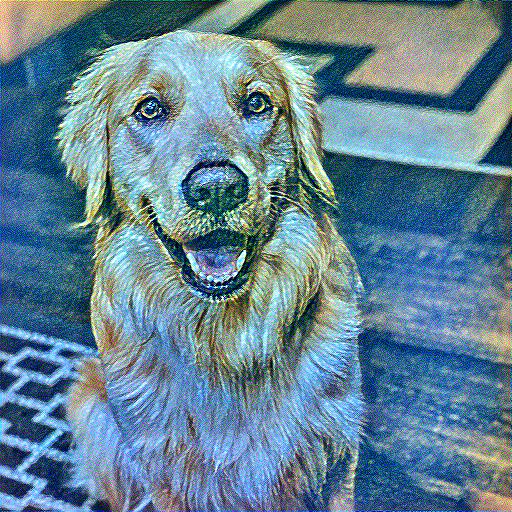

Hyper-parameters Tuning

Hyper Prameters	Random Initialization	Content based Initialization
style weight: 1
style weight : 1000
style weight: 1e6
style weight: 1e9
style weight: 1e12

As we can see content based initialization with style weight 100000 gives us the best result.

More Style transfer results:

Style Images >>
Content Images

Random Noise VS Content Image

Content Image	Style Image	Random Initialization	Content based Initialization
		Inference time: 16.5 secs	Inference time: 11.23 secs

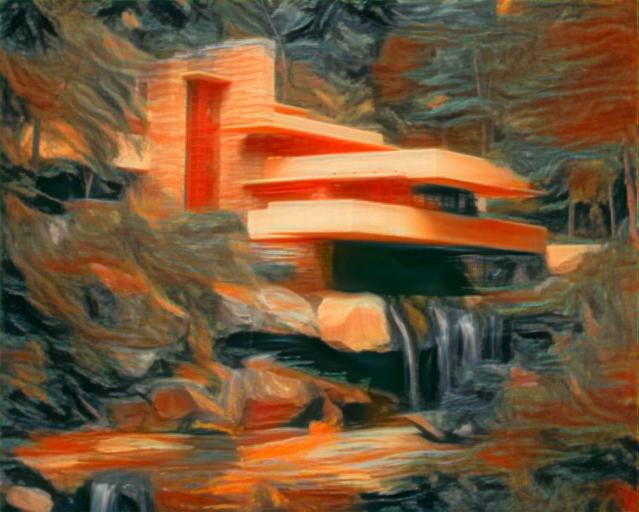

Style transfer on some of your favourite images.

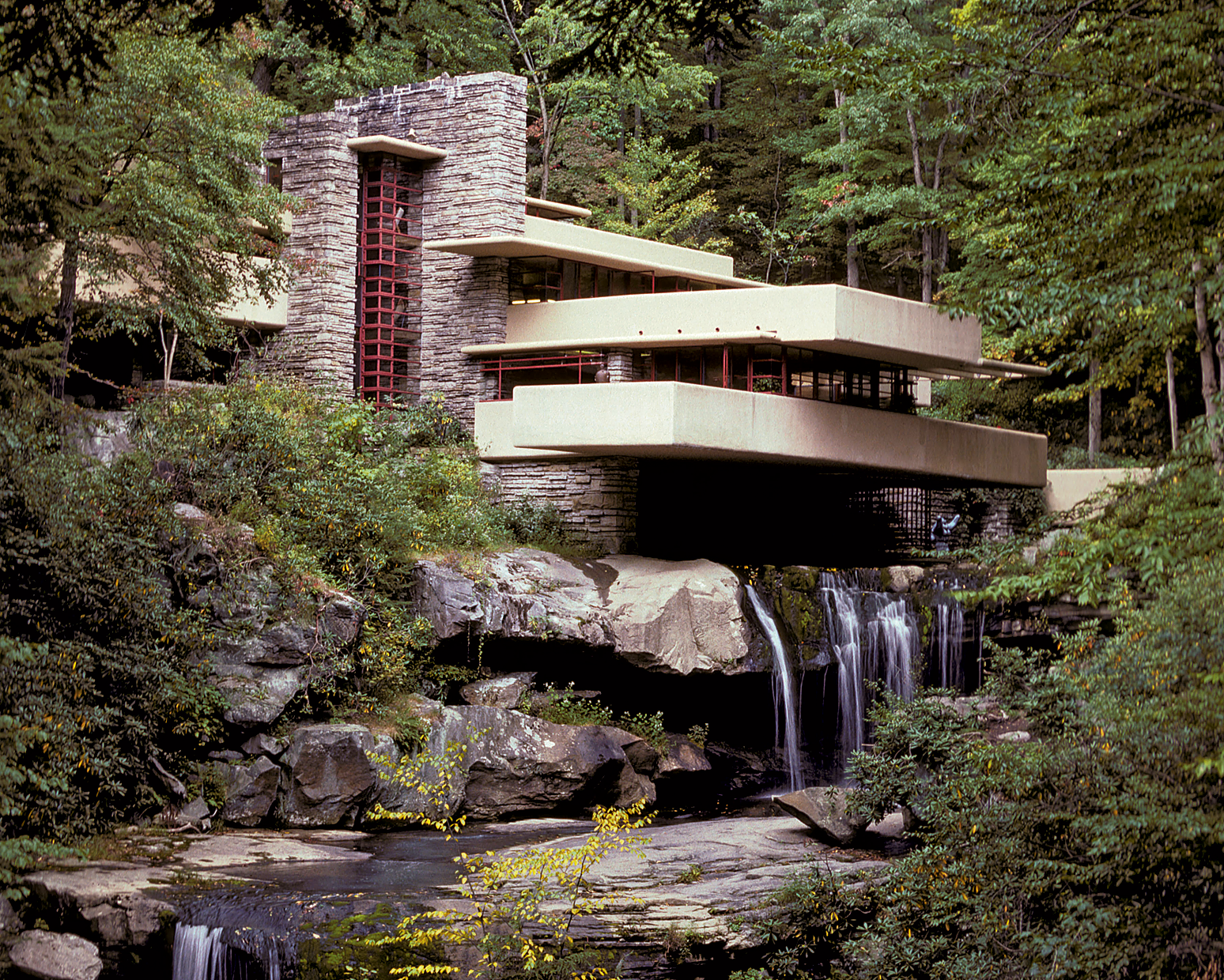

Content Image	Style Image	Stylized Image

Bells & Whistles (Extra Points)

Stylized grump cats

Content Image	Style Image	Stylized Image
