1. Overview
1.1 Background
Gradient-domain processing, including techniques like Poisson blending, offers a powerful approach for seamless image editing tasks such as blending, tone-mapping, and non-photorealistic rendering. The core concept leverages the human visual system's sensitivity to gradients over absolute intensities, allowing for the seamless integration of objects or textures from a source image into a target image without noticeable seams. Poisson blending, in particular, formulates this as a least squares problem that aims to preserve the source image's gradients within the target context, effectively minimizing the perceptual difference without altering the background pixels. This method underlines the broader potential of gradient-domain manipulations in achieving visually coherent image synthesis by focusing on gradient preservation over direct pixel intensity matching.
1.2 Objective
The project's objective is to systematically explore gradient-domain processing through four key components: starting with a "toy problem" that focuses on reconstructing a grayscale image from its gradients, moving to Poisson blending for seamless integration of objects or textures between images, advancing to mixed gradients for improved blending by leveraging the best gradients from both source and target, and concluding with an application in converting color images to grayscale while preserving the image's gradient structure for perceptual integrity.
1.3 Approach
1.3 Approach
Poisson blending in essence takes on a mathematical strategy that focuses on a least squares optimization problem to facilitate gradient-domain processing. For the initial 'toy problem', it constructs a system aiming to minimize the discrepancy between the gradients of adjacent pixels, which lays the groundwork for gradient-based image reconstruction. This foundational step is crucial for grasping the impact of gradients on image perception.
In Poisson blending, the approach evolves to minimize the squared difference between the gradients of the source and target images within the blend area. The objective function formulated for this purpose is:
\( \min_v \{ \sum_{i \in S, j \in N(i) \cap S} ((v_i - v_j) - (s_i - s_j))^2 + \sum_{i \in S, j \in N(i) \cap \neg S} ((v_i - t_j) - (s_i - s_j))^2 \} \)
where S is the source region, N(i) the neighbors of pixel i, s the source, and t the target image. This formulation ensures the gradient flow from the source is preserved in the target, minimizing seam visibility.
For mixed gradients, the project adjusts the equations to selectively use gradients from the source or target based on their magnitude, aiming for an optimal blend. In color-to-grayscale conversion, it modifies the optimization to keep the color image's gradient structure in the grayscale result, thus maintaining the original's visual essence.
Numerical methods, particularly linear least squares solutions with tools like numpy.linalg.lstsq, are employed to solve these optimization challenges, enabling precise and efficient gradient manipulation across different image processing tasks.
2. Implementation
2.1 Toy Problem
The toy problem in this context is a simplified version of gradient domain processing. The goal is to reconstruct an image `v` from the x and y gradients of a source image `s`, while minimizing the difference between the gradients of `v` and `s`. This is achieved by solving a least squares problem. The objectives are to minimize the square of the difference between the x-gradients of `v` and `s`, and the y-gradients of `v` and `s`. Additionally, the top left corners of the two images should be the same color. If the solution is correct, the original image should be recovered.

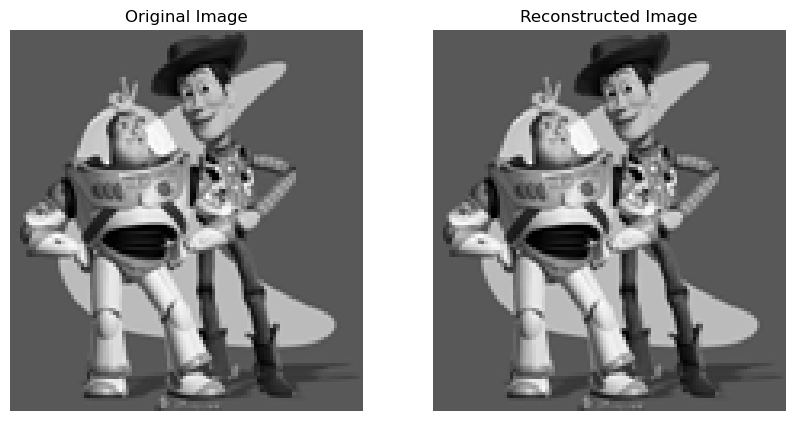

The implementation begins by writing the objective function as a set of least squares constraints in the standard matrix form: `(Av-b)^2`. Here, `A` is a sparse matrix, `v` are the variables to be solved, and `b` is a known vector. A matrix `im2var` is created to map each pixel to a variable number. The objectives are then written as constraints and added to the matrices `A` and `b`. To solve for `v`, numpy’s linear algebra solving capabilities are used. The solved values are then copied to the appropriate pixel in the output image. The result is a reconstructed image that closely matches the original, demonstrating the successful implementation of the toy problem.
2.2 Poisson Blending
The problem of Poisson blending involves selecting source and target regions, transforming the source image to correspond with the target region, and solving the blending constraints. The blending constraints are defined as a minimization problem where the goal is to minimize the difference between the source and target images. The source region should contain the entire object and ideally, the background of the object in the source region and the surrounding area of the target region will be of similar color. After solving the blending constraints, the solved values are copied into the target image. For RGB images, each channel is processed separately. The process should result in at least three Poisson blended images.
The implementation of Poisson blending involves defining a function `poisson_blend` that takes a foreground image, a mask, and a background image as inputs. The function first checks and adjusts the shape of the input images. It then reshapes the images and mask into flat arrays for processing. A sparse matrix `A` and a vector `b` are created to hold the blending constraints. The function then iterates over the mask, adding constraints to `A` and `b` for each pixel in the mask. The constraints are then solved using the least squares method, and the solution is copied into the result image. The result image is then reshaped back into its original dimensions and returned.

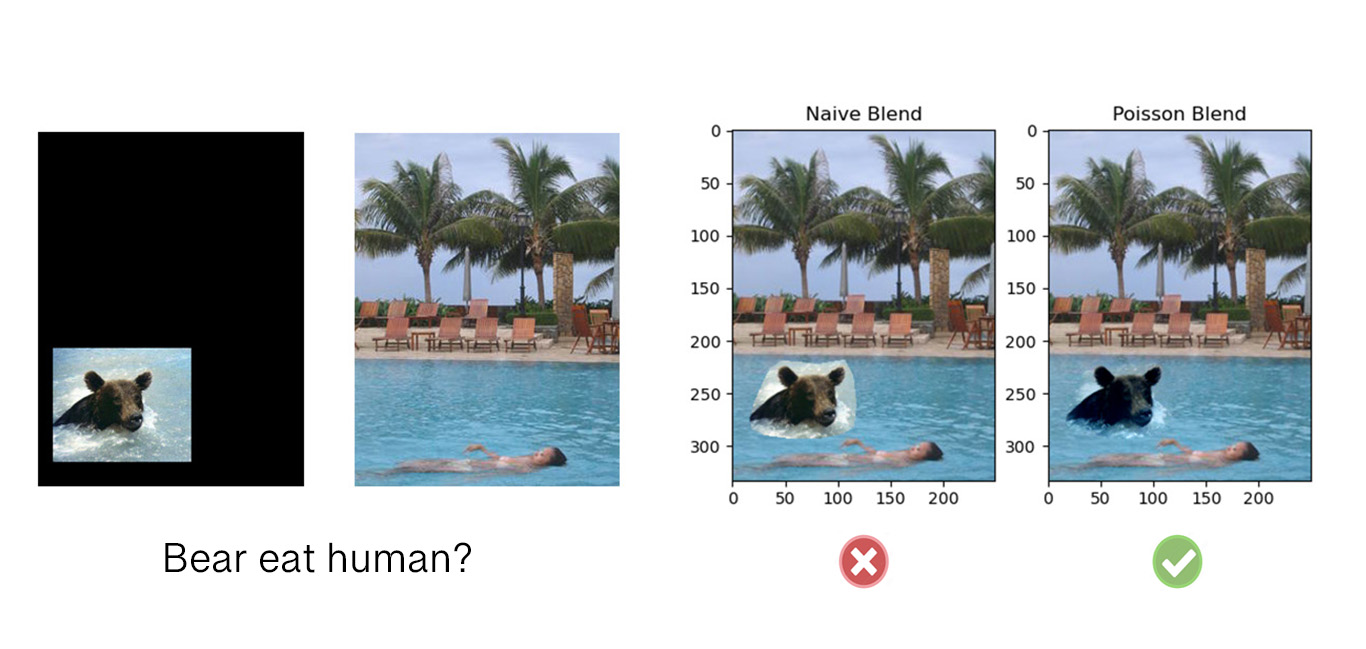

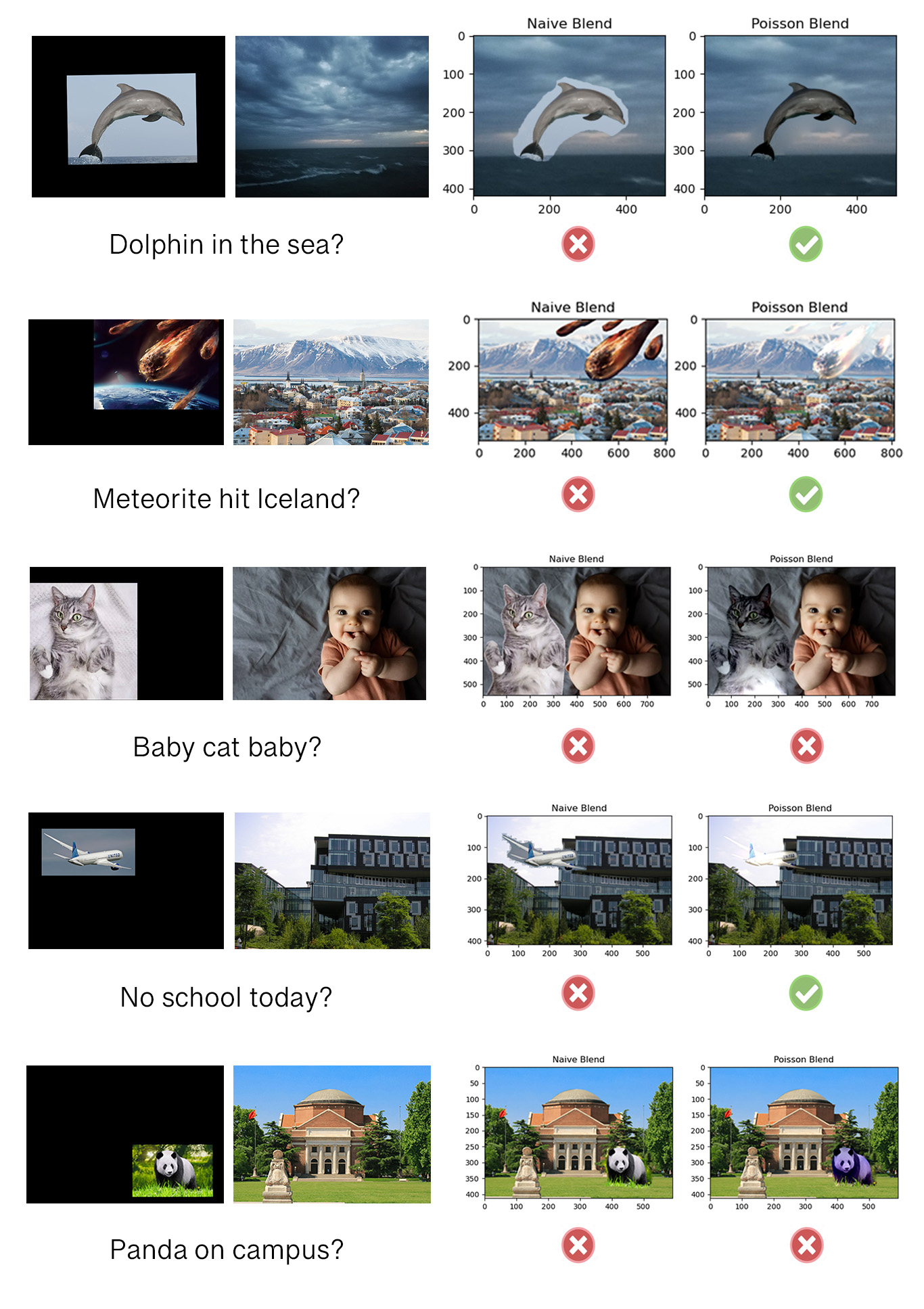

The Poisson blending technique, as applied in this project, demonstrates its potential through the seamless integration of disparate elements into various backgrounds, with a focus on maintaining gradient continuity for a naturalistic result. The method is particularly successful in cases where the source and target images have similar color gradients and intensity levels. This is well-illustrated in the examples of "Dolphin in the sea?", "Meteorite hit Iceland?", and "No school today?" where the blended objects harmoniously align with their new environments, showing no discernible boundaries. In these instances, the Poisson blending excels, as the gradient information from the source is skillfully combined with the target, ensuring that the objects do not appear out of place. However, the method does encounter challenges. In the "Baby cat baby?" blend, the significant contrast in lightness between the source and target images results in a transparency effect on the cat, which undermines the solidity expected of the object in the scene. Similarly, the "Panda on campus?" blend showcases a limitation of the technique when dealing with color gradients that vastly differ. The orange hues of the cathedral's background inadvertently bleed into the panda, resulting in an unnatural purple tint, suggesting that the algorithm could benefit from refinement in handling strongly contrasting colors.
In summary, Poisson blending proves to be an effective tool for image manipulation when the conditions are favorable, particularly when dealing with consistent gradient fields and color intensities. The technique is robust against variations in texture, provided the transitions between source and target gradients are smooth and the elements are well-matched in scale and perspective. However, careful selection of source and target regions is essential to avoid artifacts caused by high contrast and color disparity, which can detract from the realism and object integrity in the final blended image.
2.3 Mixed Gradients
For this bonus Bells and Whistles, the goal is to use mixed gradients in Poisson blending. Mixed gradients involve using the gradient with the larger magnitude from either the source or target as the guide, rather than just the source gradient. This is represented by the equation \( \boldsymbol{v} = \arg\min_{\boldsymbol{v}} \sum_{i \in S, j \in N_i \cap S} ((v_i - v_j) - d_{ij})^2 + \sum_{i \in S, j \in N_i \cap \neg S}((v_i - t_j) - d_{ij})^2 \) where “\(d_{ij}\)” is the value of the gradient from the source or the target image with larger magnitude. This is determined by the condition: if \( \text{abs}(s_i - s_j) \geq \text{abs} (t_i - t_j) \), then \( d_ij = s_i - s_j \), else \( d_ij = t_i - t_j \).

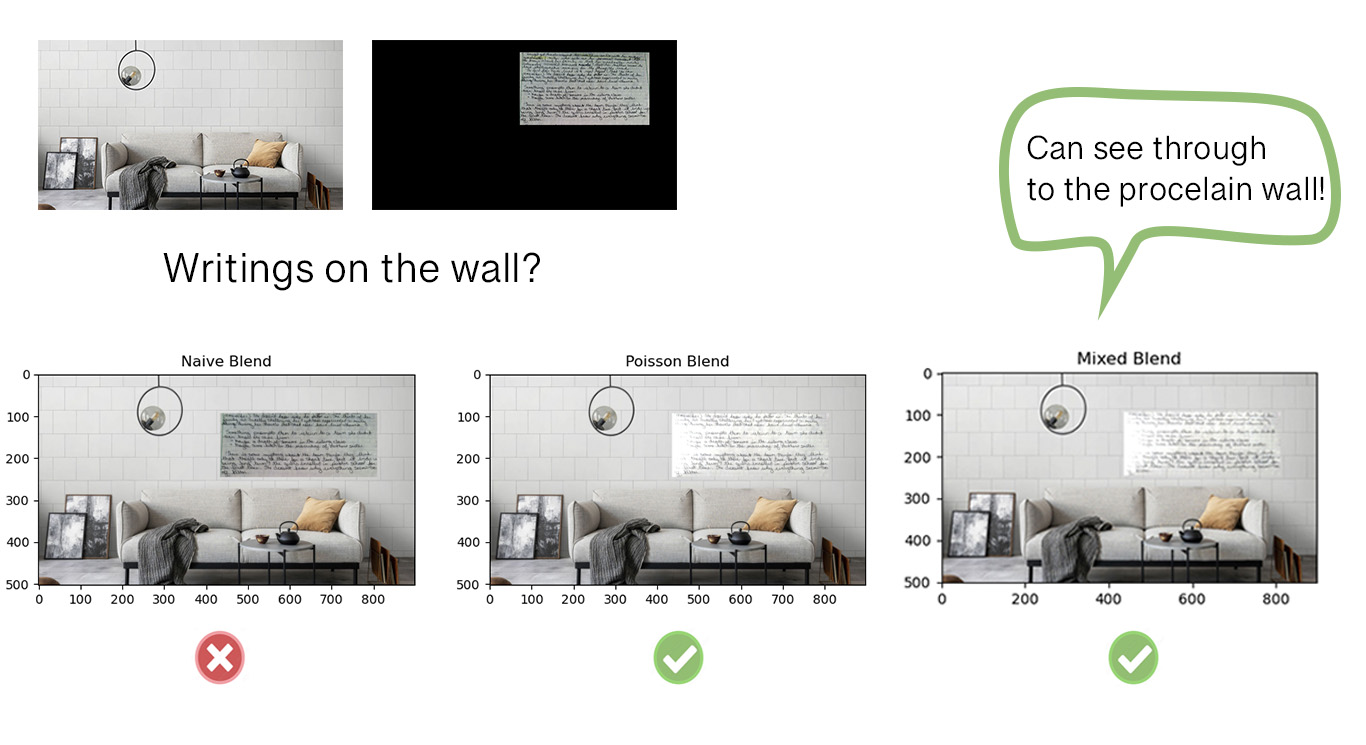

The results of employing mixed gradients demonstrate an enhanced ability to retain background texture, particularly in scenarios where the background gradient is more pronounced than the foreground gradient. This is exemplified in the "writings on wall" case, where the subtle details of the porcelain wall divisions remain visible in the mixed gradient rendition, as opposed to the Poisson gradient version, which tends to obscure these finer elements.
2.4 Color2Gray

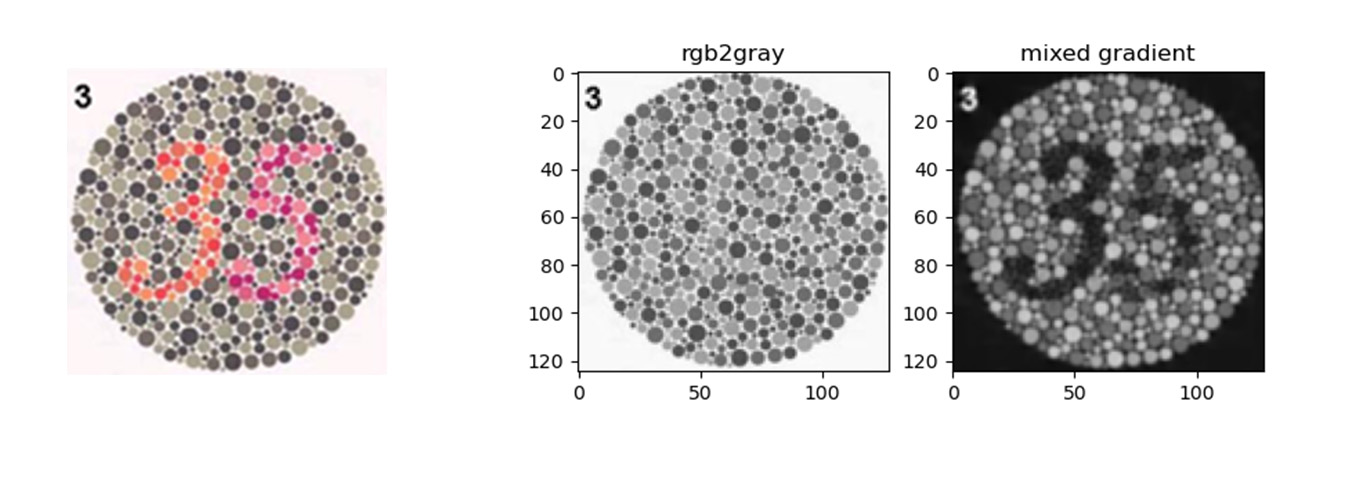

The task is to convert a color image to grayscale in a way that preserves the contrast information from the original image. This is a tone-mapping problem, similar to converting HDR images to RGB displays. The goal is to create a grayscale image that maintains similar contrast to the original RGB image while having similar intensity to the output of a standard rgb2gray conversion.
The implementation strategy starts with converting the RGB image to the HSV color space and extracting the Value channel. Gradients of the Value channel are computed using the Sobel operator. A system of equations is then built based on these gradients. For each pixel in the Value channel, two equations are added to the system: one for the vertical gradient and one for the horizontal gradient. The system of equations is then solved using the least squares method. The solution is reshaped into the shape of the Value channel to create the new grayscale image. Finally, the new image is normalized to the range [0, 255] and returned.
