Multidimensional Arrays, 2D Arrays, Specifically

The C Language supports multidimensional arrays. I don't know if there is a hard limit in the standard, or a practical limit adopted by the compiler -- but, in practice, you can have as many dimensions as you'd like.

The syntax of the eclaration of a multidimensional array is probably pretty unsurprising. It is basically an extension of the syntax for a one-dimensional array:

  int numbers[10];              /* a one-dimensional array */
  char names[10][100];          /* a two-dimensional array */
  unsigned int cube[10][10][10]; /* a three dimensional array */

And, once declared, the values are accessed exactly as one might expect:

  strcpy (names[5], "Greg"); /* 'Greg\0' is stored into the array at row 5 */
  names[5][0] = 'G';
  names[5][1] = 'r';
  names[5][2] = 'e';
  names[5][3] = 'g';
  names[5][4] = '\0';
  cube[2][4][6] = 17;

So, how are multi-dimensional arrays represented within memory? When this question was asked, some folks suggested as arrays of pointers to arrays (of pointers to arrays, of pointers to arrays...). And, this approach could work. But, it isn't actually what C does.

And, there are a few reasons for this. The first one is that managing a data structure that complicated is a bit much for a language feature, especially in a language designed to be as "close to the ground" as C. If arrays were to be implemented that way, especially in a "low high-level language" like C, they'd be implemented in a library, not as a first-class language feature. Second, implementing arrays like that would almost certainly require some form of garbage collection, something C doesn't otherwise have. A call to free() woudl have to do more than free the one pointer it was given -- it would have to play chase. This would be a case of making the comon case slow to support the exception. And the third, which you'll take a closer look at in 15-213, is that scattering arrays in memory, rather than keeping them close together, could, especially for smaller arrays, hurt memory performance.

So, what C really needs to do to keep things fast and simple is to project a multi-dimensional array into a one-dimensionaly memory. And, this is exactly what it does. We'll take a look at the case of a two-dimensional array. But, it extends to higher dimensions, too.

We project a two-dimensional array into a one dimensional array by taking it apart row-by-row or column-by-column. We then place these parts, either rows or columns, next to each other in memory. When we keep rows intact, and place rows, whole, next to each other in memory, this is call row-major ordering. When we break apart the rows, in order to keep the columns intact, and place the columns next to each other in memory, we call this column-major ordering.

Most compilers use row-major ordering. There is no rule about this. But, as it turns out, memory performs better if you use the vectorization that most closely matches the way the data is used. In other words, if the user of the data is most likely to move left-to-right through rows, row-major ordering will perform better than column-major ordering. If, however, the user is more likely to charge up or down columns than across rows, column-major ordering is likely to lead to better memory performance. The reason for this has to do with the way cache memory is managed within the system. You'll learn all about this, and even do some optimization by hand, in 15-213.

Regardless, as it turns out, the most common case of arrays with more than one dimension is arrays with two dimensions. And, when it comes to to dimensional arrays they are more often traversed across ross than up or down columns. As a result, most comilers use row-major ordering.

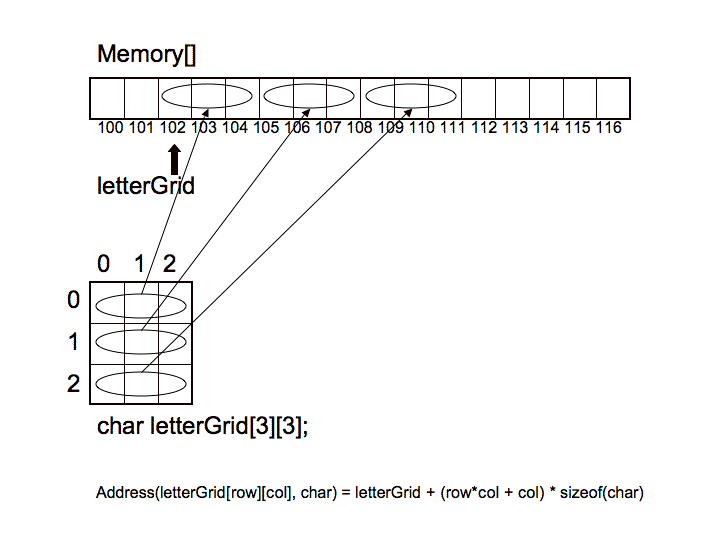

So, let's take a look at the projection of a two-dimensional array into one-dimensional memory using row-major ordering:

Notice how the 2D array was projected into memory. Take specific note of the formula used to perform the projection:

  Address(arrayStart, elementType, #rows, row, col) = arrayStart + (row*#cols + col)*sizeof(elementType)

If we think about it, this formula makes sense because we first move to the beginning of the correct row, by skipping over prior rows, each of which has the prescribed number of columns, and then by moving forward to the correct offset, the correct column position, within the desired row. This is, of course, done in one computation and therefor in constant time. The complexity of the computation is linear with respect to the number of dimensions.

Formatted File Input and Output

For our purposes, C has two forms of file I/O: formatted and low-level. Today we'll talk about formatted I/O. Soon, we'll learn about low-level I/O. But, especially for those of you coming from Java, you'l find that both are very refreshing. They are simple, to the point, and all-around a pleasure to use.

In C, as in many other languages and environments, interaction with the file system is with a logical representation of a file, sometimes known as a file handle. C uses a session-based model. Under this model, a file-handle is associated with a particular file and then continues to be associated with this file until the association is explicitly broken. During the time that the session is open, it can maintain some infomration about the state of the file and its use.

With respect to formatted I/O, the file handle is a so-called file pointer declared as, FILE *. An fopen() establishes the session by allocating the FILE object and associating it with the poiner. An fclose() ends the session and frees the actual FILE object.

In between the fopen() and fclose() calls, the file pointer can be used to access the file. We'll explore more of the library a bit later this semester, but for right now, we'll look at three functions:

fopen(), fclose(), fputs(), fgets()

Let's begin with a simple example that illustrates the opening and closing of two files, one for input and one for output, as well as the reading and writing of strings using fgets() and fputs().

In the example, pay particular attention to the second argument to the fopen(). It describes the "mode" in which the file is intended to be used. This mode includes some combination of the characters "r", "w", "a", and "+". An "r" means "allow reading", whereas a "w" means "allow writing". An "a" is short for "append". In other words an that you'll be writing, but want to pick up at the end of the file -- and don't want to be allowed to overwrite any portion of the file once it is written. This can be used, for example, for logging.

As you use a file, the operating system keeps track of your current position, sometimes known as the offset into the file. As you might imagine, when a file is opened for reading, it is normally set up so that you begin reading form the beginning of the file and work down the file as you read. By contrast, when a file is opened for appending, it i set up so that the offset is at the end of the file. If a file is opened for writing, it is assumed that you'll be overwriting data, so the file offset is set to the beginning of the file and the file, if it already exists, is truncated.

If a "+" is present, the file is opened for reading and writing. The only difference between an "r+" and a "w+" is that a "w+", like a "w" will create the file if it doesn't already exist and a "r+" will not. An "a+' is a weird mode where the file will be created if it doesn't already exist, and the offset is set to the end of the file, and writes always occur at the end of the file -- but reads can occur anywhere.

I've seen files opened "rw", and it seems to do the right thing. But, in a technical sense, it does leave open the questions "Should the initial offset be 0 or the end of the file?" and, "Is 'wr' any different?" Perhaps the Right Thing is to use one of the canonical, and more descriptive modes, eh? For example, "r+" or "w+".

Now, let's take a look at the first part of the example:

  #include <stdio.h>

  int main() {

    FILE *fpi;
    FILE *fpo;

    char data[256];

    fpi = fopen ("input.txt", "r");
    fpo = fopen ("output.txt", "w");

    ...

  }

fgets() reads a string from a file. It uses a line-oriented model and tries to read an entire line from a file into one string, blank spaces and all. It accepts not only a poiner to the sttring character array, but also the size of the array, so that it can avoid overflowing the array if the line is too long for the space provided.

Since fgets() does nothing to eliminate the newline characters that normally terminate lines, the last character of the string is usually a newline "\n". But there are two cases where this isn't be the case:

futs() writes a string to a file. It does not add a newline. So, if you want a newline -- append it to the end of the string before writing or with a subsequent fputs(), or the like.

So, let's take a look at the rest of the example:

  #include <stdio.h>
  #include <ctype.h>

  int main() {

    FILE *fpi;
    FILE *fpo;

    char data[256];

    /* Open the files */
    fpi = fopen ("input.txt", "r");
    fpo = fopen ("output.txt", "w");

    /* Read a line from the input file */
    fgets (data, 256, fpi);

    /* Remove the newline by replacing it with a null-character
    /* It is worth noting that there is allready a null-character
     * after the newline, but replacing the newline with another
     * null-character cuts the string one spot shorter.
     */
    data[strlen(data)-1] = '\0';

    /* Write the string, less the newline to the output file */
    fputs (data, fpo);

    /* close both files */
    fclose (fpi);
    fclose (fpo);

    return 0;
  }

fprintf() and fscanf()

fprintf() works just like printf(), but the output goes to a file. fscanf() reads input, as does fgets(), but it parses the input and tries to match it against a format string provided. A scanf() format string uses the same notation as a printf() format string, which you'll recall from AWK. We're not going to go into tremendous detail. Please type "man scanf" or "man 3 scanf" from a terminal window or console for more details.

One important thing to note is that scanf() takes the ADDRESS of the variable, not the variable itself. This should make sense if you think back to our swap example -- it actually needs to change the variable's value. But, also recal that arrays, by nature, are addresses, so the &-address-operator is defined to do nothing and is, as a consequence, unnecessary.

Important note: Forgetting the &-ampersand before arguments to fscanf() is a very common and very dangerous error. fscanf() will assume whatever variable happens to be passed in contains an address -- and will try to write to that address. If it isn't writable a SEGV or BUS error will occur. If it is writeable -- corruption will occur!

Here's a really quick example:

  #include <stdio.h>
  #include <ctype.h>

  int main() {

    FILE *fpi;
    FILE *fpo;

    int number1, number2, number3;

    char word1[256];
    char word2[256];
    char word3[256];

    char words[3][256];

    /* Open the files */
    fpi = fopen ("input.txt", "r");
    fpo = fopen ("output.txt", "w");

    /* Read three words from the input file */
    fscanf (fpi, "%s %s %s\n", word1, word2, word3);

    /* Another example using an array */
    fscanf (fpi, "%s %s %s\n", words[0], words[1], words[2]);

    /* Read three ints (%i, int, or %d, decimal number) from the input file */
    fscanf (fpi, "%d %d %d\n", &number1, &number2, &number3);


    /* Write 'Hi Mom!' to a file */
    fprintf (fpo, "%s\n", "Hi Mom");

    /* Close both files */
    fclose (fpi);
    fclose (fpo);

    return 0;
  }

About stdin, stdout, and stderr

Each C program automatically has three file handles open for it: stdin, stdout and stderr. The handle "stdin" is ties to the "keyboard" and "stdout" is ties to the screen. The other one, "stderr" is usually also tied to the screen, but can be tied to anotehr device, such as a printer, log file, or error console.

Think about printf(). It is nothign more than an fprintf() where the file handle is "stdout". The following are equivalent:

  printf ("Hi mom!\n");
  fprintf (stdout, "Hi mom!\n");

So, you shouldn't be surprised that there also exists a scanf(), and that it is equivalent to a fscanf() on stdin. By exmaple, the following are equivalent:

  scanf ("%f", &floatNumber);
  fscanf (stdin, "%f", &floatNumber);

There are, as it turns out puts() and gets() functions, but they differ slightly from fputs() and fgets(), as follows:

Dynamic Memory

We've talked a lot this semester about variables, pointers, and memory. But, there is one bridge that we haven't crossed. What if we don't know what we need until after the program is running. For a trivial example, imagine that we want to sort a list of numbers supplied by the user -- we'll need to create array after the program starts running and can get the user input. We can't allocate that array at compile-time because it isn't known and might change from run to run. Or, for those of you who might happen to be familiar with linked lists -- we generally create the nodes as we go.

Solving this type of problem is dynamic memory -- memory that can be allocated and freed as needed. In java, we did it by instantiating objects via the "new" operator and releasing references to them such that Java could "garbage" collect them.

C's version of "new" is a libary function called malloc(), short for "memory allocate". Unlike Java, C is not garbage collected, so we'll need to explicitly free() memory once we are done.

In order to ask for memory, we just tell malloc() how much we'll need and cast it to the right pointer type. When we free memory, we pass the pointer to free() and it deallocates the space. We'll also set the poiner to NULL. This will cause an error if we try to re-use it after freeing it -- which is a somewhat common error more.

Here are a few examples:

  #include <stdio.h>
  #include <string.h>
  #include <stdlib.h>

  int main  () {

    int *number;
    float  *tenFloats;
    char *word;

    number = (int *) malloc (sizeof(int));
    *number = 5;

    tenFloats = (float *) malloc (10 * sizeof(int));
    tenFloats[5] = 4.7;

    word = (char *) malloc (5);
    strcpy (word, "Greg");

    free (number);
    number = NULL;

    free (tenFloats);
    number = NULL;

    free (word);
    number = NULL;

    return 0;
  }

In addition to malloc(), there is a convenience function, calloc(). It is short for "clear and allocate". It zeros the memory before giving it to us. This raises an interestng point. Any even half-decent general purpose operating system will zero memory before allowing a program to have it -- this is the only way to prevent one program's old data from being read by another program. But, the memory we get from malloc() isn't necessarily zeroed. This is for two reasons.

Embedded systems, and other types of specialized systems may not have privacy concerns -- so they may not zero the memory. And, when we call free(), the memory almost never actually gets returned to the OS. Instead the "user level memory allocator", otherwise known as the "malloc library" that is part of our program gets it back. The next time we ask for memory, it can slice it, and dice it, and give it back. And, since programs most often initialize memory to values before using it, malloc()s don't usually bother to zero it.

So, calloc() zeros it for us, should we choose to use it instead of malloc(). It also does the multiply for us, taking the number of elements and the size of each element as two separate arguments:

  int *numbers = (int *) malloc(100*sizeof(int));
  memset (number, 0, 100*sizeof(int));

  int *numbers = (int *) calloc(100, sizeof(int));

Memory: A Quick Review, Plus the Heap

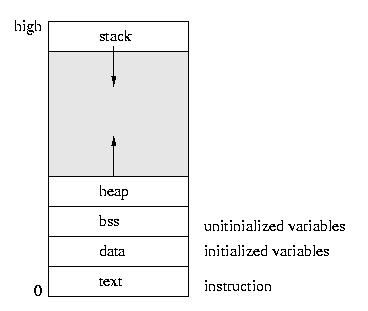

The figure below shows a summary of a computer's memory. Notice the "stack" that grows downward. Recall that this is where the "automatic" variables, arguments, and other "per call" function state is stored. We "push" the stack frames with this information onto the stack (at the bottom) when a function is called -- and "pop" it off upon the function's return.

At the very bottom of the picture are the things we read in from the executible file: the program code, itself (the "text") and initialized global and "static local" variables. Above that are those variables that live as long as the program, but that are not statically initialized, also including global and "static local" variables.

Above that is the "heap". It grows in the opposite direction as the stack. The "user level memory allocator", a.k.a. malloc, gets its memory from the heap via system call, brk(). This call asks the operating system to adjust the "brk point", the dividing line between the heap and the unallocated space above. By "raising the brk point", malloc can get more memory that it can then use to satisfy malloc() and calloc() calls.

When this memory is freed, it goes back to malloc, which can then give it back later on to satisfy anotehr request. Although in theory malloc could "lower the brk point" and give memory back to the OS, this almost never happens. As you'll learn in 213, malloc consists of some data structure, usually a series of lists, which keep track of the free space. Since memory is allocated and freed in an arbitrary order in arbitrary amounts, it is time consuming to coalesce these small pieces back into whole pages, and even then, only rarely is the top one completely free -- and so, these days, it is hardly worth the effort. It wastes processor with no real gain. to c

Memory Errors

We'll talk a lot more about memory-related programming mistakes. But, for now, I just want to identify a few of the really big ones:

For now, let me suggest that, although there are some tools that can help to find these problems, the best solution is to program in ways that minimize the exposure -- defensive programming. We'll talk about those as the semester rolls on. For now, let me make a few quick suggestions, just to give you a small taste of the flavor:
