Fracture Formation Around Three 2.2 mm Cryosurgical Probes
|
|
|
Cryoprobe tube diameter = 1.3 mm Beaker diameter = 85 mm Two freezing periods separated by a 10 seconds interval of no liquid nitrogen flow. Elapsed time in is shown on each photo (min:sec)
|
|
|
Period I: Liquid nitrogen flow started at 00:00
|

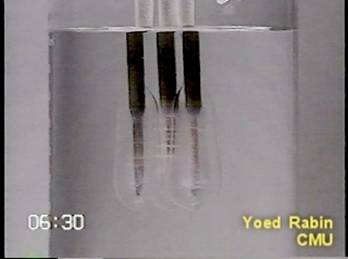

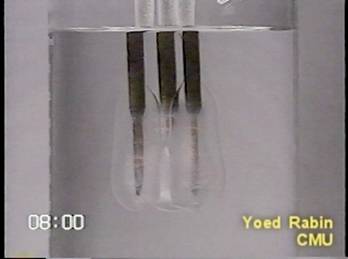

Period I: Liquid nitrogen flow continues
|
|
Period I: Liquid nitrogen flow stopped at 10:00
|

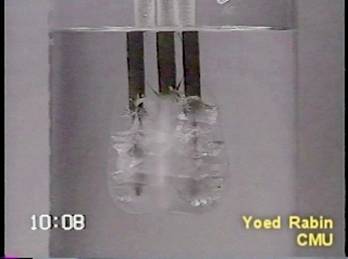

Period I: Liquid nitrogen flow stopped at 10:00
|
|

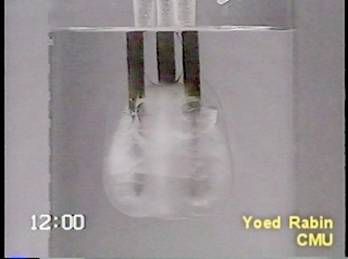

Period II: Liquid nitrogen flow restarted at 10:10
|

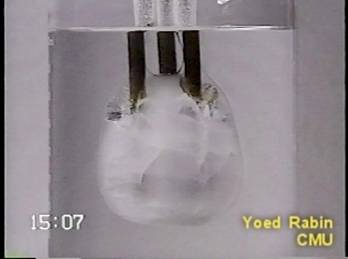

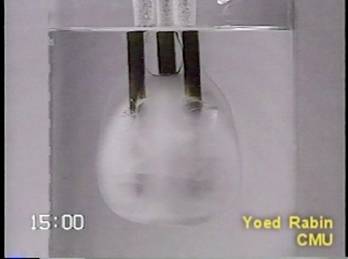

Period II: Liquid nitrogen flow stopped at 15:00
|
|

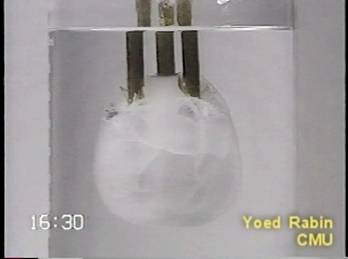

Period II: Liquid nitrogen flow stopped at 15:00
|
Period II: Liquid nitrogen flow stopped at 15:00
|
