Fracture Formation Around A 1.3 mm Cryosurgical Probe with Thermal Insulation
|
|
|
Cryoprobe tube diameter = 1.3 mm Beaker diameter = 65 mm Four freezing periods separated by 10 sec intervals of no liquid nitrogen flow. Elapsed time in is shown on each photo (min:sec)
|
|
|

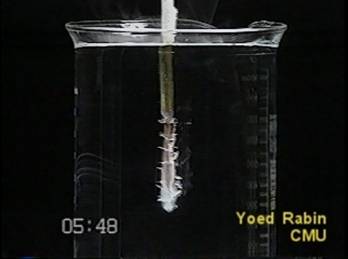

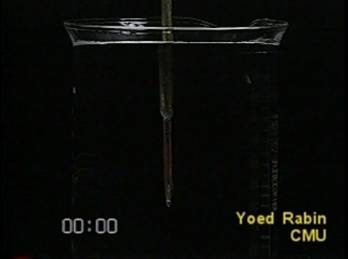

Period I: Liquid nitrogen flow started
|

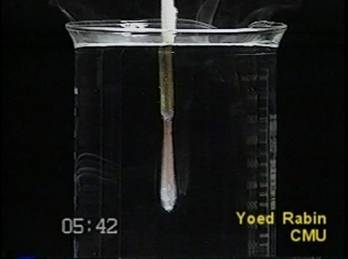

Period I: Liquid nitrogen flow stopped at 5:40
|
|
Period I: Liquid nitrogen flow stopped at 5:40
|

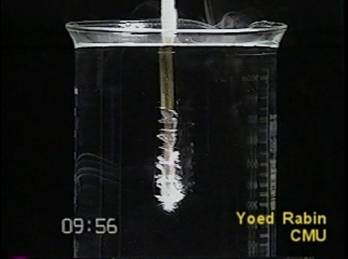

Period II: Liquid nitrogen flow restarted at 5:50
|
|

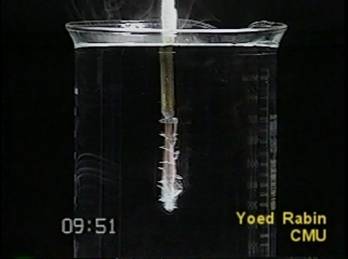

Period II: Liquid nitrogen flow stopped at 9:51
|
Period II: Liquid nitrogen flow stopped at 9:51
|
|

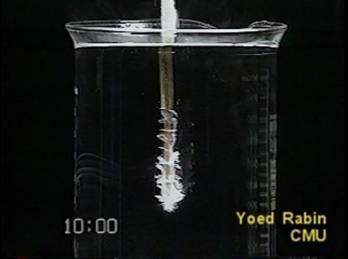

Period III: Liquid nitrogen flow restarted at 10:00
|

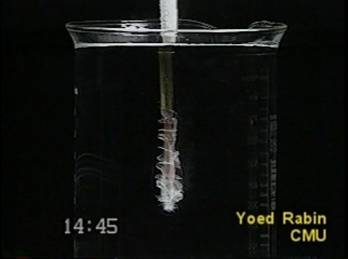

Period III: Liquid nitrogen flow stopped at 14:45
|
|
Period IV: Liquid nitrogen flow restarted at 14:55
|

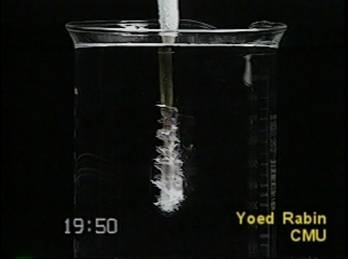

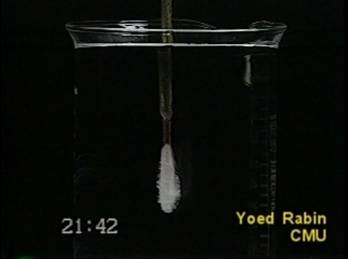

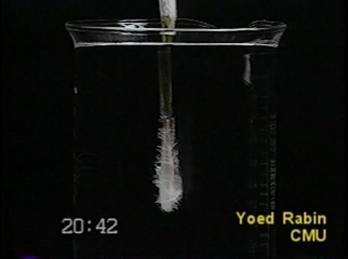

Period IV: Liquid nitrogen flow stopped at 19:42
|
|
Period IV: Liquid nitrogen flow stopped at 19:42
|
Period IV: Liquid nitrogen flow stopped at 19:42
|
|
Period IV: Liquid nitrogen flow stopped at 19:42
|
Period IV: Liquid nitrogen flow stopped at 19:42
|
