Tetrahedral Finite Element Meshing for Bio-Molecules





The following contains applications of our tetrahedral meshing scheme [1, 2] for mouse acetylcholinesterase (mAChE) and a tetramer AChE (mAChE_4) which consists of four mAChE subunits.





1. mAChE

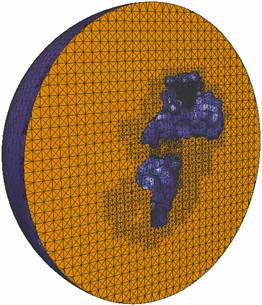

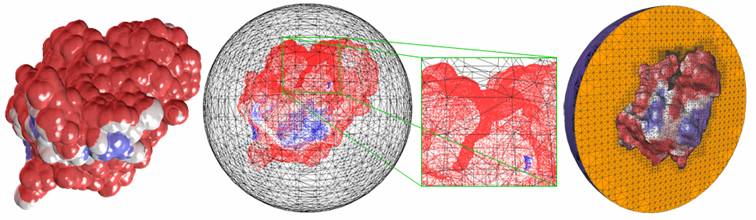

Figure 1: The molecular surface is extracted from solvent accessibility data with an isovalue 0.5. The color shows the distribution of the electrostatic potential over the molecular surface (red is negative, blue positive, and white neutral). The meshing is adaptive, and finer around the active gorge area.  The solvent accessibility and electrostatic potential data were generated by N. Baker et. al.





2. mAChE_4

















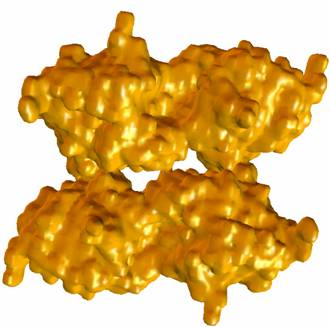

Figure 2: Adaptive finite element tetrahedral meshes for a mAChE_4 molecular surface. The molecular surface is extracted from a solvent accessibility map (257^3), of C. Bajaj et.al, with an  isovalue of 1.0.

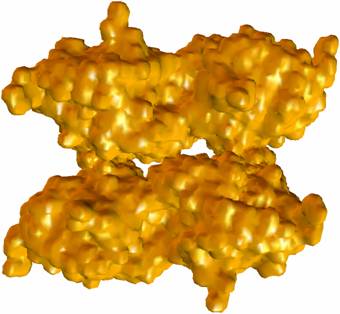

Figure 3: Adaptive finite element mesh of a mAChE_4 molecular surface. The molecular surface is extracted from the solvent accessibility map of   Nathan Baker, David Zhang et al (449^3), with an isovalue 0.5.







3. Problems:



(1) We found three small components at the Left_Top corner, which are perhaps spurious hetatms. The pqr file could be corrected.

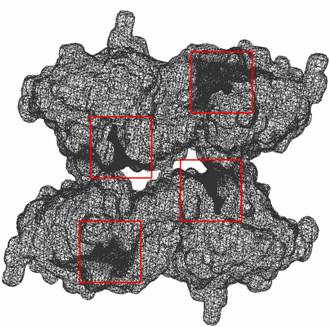

Figure 4: The visualizations are generated   from our Volume Rover and our LBIE Mesh generation software.

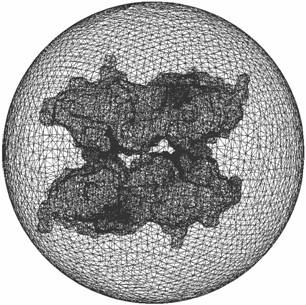

(2) For the current mesh, our chosen bounding sphere for a 513^3 accessibility map, part of the molecular surface is outside the bounding sphere. We shall enlarge the bounding sphere for the exterior tetrahedral mesh, or regenerate a little smaller dataset.



Figure 5: The molecular surface and an outer sphere within 513^3 cube.

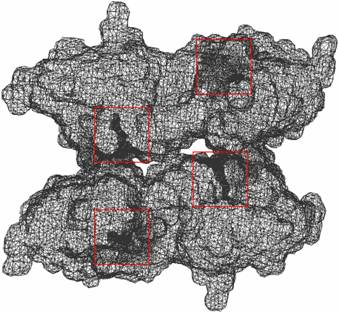

(3) We also tried half-resolution data of 449^3 solvent accessibility data. The four gorges of mAChE_4 can be reconstructed and adaptively meshed, with almost the same topology (minor local modification is done in postprocessing the mesh, and similar to what we did for mAChE and papers [3, 4]).
