Homework #3 Sample Solution
Note: As with the Homework #1 sample, this sample was created with System Architect, a rather expensive and cruddy (but UML compliant) CASE tool available on some CCS-maintained Andrew machines. If you can't get Softera (also pretty cruddy) to work on your machine at home, you might want to give this a try. I know for a fact that it's available on the first three rows of the cluster in Cyert Hall.

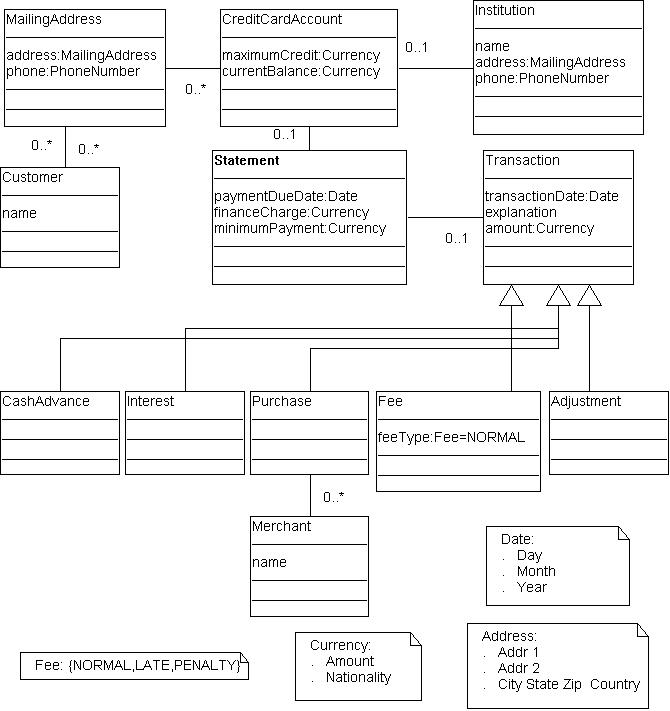

Problem #1: Adding domains to the model given in figure E2.1 in the book

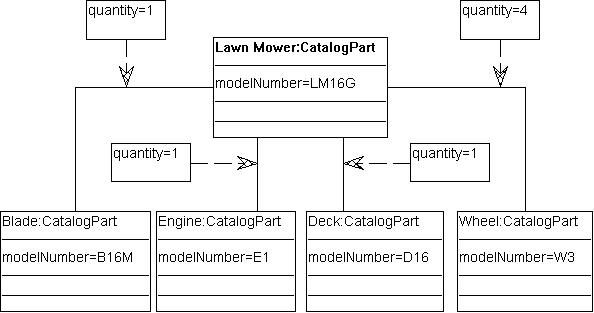

Problem #2: Showing catalog aggregation for the lawnmower assumbly in Figure 3.16


Problem #3: Adjusting the management diagram to accomodate Matrix management
