Fluid #1: Flow Over a Flat Plate



Introduction: In this example you will solve for the air flow velocity for flow over the flat plate, based on the specified velocity, pressure boundary conditions, and the plate dimensions.



Physical Problem: Compute and plot the velocity distribution of a flow of air over a flat plate.



Problem Description:

bullet

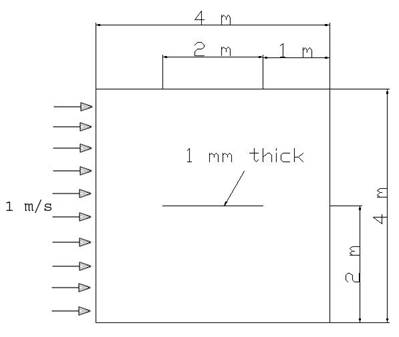

The dimensions of the plate are as shown in the figure.

bullet

Objective:
bullet

To plot the velocity profile around the plate.

bullet

You are required to hand in print outs for the above.

bullet

Dimensions:
bullet

The plate is 2 m long and is very thin.  ANSYS does not allow infinitesimally thin models so the plate is given a thickness of 0.001 m

bullet

The plate is situated within a 4 m square.  This arbitrary size serves to set up the boundary conditions of air traveling over the plate.

bullet

The velocity of the air at infinite distance from the plate is 2 m/s.

bullet

Atmospheric pressure is assumed on all faces except the face where velocity is input into the system.



bullet

Material Properties (Air):
bullet

Density D=1.23 kg/m3

bullet

Viscosity ρ = 1.79E-5 N-s/m2



bullet

Figure:





bullet

Create the larger area, then the area defining the plate.

bullet

Subtract the smaller area from the larger plate.

bullet

 Define the Element Properties as a 2D Air ElementDefine the Material Properties of the Air Element (Density and Viscosity are the important qualities)

bullet

Mesh the plate with a mesh size of 0.01 on the edges of the inner plate, and 0.2 on the edges of the outer plate.

bullet

Apply Boundary Conditions (No Slip along the edges of the inner plate, velocity along the left line of the large plate, and Atmospheric Pressure (P=0 in ANSYS) along the top, right and bottom lines of the large plate.

bullet

Iterate 400 times and solve. (Ideally the iteration count would be at least several thousand times to make sure that the solution converges… but computational time dictates that in order to be able to solve the problem in a reasonable amount of time, the iteration number should be trimmed down to 400)

bullet

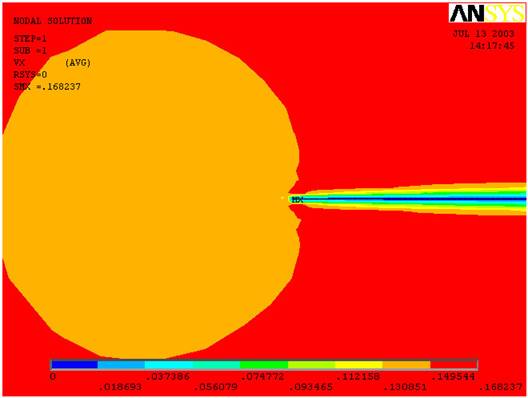

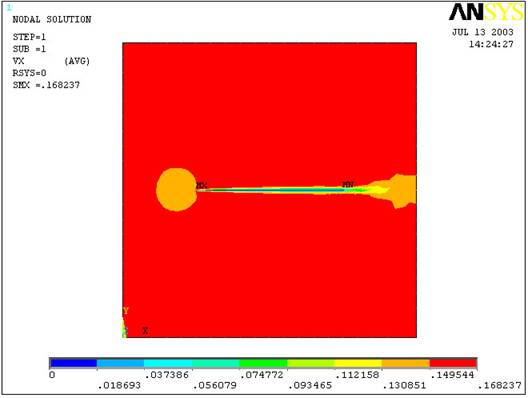

Plotting the Velocity distribution in the X direction, this is the answer you should obtain with 400 iterations:
