5. Generate a Solution

SOLUTION -> Analysis Type

ANALYSIS TYPE -> New Analysis

Click on Static

Then,

SOLUTION -> Solve

SOLVE -> Current LS

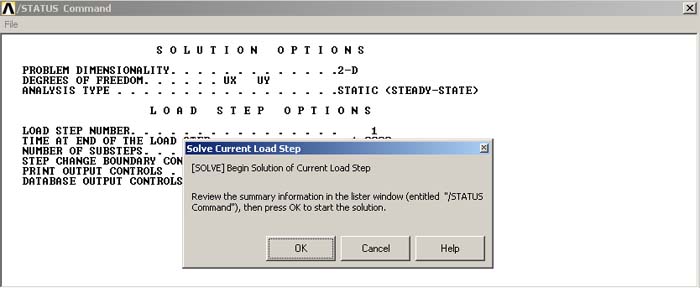

Click on Current LS and the following window will appear.



Click OK.

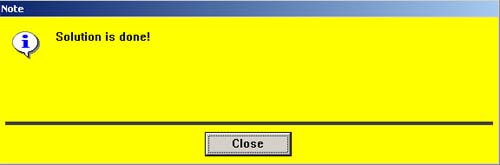

Then the Note window will appear.



Click on Close

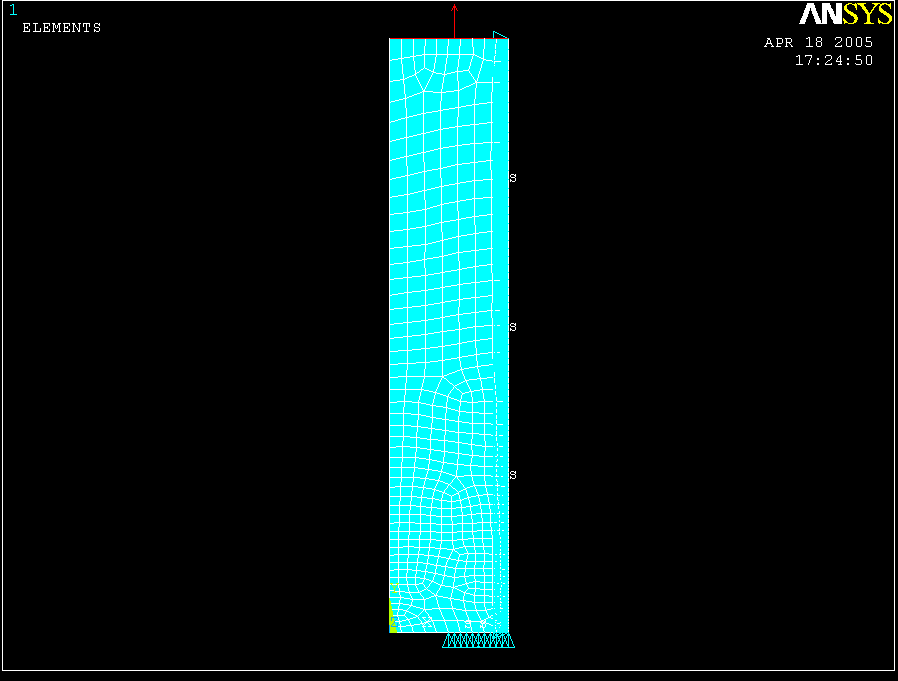

After ANSYS finished solving, the screen should look similar to the figure below.

GO TO STEP 6
